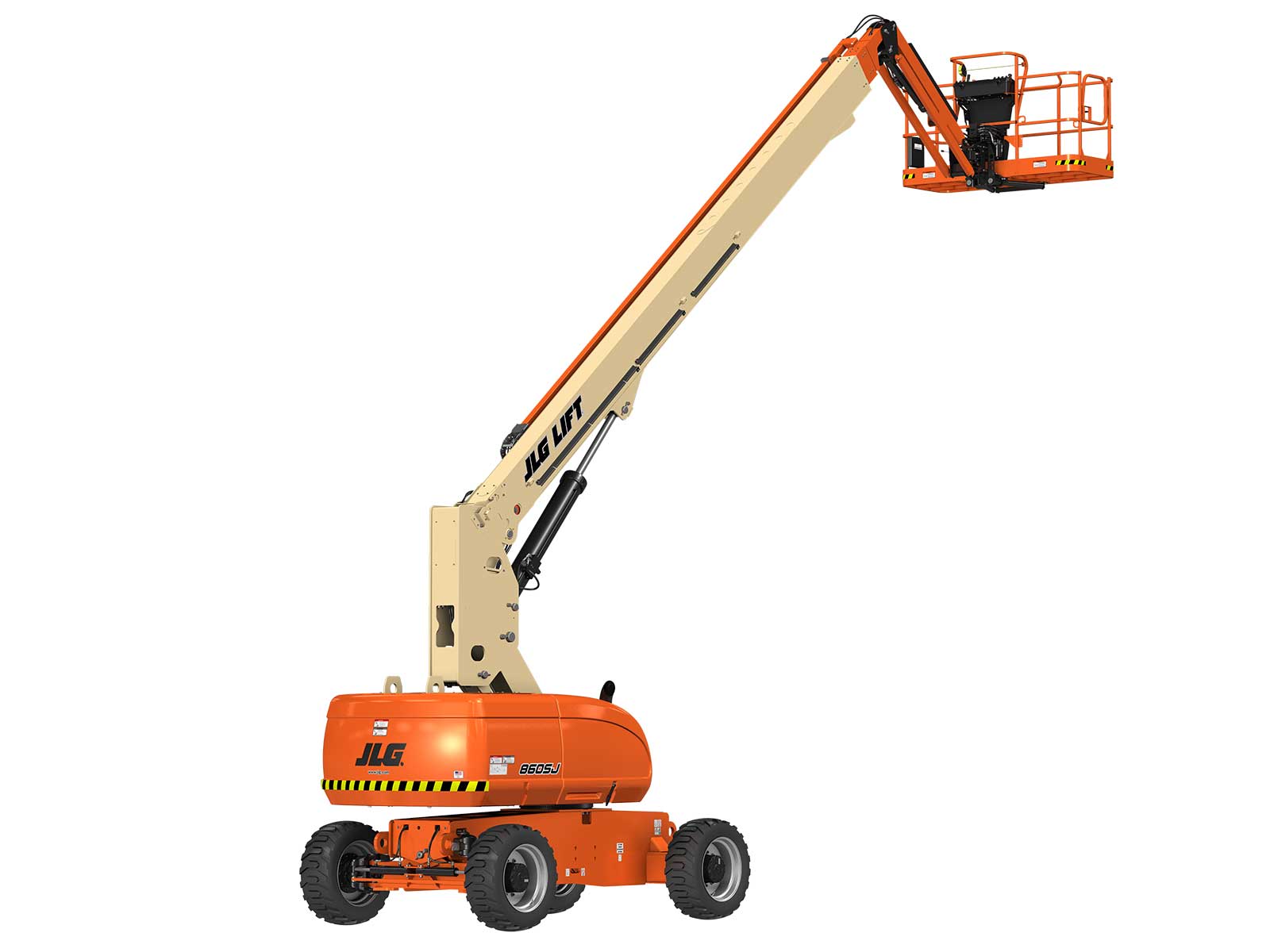

Aerial - Telescopic Boom

Working Height: 22.31 m (73 ft 2 in)

Platform Height: 20.31 m (66 ft 8 in)

Horizontal Reach: 17.30 m (56 ft 9 in)

Up-and-Over Clearance: N/A (Telescopic design)

Platform Capacity (Unrestricted): 230 kg (500 lbs)

Platform Capacity (Restricted): 340 kg (750 lbs)

Jib Range of Articulation: 130° (+75°, −55°)

Platform Rotation: 180° hydraulic

Turntable Rotation: 360° continuous

Drive Speed (Stowed): 6.8 km/h (4.2 mph)

Gradeability: 45 %

Machine Weight: 13,426 kg (≈ 29,600 lbs)

Fuel Tank Capacity: 151 L (40 gal)

Power Source: Diesel engine – Tier 4 Final compliant

Stowed Dimensions:
 • Length: 10.21 m (33 ft 6 in)
 • Width: 2.49 m (8 ft 2 in)
 • Height: 2.57 m (8 ft 5 in)

Units available for immediate rental across Saudi Arabia and the GCC

Maintained under Dayim’s preventive maintenance program

Fully inspected, tested, and certified before each hire

Supported by Dayim’s 24/7 logistics, technical, and service teams

Offered for short-term, long-term, and project-based rental contracts

Construction and building maintenance

Oil & Gas and industrial facility access

Bridge and infrastructure work

Power plant and refinery operations

Telecommunications and tower maintenance

Event and high-access rigging installations

Working Height: 28.21 m (92 ft 7 in)

Platform Height: 26.21 m (86 ft)

Horizontal Reach: 22.86 m (75 ft)

Up-and-Over Clearance: N/A (Telescopic design)

Platform Capacity (Unrestricted): 230 kg (500 lbs)

Platform Capacity (Restricted): 450 kg (1,000 lbs)

Jib Range of Articulation: 130° (+75°, −55°)

Platform Rotation: 180° hydraulic

Turntable Rotation: 360° continuous

Drive Speed (Stowed): 5.6 km/h (3.5 mph)

Gradeability: 45 %

Machine Weight: 17,236 kg (≈ 38,000 lbs)

Fuel Tank Capacity: 151 L (40 gal)

Power Source: Diesel engine – Tier 4 Final compliant

Stowed Dimensions:
 • Length: 12.19 m (40 ft)
 • Width: 2.49 m (8 ft 2 in)
 • Height: 2.80 m (9 ft 2 in)

Units available for immediate rental across Saudi Arabia and the GCC

Maintained under Dayim’s preventive maintenance program

Inspected, tested, and certified before each hire

Supported by Dayim’s 24/7 service, logistics, and technical teams

Offered for short-term, long-term, and project-based rental contracts

Construction and structural installation

Oil & Gas and industrial facility access

Power plant and refinery maintenance

Event rigging and overhead lighting setups

Telecommunications and high-access operations

Bridge and infrastructure inspection or repair

Working Height: 38.73 m (127 ft 2 in)

Platform Height: 36.73 m (120 ft 6 in)

Horizontal Reach: 23.55 m (77 ft 3 in)

Up-and-Over Clearance: N/A (Telescopic design)

Platform Capacity (Restricted): 450 kg (1,000 lbs)

Platform Capacity (Unrestricted): 230 kg (500 lbs)

Jib Range of Articulation: 130° (+75°, −55°)

Platform Rotation: 180° hydraulic

Turntable Rotation: 360° continuous

Drive Speed (Stowed): 4.8 km/h (3.0 mph)

Gradeability: 45 %

Machine Weight: 18,570 kg (≈ 40,940 lbs)

Fuel Tank Capacity: 151 L (40 gal)

Power Source: Diesel engine – Tier 4 Final compliant

Stowed Dimensions:
 • Length: 12.19 m (40 ft)
 • Width: 2.49 m (8 ft 2 in)
 • Height: 2.80 m (9 ft 2 in)

Units available for immediate rental across Saudi Arabia and the GCC

Maintained under Dayim’s preventive maintenance program

Inspected, tested, and certified before each hire

Supported by Dayim’s 24/7 service, logistics, and technical teams

Offered for short-term, long-term, and project-based rental contracts

Construction and structural installation

Industrial and plant maintenance

Oil & Gas and refinery operations

Bridge, port, and infrastructure works

Event rigging, lighting, and access setups

Wind turbine and high-elevation servicing

Working Height: 43.30 m (142 ft)

Platform Height: 41.15 m (135 ft)

Horizontal Reach: 24.38 m (80 ft)

Platform Capacity (Restricted): 450 kg (1,000 lbs)

Platform Capacity (Unrestricted): 230 kg (500 lbs)

Jib Range of Articulation: 120° (+75°, −45°)

Platform Rotation: 180° hydraulic

Turntable Rotation: 360° continuous

Drive Speed (Stowed): 4.5 km/h (2.8 mph)

Gradeability: 45 %

Machine Weight: 20,366 kg (≈ 44,900 lbs)

Fuel Tank Capacity: 151 L (40 gal)

Power Source: Diesel engine – Tier 4 Final

Stowed Dimensions:
 • Length: 12.19 m (40 ft)
 • Width: 2.49 m (8 ft 2 in)
 • Height: 3.05 m (10 ft)

Units available for immediate rental across Saudi Arabia and the GCC

Maintained under Dayim’s preventive maintenance program

Inspected, tested, and certified before every hire

Fully supported by Dayim’s 24/7 logistics, service, and technical teams

Available for short-term, long-term, and project-based rental contracts

Construction and structural steel installation

Oil & Gas and refinery access operations

Bridge, power plant, and utility maintenance

Event rigging and lighting installation

Telecommunications and high-access worksites

Wind turbine and elevated infrastructure servicing

Working Height: 47.72 m (156 ft 11 in)

Horizontal Reach: 24.38 m (80 ft)

Platform Height: 45.72 m (150 ft)

Platform Capacity (Restricted): 450 kg (1,000 lbs)

Platform Capacity (Unrestricted): 230 kg (500 lbs)

Platform Size: 0.91 m × 2.44 m (3 ft × 8 ft)

Jib Range of Articulation: 120° (+75°, −45°)

Platform Rotation: 180° hydraulic

Turntable Rotation: 360° continuous

Drive Speed (Stowed): 4.5 km/h (2.8 mph)

Gradeability: 45 %

Machine Weight: 22,271 kg (≈ 49,100 lbs)

Fuel Tank Capacity: 151 L (40 gal)

Power Source: Diesel engine – Tier 4 Final

Stowed Dimensions:
 • Length: 14.17 m (46 ft 6 in)
 • Width: 2.49 m (8 ft 2 in)
 • Height: 3.05 m (10 ft)

Units available for immediate rental across Saudi Arabia and the GCC

Maintained under Dayim’s preventive maintenance program

Fully inspected, tested, and certified prior to each hire

Supported by Dayim’s 24/7 service, logistics, and technical teams

Offered for short-term, long-term, and project-based rental contracts

High-rise construction and structural work

Industrial maintenance and facility access

Petrochemical and refinery operations

Bridge and infrastructure projects

Large-scale event staging and lighting setups

Wind turbine and tower servicing

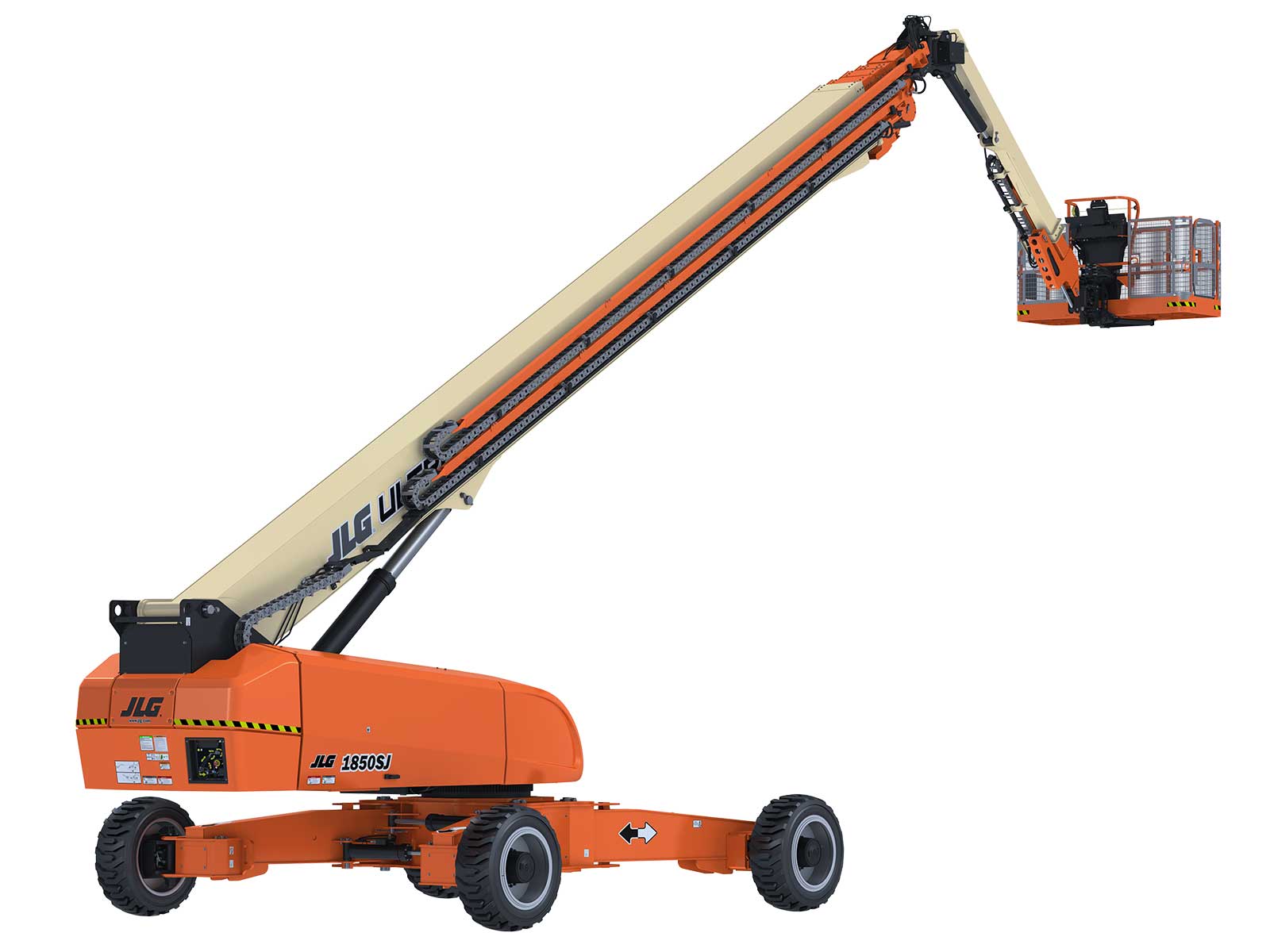

Working Height: 56.56 m (185 ft 7 in)

Horizontal Reach: 24.38 m (80 ft 0 in)

Below-Ground Reach: 1.47 m (4 ft 10 in)

Platform Capacity (Restricted): 454 kg (1,000 lbs)

Platform Capacity (Unrestricted): 227 kg (500 lbs)

Jib Range of Articulation: 120° (+75°, −45°)

Platform Rotation: 173° hydraulic

Turntable Rotation: 360° continuous

Drive Speed (Stowed): 4.5 km/h (2.8 mph)

Gradeability (4WD): 40 %

Machine Weight: ~ 27,200 kg

Fuel Tank Capacity: 200 L

Hydraulic Tank Capacity: 284 L

Stowed Dimensions:
 • Length: 14.57 m
 • Width: 2.49 m
 • Height: 3.05 m

Features:
 • Four-wheel drive and steer for excellent maneuverability
 • Drive-out extendable axles for stability and transport efficiency
 • Automatic engine control for optimized fuel economy
 • Onboard diagnostics and proportional joystick controls

Units available for immediate rental across Saudi Arabia and the GCC

Maintained under Dayim’s preventive maintenance program

Fully inspected, tested, and certified prior to each hire

Supported by 24/7 service, logistics, and technical teams

Available for short-term, long-term, and project-based rental contracts

High-rise building and façade maintenance

Industrial plants and oil & gas facilities

Bridge and infrastructure works

Power and telecom tower installations

Stadium and large-event rigging or lighting setups

Wind turbine service operations
