Aerial - Diesel Scissor Lift

Description

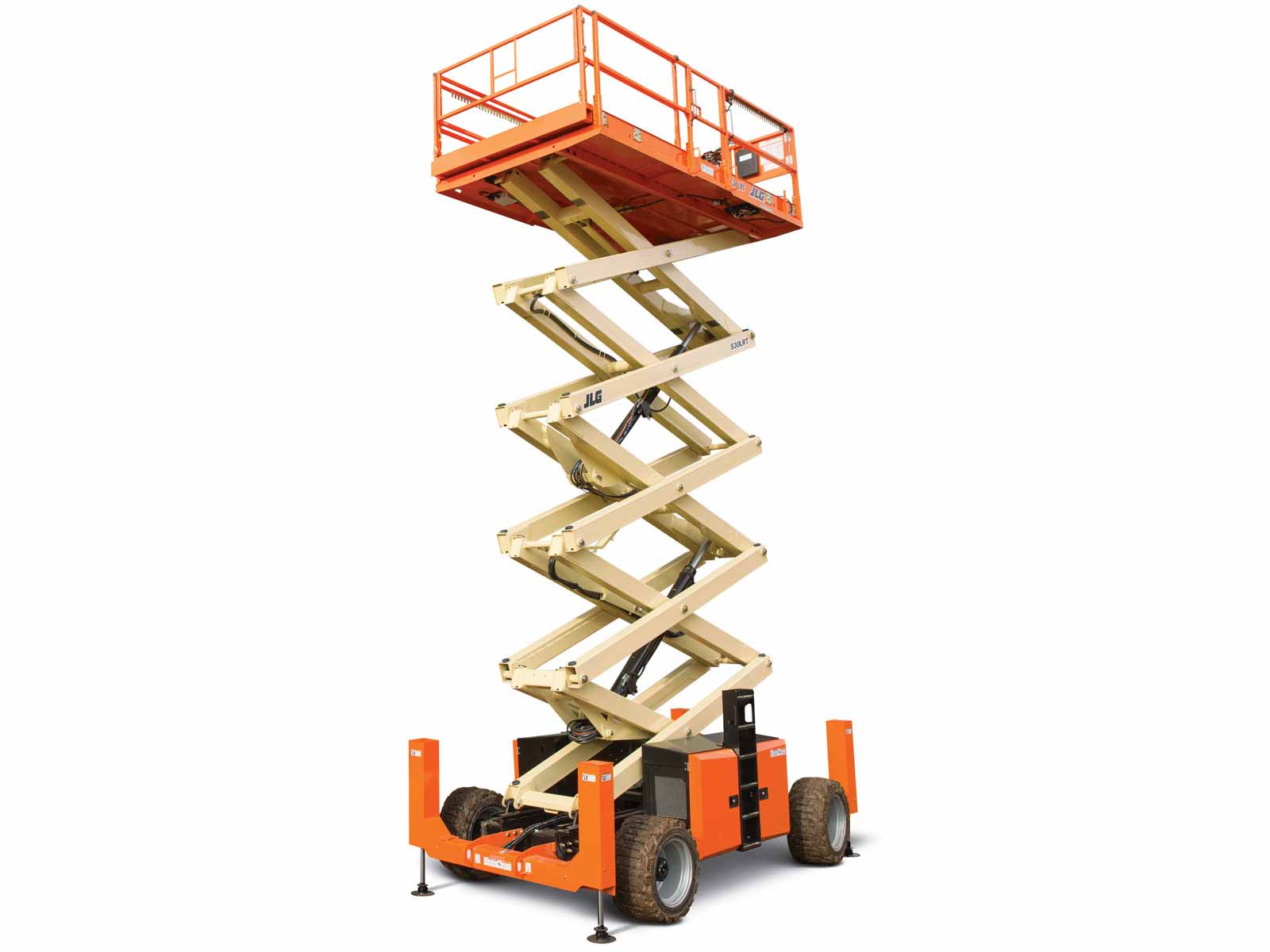

The JLG 530LRT is a diesel-powered rough-terrain scissor lift engineered for outstanding performance on uneven outdoor job sites. Combining high platform capacity, four-wheel drive, and exceptional gradeability, it delivers safe and efficient elevation for multiple operators and heavy tools—making it ideal for demanding construction and industrial applications.

Key Specifications

• Working Height: 18.15 m (59 ft 6 in)

• Platform Height: 16.15 m (53 ft)

• Platform Capacity: 680 kg (1,500 lbs)

• Platform Size (Extended): 7.38 m × 1.83 m (24 ft 3 in × 6 ft)

• Extension Deck Length: 1.22 m (4 ft) each side

• Drive Speed (Stowed): 6.4 km/h (4.0 mph)

• Drive Speed (Raised): 0.8 km/h (0.5 mph)

• Gradeability: 45 %

• Power Source: Diesel engine – Kubota V2403

• Fuel Tank Capacity: 75 L (19.8 gal)

• Hydraulic System Capacity: 100 L (26.4 gal)

• Machine Weight: 7,302 kg (≈ 16,100 lbs)

• Outrigger Leveling Capability: 12° front-to-rear / 10° side-to-side

• Stowed Dimensions:
   • Length: 4.88 m (16 ft)
   • Width: 2.29 m (7 ft 6 in)
   • Height (Rails Folded): 2.03 m (6 ft 8 in)

Availability & Readiness

• Units available for immediate rental across Saudi Arabia and the GCC

• Maintained under Dayim’s preventive maintenance program

• Inspected, tested, and certified prior to deployment

• Supported by Dayim’s 24/7 logistics, service, and technical teams

• Available for short-term, long-term, and project-based rental contracts

Applications

• Structural and construction work at height

• Façade and glazing installation

• Industrial facility maintenance

• Oil & Gas and power generation plants

• Large-scale event or stadium setups

• Electrical and mechanical works on elevated sites
