Aerial - Specialist Spider Lift

Description

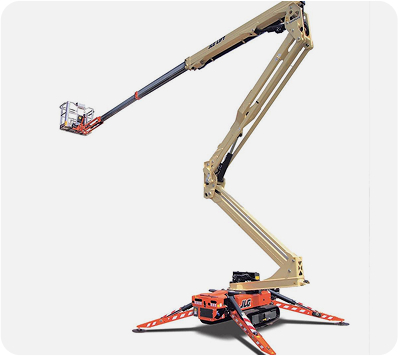

The JLG X17J / X17J Plus is a compact, tracked (crawler) articulating boom lift built for navigating tight access zones, slopes, and difficult terrain. Its hybrid (electric/diesel) propulsion and narrow footprint make it suitable for indoor/outdoor use, with superior maneuverability and reliability in both exposed and sensitive environments.

Key Specifications

• Working Height: ~ 16.96 m

• Platform Height: ~ 14.96 m

• Horizontal Reach: ~ 7.65 m

• Up-and-Over Clearance: ~ 7.80 m

• Platform Capacity (Unrestricted): 230 kg

• Platform Size: 0.69 m × 1.34 m

• Stowed Width (with platform): ~ 1.48 m

• Machine Weight: ~ 2,230 kg

• Gradeability: ~ 28 %

• Maximum Operating Slope: ~ 16°

• Maximum Approach / Depart Angles: ~ 20°

• Rotation / Swing: 360° non-continuous turntable

• Jib Length / Articulation: ~ 1.68 m, ±89° articulation

• Width of Undercarriage (Retracted / Extended): ~ 0.79 m / 1.09 m

• Drive / Power Options: Electric motor option, petrol or diesel engine option (varies by model)

• Other Features:
   • Auto-levelling outriggers
   • Proportional hydraulic controls
   • Slide bar rear entry
   • Forklift pockets
   • Powered track extension / retraction
   • SkyGuard-control protection

Availability & Readiness

• Units available for immediate rental across Saudi Arabia and the GCC

• Maintained under Dayim’s preventive maintenance schedule

• Fully inspected, tested, and certified before hire

• Supported by Dayim’s 24/7 technical, logistics, and service teams

• Offered under short-term, long-term, and project-based contracts

Applications

• Facade, cladding, and structural access in narrow zones

• Industrial, plant, and utility maintenance

• Indoor-outdoor hybrid sites requiring compact tracking

• Slope or uneven terrain sites

• Power, telecom, and tower servicing

• Event rigging and elevated installation tasks
