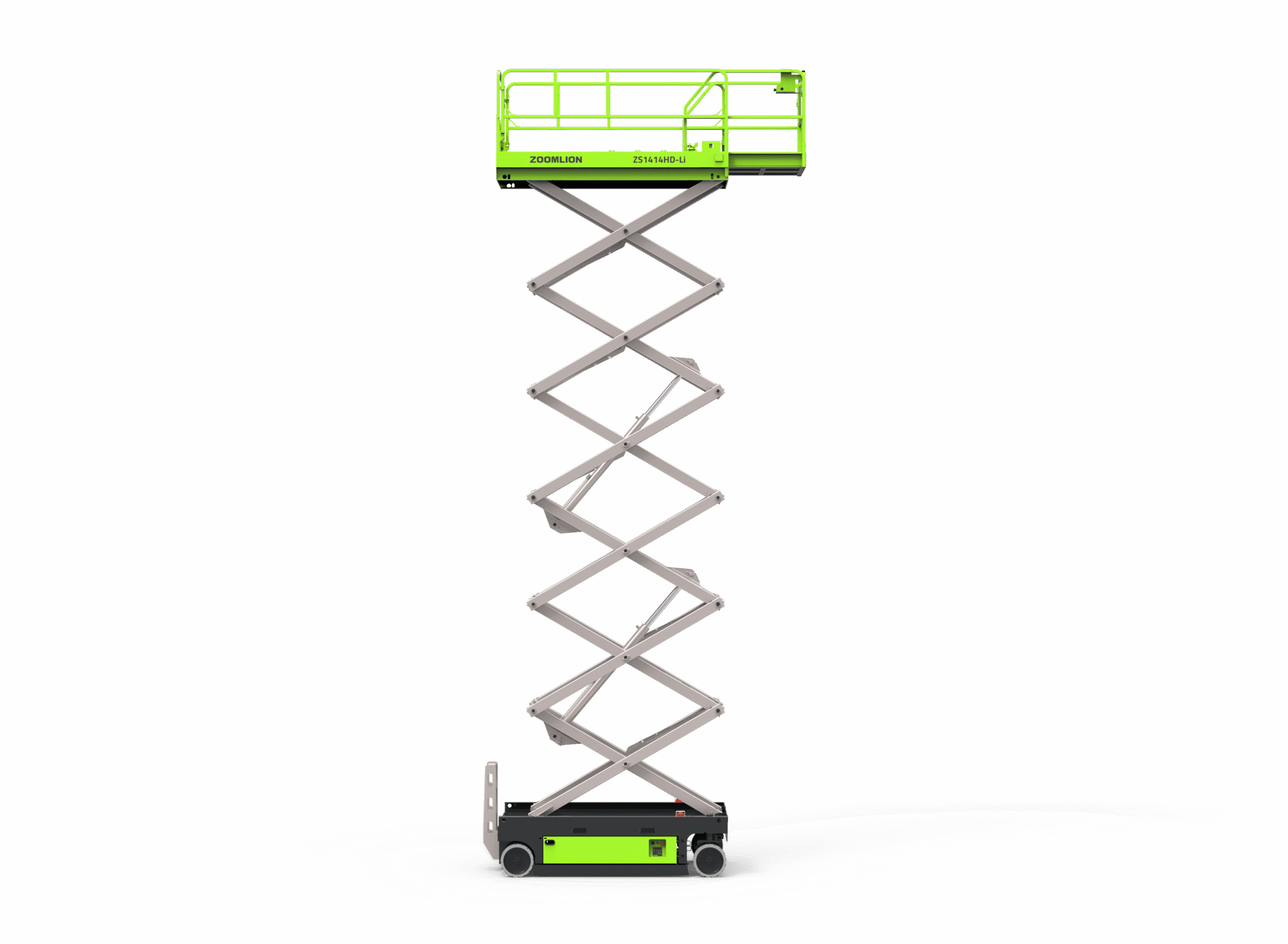

Aerial - Electric Scissor Lift

Working Height: 13.80 m (45 ft 3 in)

Platform Height: 11.80 m (38 ft 9 in)

Platform Capacity: 350 kg (770 lbs)

Extension Deck Capacity: 113 kg (250 lbs)

Platform Dimensions: 2.30 m × 1.12 m (7 ft 7 in × 3 ft 8 in)

Platform Extension: 0.91 m (3 ft)

Stowed Height (Rails Up): 2.66 m (8 ft 9 in)

Stowed Height (Rails Down): 2.00 m (6 ft 7 in)

Overall Length: 2.49 m (8 ft 2 in)

Overall Width: 1.15 m (3 ft 9 in)

Wheelbase: 1.85 m (6 ft 1 in)

Ground Clearance (Stowed / Raised): 0.11 m / 0.02 m

Drive Speed (Stowed / Raised): 3.5 km/h / 0.8 km/h

Up/Down Cycle Time: 62 s / 42 s

Gradeability: 25 %

Tire Size: Ø 381 mm × 127 mm

Battery: 24 V, Li-ion or DC configurations

Machine Weight (Gross): 2,970 kg

Units available for immediate rental across Saudi Arabia and the GCC

Maintained under Dayim’s preventive maintenance program

Inspected, tested, and certified before deployment

Supported by Dayim’s 24/7 service, logistics, and technical teams

Offered for short-term, long-term, and project-based rental contracts

Indoor warehouse, facility, and building maintenance

Exterior cladding, façade, and installation works

Retail, commercial interiors, and finishing tasks

Lighting, HVAC, electrical servicing in enclosed spaces

Work environments requiring low noise and zero emissions

Working Height: 15.70 m (51 ft 6 in)

Platform Height (Elevated): 13.70 m (44 ft 11 in)

Platform Height (Stowed): 1.54 m (5 ft 1 in)

Platform Size: 2.67 m × 1.12 m (8 ft 9 in × 3 ft 8 in)

Platform Extension: 0.91 m (3 ft)

Overall Height (Rails Up): 2.68 m (8 ft 10 in)

Overall Height (Rails Down): 2.00 m (6 ft 7 in)

Overall Length: 2.87 m (9 ft 5 in)

Overall Width: 1.40 m (4 ft 7 in)

Wheelbase: 2.22 m (7 ft 3 in)

Ground Clearance (Stowed / Raised): 0.11 m / 0.02 m

Platform Capacity: 350 kg (770 lb)

Capacity on Deck Extension: 113 kg (250 lb)

Drive Speed (Stowed): 3.5 km/h (2.2 mph)

Drive Speed (Raised): 0.8 km/h (0.5 mph)

Turning Radius (Inside / Outside): 0.1 m / 2.6 m

Up / Down Cycle Time: 88 s / 60 s

Gradeability: 25 % (14°)

Max Working Slope (Lateral / Vertical): 1.5° / 3°

Power System: 24 V / 4.5 kW drive & lift motor

Battery / Charger (Li-ion variant): 230 Ah, 24 V, charger 30 A

Machine Weight: 3,280 kg

Tire Size: Ø 381 mm × 127 mm

Units available for immediate rental across Saudi Arabia and the GCC

Maintained under Dayim’s preventive maintenance program

Fully inspected, tested, and certified prior to hire

Supported by Dayim’s 24/7 technical, logistics, and field service teams

Offered for short-term, long-term, and project-based rental contracts

Indoor facility maintenance, warehouses, workshops

Exterior facade, signage, and installation work

Events and exhibition access

Retail, commercial, and infrastructure support tasks

Environments requiring low noise and zero emissions

Elevated servicing, lighting, and MEP work
