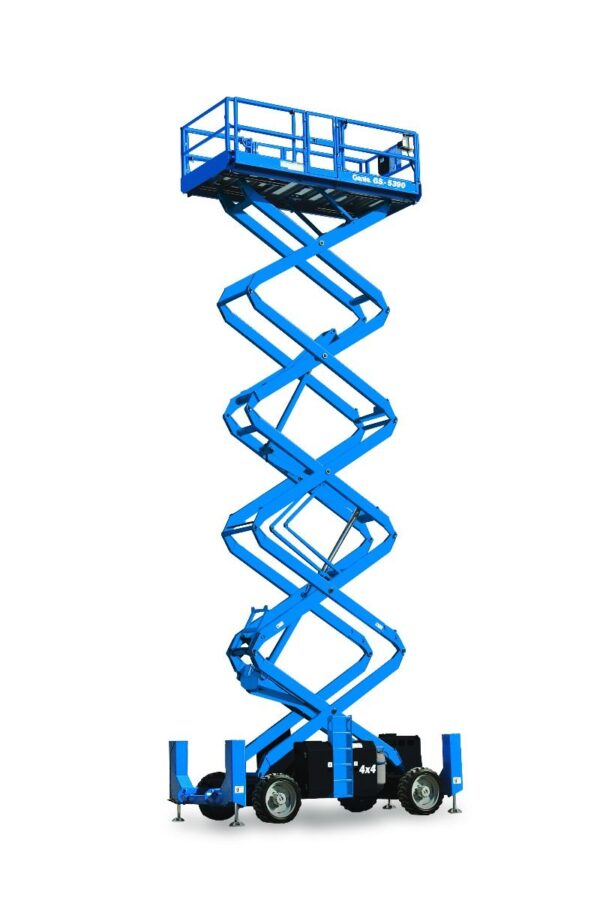

18m Genie GS-5390 RT Rough Terrain Scissor Lift

Technical Details:

Working Height:

18.15 m

Outreach:

m

Machine Width:

2.29 m

Platform Capacity:

680 kg

Dimension:

5.40 x 2.02 m

Weight:

7574 kg

Platform Size:

6.57 x 1.83 kg

- +

Product Details

Description

The Genie GS-5390 RT is a powerful rough-terrain diesel scissor lift designed for exceptional lifting capacity and stability on demanding job sites. Built for outdoor use, it offers outstanding performance on uneven surfaces with 4WD traction, hydraulic outriggers, and a large working platform—ideal for construction, cladding, and maintenance at height.


Key Specifications

  • Working Height: 18.15 m (59 ft 6 in)

  • Platform Height: 16.15 m (53 ft)

  • Platform Capacity: 680 kg (1,500 lbs)

  • Platform Size (Extended): 7.38 m × 1.83 m (24 ft 3 in × 6 ft)

  • Lift Time (Up/Down): 50 s / 43 s

  • Gradeability: 40 %

  • Drive Speed (Stowed): 8 km/h (5 mph)

  • Drive Speed (Raised): 0.8 km/h (0.5 mph)

  • Machine Weight: 7,553 kg (≈ 16,655 lbs)

  • Fuel Tank Capacity: 75 L (19.8 gal)

  • Power Source: Diesel engine – Kubota V2403

  • Hydraulic System Capacity: 100 L (26 gal)

  • Outrigger Leveling Capability: 12° front to rear / 10° side to side

  • Stowed Dimensions:
     • Length: 4.88 m (16 ft)
     • Width: 2.29 m (7 ft 6 in)
     • Height (Rails Folded): 2.03 m (6 ft 8 in)


Availability & Readiness

  • Units available for immediate rental across Saudi Arabia and the GCC

  • Maintained under Dayim’s preventive maintenance program

  • Inspected, tested, and certified prior to deployment

  • Fully supported by Dayim’s 24/7 logistics, service, and technical teams

  • Offered for short-term, long-term, and project-based rental contracts


Applications

  • Construction and structural works

  • Façade, glazing, and cladding installation

  • Industrial plant maintenance

  • Oil & Gas and power facility operations

  • Event setup and outdoor infrastructure access

  • High-elevation electrical and mechanical works
