Product Details
Description

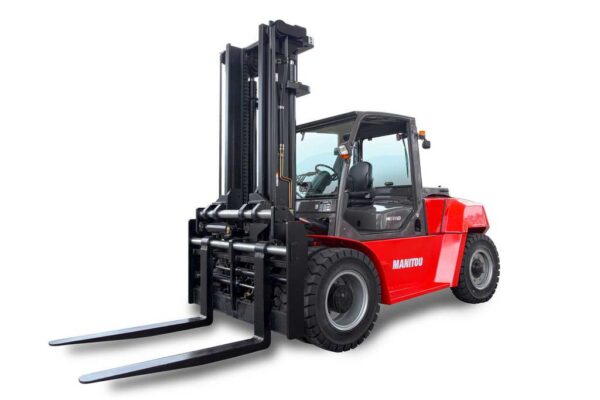

The Manitou MI-X 100 D is a heavy-duty diesel forklift designed for high-capacity material handling in demanding industrial, warehouse, and logistical settings. Engineered for strength and stability, it offers smooth performance, excellent ergonomics, and a durable construction that ensures long service life.
Key Specifications
-
Rated Capacity: 10,000 kg (≈ 22,000 lb)
-
Load Center: 600 mm
-
Engine: Cummins QSB4.5, 4-cylinder diesel
-
Engine Power: 82 kW (≈ 112 hp)
-
Travel Speed (Loaded / Unloaded): 26 / 31 km/h
-
Lifting Speed (Loaded / Unloaded): 0.32 / 0.35 m/s
-
Lowering Speed (Loaded / Unloaded): 0.45 / 0.36 m/s
-
Maximum Gradeability: 44 % (loaded)
-
Operating Weight (Unladen): 13,590 kg
-
Overall Width: 2,160 mm
-
Height of Overhead Guard: 2,580 mm
-
Turning Radius (Outside): 3,940 mm
-
Wheelbase: 2,800 mm
-
Mast Tilt (Forward / Backward): 6° / 12°
-
Ground Clearance Below Mast: 190 mm
-
Hydraulic System:
• Pressure: 195 bar
• Flow for attachments: 180 L/min
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regimen
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Heavy-duty warehouse and yard operations
-
Port and container terminal handling
-
Steel, timber, and structural material logistics
-
Infrastructure and industrial site operations
-
High-volume load stacking and transport
Description
The Manitou MXT 1740 is a powerful and reliable telehandler designed to handle heavy lifting and material placement on demanding job sites. With a high reach, excellent stability, and robust lifting capacity, it provides the versatility needed for construction, infrastructure, and industrial applications.
Key Specifications
-
Maximum Lifting Height: 17.40 m (≈ 57 ft)
-
Maximum Outreach: 13.48 m (≈ 44 ft 3 in)
-
Rated Capacity: 4,000 kg (≈ 8,818 lbs)
-
Capacity at Full Height: ≈ 2,500 kg
-
Engine Power: 70 kW / 92 hp
-
Unladen Weight: 11,275 kg (≈ 24,855 lbs)
-
Transport Dimensions:
• Length: 6.20 m
• Width: 2.38 m
• Height: 2.59 m -
Travel Speed: 28 km/h
-
Hydraulic Flow: ≈ 96 L/min
-
Steering Modes: 2-wheel, 4-wheel, and crab steering
-
Transmission: Hydrostatic with 2 forward / 2 reverse speeds
-
Outriggers: Manual vertical stabilizers
-
Tires: Standard construction profile with optional foam-filled versions
-
Frame Leveling: ± 10°
-
Turning Radius: 3.7 m (inside tires)
-
Other Features:
• Telescopic boom with quick-attach tool system
• ROPS / FOPS-certified cab with enhanced visibility
• Load moment indicator and safety cut-outs
• Heavy-duty axles for rough-terrain performance
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to deployment
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Heavy construction and infrastructure projects
-
Industrial material handling and loading
-
Equipment placement on elevated platforms or roofs
-
Warehousing and logistics operations
-
Utility and maintenance tasks in challenging terrain
Description
The Manitou MXT 1740 is a powerful and reliable telehandler designed to handle heavy lifting and material placement on demanding job sites. With a high reach, excellent stability, and robust lifting capacity, it provides the versatility needed for construction, infrastructure, and industrial applications.
Key Specifications
-
Maximum Lifting Height: 17.40 m (≈ 57 ft)
-
Maximum Outreach: 13.48 m (≈ 44 ft 3 in)
-
Rated Capacity: 4,000 kg (≈ 8,818 lbs)
-
Capacity at Full Height: ≈ 2,500 kg
-
Engine Power: 70 kW / 92 hp
-
Unladen Weight: 11,275 kg (≈ 24,855 lbs)
-
Transport Dimensions:
• Length: 6.20 m
• Width: 2.38 m
• Height: 2.59 m -
Travel Speed: 28 km/h
-
Hydraulic Flow: ≈ 96 L/min
-
Steering Modes: 2-wheel, 4-wheel, and crab steering
-
Transmission: Hydrostatic with 2 forward / 2 reverse speeds
-
Outriggers: Manual vertical stabilizers
-
Tires: Standard construction profile with optional foam-filled versions
-
Frame Leveling: ± 10°
-
Turning Radius: 3.7 m (inside tires)
-
Other Features:
• Telescopic boom with quick-attach tool system
• ROPS / FOPS-certified cab with enhanced visibility
• Load moment indicator and safety cut-outs
• Heavy-duty axles for rough-terrain performance
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to deployment
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Heavy construction and infrastructure projects
-
Industrial material handling and loading
-
Equipment placement on elevated platforms or roofs
-
Warehousing and logistics operations
-
Utility and maintenance tasks in challenging terrain
Description
The D1OS-5 is a heavy-duty, 4-wheel diesel forklift designed for high-capacity load handling in rigorous industrial and warehouse settings. It’s built with durability, stability, and operator comfort in mind—ideal for lifting, stacking, and movement of heavy loads with reliability and performance.
Key Specifications
-
Rated Capacity: 11,000 kg (11 ton)
-
Load Center: 600 mm
-
Mast Lift Height: 4.30 m (approx.)
-
Engine Type: Diesel (high-torque)
-
Travel Speed (with / without load): ~ 29 km/h
-
Lift Speed (loaded / unloaded): ~ 0.375 m/s / ~ 0.430 m/s
-
Turning Radius: ~ 4.04 m
-
Overall Width: ~ 2,350 mm
-
Length to Fork Face: ~ 4,340 mm
-
Height to Top of Overhead Guard: ~ 2,765 mm
-
Weight (Operating): Approx. 18,900 kg
-
Gradeability: ~ 28 % (loaded)
-
Tires / Drive: Pneumatic / 4×2 configuration
-
Additional Features:
• Oil-cooled disc brakes
• Auto-shift transmission (3-speed)
• Pilot-actuated hydraulic controls
• Solid frame with reinforced mast
• Spacious operator forklift cab
Availability & Readiness
-
Units immediately available for rental across Saudi Arabia and GCC
-
Maintained under Dayim’s preventive maintenance regimen
-
Inspected, tested, and certified prior to dispatch
-
Fully supported by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rentals
Applications
-
Heavy-lift operations in factories, warehouses, and ports
-
Loading/unloading of containers, cargo, and bulk material
-
High-volume stacking and storage systems
-
Steel, timber, and heavy equipment handling
-
Industrial logistics across yards, sheds, and production zones
Description
The D1OS-5 is a heavy-duty, 4-wheel diesel forklift designed for high-capacity load handling in rigorous industrial and warehouse settings. It’s built with durability, stability, and operator comfort in mind—ideal for lifting, stacking, and movement of heavy loads with reliability and performance.
Key Specifications
-
Rated Capacity: 11,000 kg (11 ton)
-
Load Center: 600 mm
-
Mast Lift Height: 4.30 m (approx.)
-
Engine Type: Diesel (high-torque)
-
Travel Speed (with / without load): ~ 29 km/h
-
Lift Speed (loaded / unloaded): ~ 0.375 m/s / ~ 0.430 m/s
-
Turning Radius: ~ 4.04 m
-
Overall Width: ~ 2,350 mm
-
Length to Fork Face: ~ 4,340 mm
-
Height to Top of Overhead Guard: ~ 2,765 mm
-
Weight (Operating): Approx. 18,900 kg
-
Gradeability: ~ 28 % (loaded)
-
Tires / Drive: Pneumatic / 4×2 configuration
-
Additional Features:
• Oil-cooled disc brakes
• Auto-shift transmission (3-speed)
• Pilot-actuated hydraulic controls
• Solid frame with reinforced mast
• Spacious operator forklift cab
Availability & Readiness
-
Units immediately available for rental across Saudi Arabia and GCC
-
Maintained under Dayim’s preventive maintenance regimen
-
Inspected, tested, and certified prior to dispatch
-
Fully supported by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rentals
Applications
-
Heavy-lift operations in factories, warehouses, and ports
-
Loading/unloading of containers, cargo, and bulk material
-
High-volume stacking and storage systems
-
Steel, timber, and heavy equipment handling
-
Industrial logistics across yards, sheds, and production zones
Description
The Doosan D160S-5 is a high-capacity diesel forklift designed for heavy-duty industrial operations. Built for strength, safety, and operator comfort, it delivers reliable performance when handling large and bulky loads across ports, factories, and construction sites.
Key Specifications
-
Rated Capacity: 16,000 kg (≈ 35,000 lb)
-
Load Center: 600 mm
-
Engine Model: Doosan DL06, 6-cylinder diesel
-
Engine Power: 162 hp (121 kW) @ 2,100 rpm
-
Maximum Lift Height: 5.0 m
-
Travel Speed (Loaded / Unloaded): 29 / 33 km/h
-
Lift Speed (Loaded / Unloaded): 0.41 / 0.45 m/s
-
Gradeability (Loaded): 28 %
-
Turning Radius: 4.4 m
-
Operating Weight: 18,900 kg
-
Overall Width: 2,490 mm
-
Transmission: Full automatic powershift, 3 forward / 3 reverse
-
Brake System: Oil-cooled disc brakes
-
Mast Type: Triplex mast, with optional free lift
-
Tires: Pneumatic, heavy-duty construction grade
-
Cab Features:
• Ergonomic operator seat with suspension
• High-visibility overhead guard
• Low-noise, low-vibration cabin
• Clear dashboard with diagnostic indicators
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified prior to dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Available for short-term, long-term, or project-based rental contracts
Applications
-
Port and terminal heavy lifting operations
-
Steel manufacturing and fabrication sites
-
Large construction and infrastructure projects
-
Industrial logistics and warehouse yards
-
Container handling and cargo transport
Description
The Doosan D160S-5 is a high-capacity diesel forklift designed for heavy-duty industrial operations. Built for strength, safety, and operator comfort, it delivers reliable performance when handling large and bulky loads across ports, factories, and construction sites.
Key Specifications
-
Rated Capacity: 16,000 kg (≈ 35,000 lb)
-
Load Center: 600 mm
-
Engine Model: Doosan DL06, 6-cylinder diesel
-
Engine Power: 162 hp (121 kW) @ 2,100 rpm
-
Maximum Lift Height: 5.0 m
-
Travel Speed (Loaded / Unloaded): 29 / 33 km/h
-
Lift Speed (Loaded / Unloaded): 0.41 / 0.45 m/s
-
Gradeability (Loaded): 28 %
-
Turning Radius: 4.4 m
-
Operating Weight: 18,900 kg
-
Overall Width: 2,490 mm
-
Transmission: Full automatic powershift, 3 forward / 3 reverse
-
Brake System: Oil-cooled disc brakes
-
Mast Type: Triplex mast, with optional free lift
-
Tires: Pneumatic, heavy-duty construction grade
-
Cab Features:
• Ergonomic operator seat with suspension
• High-visibility overhead guard
• Low-noise, low-vibration cabin
• Clear dashboard with diagnostic indicators
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified prior to dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Available for short-term, long-term, or project-based rental contracts
Applications
-
Port and terminal heavy lifting operations
-
Steel manufacturing and fabrication sites
-
Large construction and infrastructure projects
-
Industrial logistics and warehouse yards
-
Container handling and cargo transport
Description
The Combilift C5000 XL is a versatile, multi-directional forklift that combines counterbalance, side-loader, and narrow aisle capabilities in a single machine. With a wide cab for operator comfort and flexible handling modes, it is ideal for handling long, bulky loads in tight aisles, warehouses, and industrial settings.
Key Specifications
-
Rated Capacity: 5,000 kg at 600 mm load center
-
Unladen Weight: ~ 6,800 kg
-
Engine Types Available: Diesel (Kubota V2403T), LPG
-
Standard Lift Height: 4,040 mm
-
Maximum Lift Height (mast raised): 5,005 mm
-
Closed Mast Height: 2,990 mm
-
Overall Length: 2,500 mm
-
Overall Width: 2,235 mm
-
Height Over Cab / Overhead Guard: 2,590 mm
-
Mast Travel (stroke): 1,340 mm
-
Ground Clearance (under mast): 280 mm
-
Ground Clearance at Wheelbase Center: 270 mm
-
Wheelbase: 2,070 mm
-
Front Track Width: 1,995 mm
-
Load Center Distance: 600 mm
-
Approach / Departure Angles: 45° / 45°
-
Ramp / Grade Angle Capability: 29°
-
Forward Tilt / Backward Tilt: 3° / 5°
-
Turning Radius (min. outside): 2,490 mm
-
Platform / Deck Height: 680 mm
-
Platform Length: 1,200 mm
-
Top Speed: 15 km/h
-
Gradeability: 15 %
Availability & Readiness
-
Units are ready to hire across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Handling long or heavy loads in narrow aisles
-
Steel, timber, pipe, and structural material movement
-
Warehouses where multi-directional access is needed
-
Industrial production flow lines
-
Loading/unloading in confined or constrained spaces
-
Mixed cargo operations requiring flexible orientation
Description
The Combilift C5000 XL is a versatile, multi-directional forklift that combines counterbalance, side-loader, and narrow aisle capabilities in a single machine. With a wide cab for operator comfort and flexible handling modes, it is ideal for handling long, bulky loads in tight aisles, warehouses, and industrial settings.
Key Specifications
-
Rated Capacity: 5,000 kg at 600 mm load center
-
Unladen Weight: ~ 6,800 kg
-
Engine Types Available: Diesel (Kubota V2403T), LPG
-
Standard Lift Height: 4,040 mm
-
Maximum Lift Height (mast raised): 5,005 mm
-
Closed Mast Height: 2,990 mm
-
Overall Length: 2,500 mm
-
Overall Width: 2,235 mm
-
Height Over Cab / Overhead Guard: 2,590 mm
-
Mast Travel (stroke): 1,340 mm
-
Ground Clearance (under mast): 280 mm
-
Ground Clearance at Wheelbase Center: 270 mm
-
Wheelbase: 2,070 mm
-
Front Track Width: 1,995 mm
-
Load Center Distance: 600 mm
-
Approach / Departure Angles: 45° / 45°
-
Ramp / Grade Angle Capability: 29°
-
Forward Tilt / Backward Tilt: 3° / 5°
-
Turning Radius (min. outside): 2,490 mm
-
Platform / Deck Height: 680 mm
-
Platform Length: 1,200 mm
-
Top Speed: 15 km/h
-
Gradeability: 15 %
Availability & Readiness
-
Units are ready to hire across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Handling long or heavy loads in narrow aisles
-
Steel, timber, pipe, and structural material movement
-
Warehouses where multi-directional access is needed
-
Industrial production flow lines
-
Loading/unloading in confined or constrained spaces
-
Mixed cargo operations requiring flexible orientation
Description
The Manitou MI-X 50 D is a high-capacity diesel forklift built for demanding industrial and logistics work. It combines powerful lifting, durable construction, and operator-friendly design to handle heavy loads reliably across warehouses, construction yards, and port operations.
Key Specifications
-
Rated Capacity: 5,000 kg
-
Load Center: 500 mm
-
Max Lifting Height: up to 6,000 mm (various mast options)
-
Service Weight (Unladen): 6,800 kg
-
Width (Overall): 1,490 mm
-
Turning Radius (Outside): 2,920 mm
-
Construction Height (Overhead Guard): 2,390 mm
-
Travel Speed (Laden / Unladen): 22 / 24 km/h
-
Lifting Speed (Laden / Unladen): 0.40 / 0.43 m/s
-
Lowering Speed: 0.50 m/s
-
Gradeability (Laden / Unladen): 34 % / 32 %
-
Engine: Perkins 1104D-44, 56 kW
-
Wheelbase: 2,150 mm
-
Forks (Standard): 1,220 mm length × 150 mm width × 50 mm thickness
-
Tyres: Pneumatic (Front: 300-15-18 PR, Rear: 7.00-12-12 PR)
-
Other Features:
• 6° forward / 12° backward mast tilt
• Robust mast design with good visibility
• Dual-side access to operator cabin
• Easy maintenance access
Availability & Readiness
-
Units ready for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Available under short-term, long-term, or project-based rental contracts
Applications
-
Heavy industrial and warehouse material handling
-
Loading and unloading operations
-
Construction and infrastructure site logistics
-
Steel, timber, pipe, and structural component movement
-
High-capacity stacking and storage tasks
Description
The Manitou MI-X 50 D is a high-capacity diesel forklift built for demanding industrial and logistics work. It combines powerful lifting, durable construction, and operator-friendly design to handle heavy loads reliably across warehouses, construction yards, and port operations.
Key Specifications
-
Rated Capacity: 5,000 kg
-
Load Center: 500 mm
-
Max Lifting Height: up to 6,000 mm (various mast options)
-
Service Weight (Unladen): 6,800 kg
-
Width (Overall): 1,490 mm
-
Turning Radius (Outside): 2,920 mm
-
Construction Height (Overhead Guard): 2,390 mm
-
Travel Speed (Laden / Unladen): 22 / 24 km/h
-
Lifting Speed (Laden / Unladen): 0.40 / 0.43 m/s
-
Lowering Speed: 0.50 m/s
-
Gradeability (Laden / Unladen): 34 % / 32 %
-
Engine: Perkins 1104D-44, 56 kW
-
Wheelbase: 2,150 mm
-
Forks (Standard): 1,220 mm length × 150 mm width × 50 mm thickness
-
Tyres: Pneumatic (Front: 300-15-18 PR, Rear: 7.00-12-12 PR)
-
Other Features:
• 6° forward / 12° backward mast tilt
• Robust mast design with good visibility
• Dual-side access to operator cabin
• Easy maintenance access
Availability & Readiness
-
Units ready for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Available under short-term, long-term, or project-based rental contracts
Applications
-
Heavy industrial and warehouse material handling
-
Loading and unloading operations
-
Construction and infrastructure site logistics
-
Steel, timber, pipe, and structural component movement
-
High-capacity stacking and storage tasks
Description
The JCB 540-170 is a heavy-duty telescopic handler (Loadall) engineered for demanding lift and reach operations. With its 4-stage boom, 4WD drive, and robust load management systems, it delivers exceptional versatility, stability, and performance for construction, infrastructure, and industrial sites.
Key Specifications
-
Maximum Lift Capacity: 4,000 kg (≈ 8,820 lb)
-
Rated Load Center: 500 mm
-
Maximum Lift Height: 16.7 m (≈ 54 ft 9 in)
-
Maximum Forward Reach: 12.5 m (≈ 41 ft 0 in)
-
Capacity at Full Reach: 600 kg (≈ 1,320 lb)
-
Stabilised Lift Capacity: 2,500 kg at full lift height without forward outreach reduction
-
Engine Power: 81 kW
-
Operating Weight: ~ 12,060 kg
-
Stowed Dimensions:
• Length (to carriage): 6.36 m
• Width (over tyres): 2.44 m
• Height: 2.69 m -
Wheelbase: 2.75 m
-
Ground Clearance: 0.40 m
-
Tyres: 15.5 / 80-24
-
Transmission / Drive: 4WD with selectable steering modes
-
Maximum Travel Speed: ~ 40 km/h
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before dispatch
-
Backed by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Construction and infrastructure lift work
-
Material placement at height or distance
-
Warehouse and site load handling
-
Heavy equipment positioning
-
Industrial and plant maintenance
Description
The JCB 540-170 is a heavy-duty telescopic handler (Loadall) engineered for demanding lift and reach operations. With its 4-stage boom, 4WD drive, and robust load management systems, it delivers exceptional versatility, stability, and performance for construction, infrastructure, and industrial sites.
Key Specifications
-
Maximum Lift Capacity: 4,000 kg (≈ 8,820 lb)
-
Rated Load Center: 500 mm
-
Maximum Lift Height: 16.7 m (≈ 54 ft 9 in)
-
Maximum Forward Reach: 12.5 m (≈ 41 ft 0 in)
-
Capacity at Full Reach: 600 kg (≈ 1,320 lb)
-
Stabilised Lift Capacity: 2,500 kg at full lift height without forward outreach reduction
-
Engine Power: 81 kW
-
Operating Weight: ~ 12,060 kg
-
Stowed Dimensions:
• Length (to carriage): 6.36 m
• Width (over tyres): 2.44 m
• Height: 2.69 m -
Wheelbase: 2.75 m
-
Ground Clearance: 0.40 m
-
Tyres: 15.5 / 80-24
-
Transmission / Drive: 4WD with selectable steering modes
-
Maximum Travel Speed: ~ 40 km/h
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before dispatch
-
Backed by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Construction and infrastructure lift work
-
Material placement at height or distance
-
Warehouse and site load handling
-
Heavy equipment positioning
-
Industrial and plant maintenance
