Product Details
Description

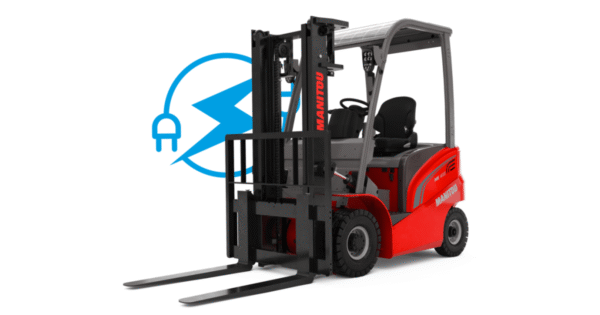

The Manitou ME 420 is a compact, electric counterbalance forklift ideal for warehouse, industrial, and logistics applications. With its silent electric drive, compact footprint, and robust build, it offers efficiency, reliability, and low operating costs—perfect for interior and exterior use where emissions or noise are concerns.
Key Specifications
-
Rated Capacity: 2,000 kg (≈ 4,409 lb)
-
Load Center: 500 mm
-
Service Weight: 4,000 kg
-
Wheelbase: 1,485 mm
-
Overall Width: 1,265 mm
-
Height to Overhead Guard: 2,155 mm
-
Length to Fork Face: 2,342 mm
-
Ground Clearance (Mast): 112 mm
-
Turning Radius (Outside): 2,090 mm
-
Travel Speed (Laden / Unladen): 14 / 14 km/h
-
Lifting Speed (Laden / Unladen): 0.28 / 0.40 m/s
-
Lowering Speed (Laden / Unladen): 0.42 / 0.29 m/s
-
Drive Motor Power (S2 60 min): 11 kW
-
Lift Motor Power (Duty Cycle): 8.6 kW
-
Battery: 48 V / 700 Ah
-
Hydraulic System Pressure: 175 bar
-
Hydraulic Flow for Attachments: 35 L/min
-
Sound Level at Operator Ear: < 71 dB(A)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained via Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported 24/7 by Dayim’s technical, service, and logistics teams
-
Offered for short-term, long-term, and project-based contracts
Applications
-
Indoor warehouse operations and rack handling
-
Loading/unloading goods in factories and distribution centers
-
Electric, low-noise operations in clean or semi-clean facilities
-
Logistics, shipping, and cross-dock yards
-
Container handling with compact forklift clearance
Description

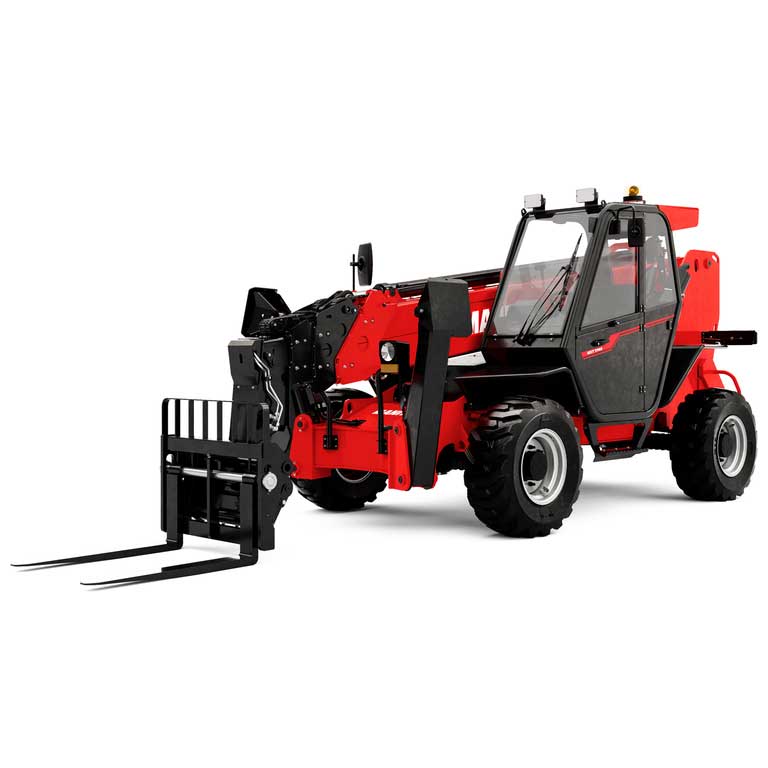

The Manitou MT-X 1840 is a heavy-duty telescopic handler designed for demanding lifting, placement, and material handling tasks. With a 4 ton rated capacity and a high reach envelope, it’s well suited for construction, industrial, and infrastructure sites. Its robust hydraulics, stabilizers, and frame-leveling system support safe operations in uneven terrain.
Key Specifications
-
Rated Lifting Capacity: 4,000 kg
-
Maximum Lifting Height: 17.55 m
-
Maximum Forward Reach: 13.08 m
-
Engine / Powerplant: Perkins diesel, ~ 74.5 kW
-
Unladen Weight: ~ 11,630 kg
-
Transport Dimensions:
• Length: ~ 6.16 m
• Width: ~ 2.42 m
• Height: ~ 2.45 m -
Travel Speed: ~ 24.9 km/h
-
Frame Leveling: ± 9°
-
Stabilization: Outriggers / stabilizers for lateral and frontal support
-
Features & Structure:
• Manual / stabilized vertical mast and boom
• Wide stabilizer legs for improved lateral stability
• Compact profile for transport and site maneuvering
• Compatible with multiple attachments and quick-change systems
Availability & Readiness
-
Available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before deployment
-
Supported by 24/7 service, logistics, and technical teams
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure material handling
-
Loading and placement in tall / hard-to-reach zones
-
Handling operations at height (e.g. placing façade panels)
-
Industrial / warehouse lifting tasks
-
Utility and infrastructure site support
Description
The Manitou MT-X 1840 is a heavy-duty telescopic handler designed for demanding lifting, placement, and material handling tasks. With a 4 ton rated capacity and a high reach envelope, it’s well suited for construction, industrial, and infrastructure sites. Its robust hydraulics, stabilizers, and frame-leveling system support safe operations in uneven terrain.
Key Specifications
-
Rated Lifting Capacity: 4,000 kg
-
Maximum Lifting Height: 17.55 m
-
Maximum Forward Reach: 13.08 m
-
Engine / Powerplant: Perkins diesel, ~ 74.5 kW
-
Unladen Weight: ~ 11,630 kg
-
Transport Dimensions:
• Length: ~ 6.16 m
• Width: ~ 2.42 m
• Height: ~ 2.45 m -
Travel Speed: ~ 24.9 km/h
-
Frame Leveling: ± 9°
-
Stabilization: Outriggers / stabilizers for lateral and frontal support
-
Features & Structure:
• Manual / stabilized vertical mast and boom
• Wide stabilizer legs for improved lateral stability
• Compact profile for transport and site maneuvering
• Compatible with multiple attachments and quick-change systems
Availability & Readiness
-
Available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before deployment
-
Supported by 24/7 service, logistics, and technical teams
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure material handling
-
Loading and placement in tall / hard-to-reach zones
-
Handling operations at height (e.g. placing façade panels)
-
Industrial / warehouse lifting tasks
-
Utility and infrastructure site support
Description
The D1OS-5 is a heavy-duty, 4-wheel diesel forklift designed for high-capacity load handling in rigorous industrial and warehouse settings. It’s built with durability, stability, and operator comfort in mind—ideal for lifting, stacking, and movement of heavy loads with reliability and performance.
Key Specifications
-
Rated Capacity: 11,000 kg (11 ton)
-
Load Center: 600 mm
-
Mast Lift Height: 4.30 m (approx.)
-
Engine Type: Diesel (high-torque)
-
Travel Speed (with / without load): ~ 29 km/h
-
Lift Speed (loaded / unloaded): ~ 0.375 m/s / ~ 0.430 m/s
-
Turning Radius: ~ 4.04 m
-
Overall Width: ~ 2,350 mm
-
Length to Fork Face: ~ 4,340 mm
-
Height to Top of Overhead Guard: ~ 2,765 mm
-
Weight (Operating): Approx. 18,900 kg
-
Gradeability: ~ 28 % (loaded)
-
Tires / Drive: Pneumatic / 4×2 configuration
-
Additional Features:
• Oil-cooled disc brakes
• Auto-shift transmission (3-speed)
• Pilot-actuated hydraulic controls
• Solid frame with reinforced mast
• Spacious operator forklift cab
Availability & Readiness
-
Units immediately available for rental across Saudi Arabia and GCC
-
Maintained under Dayim’s preventive maintenance regimen
-
Inspected, tested, and certified prior to dispatch
-
Fully supported by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rentals
Applications
-
Heavy-lift operations in factories, warehouses, and ports
-
Loading/unloading of containers, cargo, and bulk material
-
High-volume stacking and storage systems
-
Steel, timber, and heavy equipment handling
-
Industrial logistics across yards, sheds, and production zones
Description
The D1OS-5 is a heavy-duty, 4-wheel diesel forklift designed for high-capacity load handling in rigorous industrial and warehouse settings. It’s built with durability, stability, and operator comfort in mind—ideal for lifting, stacking, and movement of heavy loads with reliability and performance.
Key Specifications
-
Rated Capacity: 11,000 kg (11 ton)
-
Load Center: 600 mm
-
Mast Lift Height: 4.30 m (approx.)
-
Engine Type: Diesel (high-torque)
-
Travel Speed (with / without load): ~ 29 km/h
-
Lift Speed (loaded / unloaded): ~ 0.375 m/s / ~ 0.430 m/s
-
Turning Radius: ~ 4.04 m
-
Overall Width: ~ 2,350 mm
-
Length to Fork Face: ~ 4,340 mm
-
Height to Top of Overhead Guard: ~ 2,765 mm
-
Weight (Operating): Approx. 18,900 kg
-
Gradeability: ~ 28 % (loaded)
-
Tires / Drive: Pneumatic / 4×2 configuration
-
Additional Features:
• Oil-cooled disc brakes
• Auto-shift transmission (3-speed)
• Pilot-actuated hydraulic controls
• Solid frame with reinforced mast
• Spacious operator forklift cab
Availability & Readiness
-
Units immediately available for rental across Saudi Arabia and GCC
-
Maintained under Dayim’s preventive maintenance regimen
-
Inspected, tested, and certified prior to dispatch
-
Fully supported by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rentals
Applications
-
Heavy-lift operations in factories, warehouses, and ports
-
Loading/unloading of containers, cargo, and bulk material
-
High-volume stacking and storage systems
-
Steel, timber, and heavy equipment handling
-
Industrial logistics across yards, sheds, and production zones
Description
The Doosan D50C-5 is a powerful and durable diesel forklift built for heavy-duty industrial applications. Known for its reliability, stability, and operator comfort, it delivers excellent performance for material handling, loading, and logistics operations even in harsh environments.
Key Specifications
-
Rated Capacity: 5,000 kg (≈ 11,000 lb)
-
Load Center: 600 mm
-
Engine: Doosan DB-58, 91 hp (68 kW) diesel
-
Transmission: Fully automatic powershift
-
Travel Speed: 25 km/h (≈ 16 mph)
-
Lift Speed (Loaded / Unloaded): 0.45 m/s / 0.50 m/s
-
Gradeability (Loaded): 28 %
-
Mast Lift Height: 4.3 m (standard two-stage configuration)
-
Turning Radius: 2.92 m
-
Overall Length (to fork face): 3.23 m
-
Overall Width: 1.45 m
-
Overhead Guard Height: 2.24 m
-
Weight (Unladen): ~ 8,100 kg
-
Tires: Pneumatic (front drive / rear steer)
-
Brake System: Oil-cooled disc brakes
-
Hydraulic System Flow: 90 L/min
-
Features:
• Heavy-duty counterbalance chassis
• Reliable, low-emission diesel engine
• Reinforced mast for maximum visibility and strength
• Ergonomic operator cabin with suspension seat
• Easy maintenance access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Heavy material handling in warehouses and factories
-
Ports, terminals, and logistics operations
-
Construction and industrial supply yards
-
Steel, timber, and heavy manufacturing industries
-
Equipment and bulk material loading/unloading
Description
The Doosan D50C-5 is a powerful and durable diesel forklift built for heavy-duty industrial applications. Known for its reliability, stability, and operator comfort, it delivers excellent performance for material handling, loading, and logistics operations even in harsh environments.
Key Specifications
-
Rated Capacity: 5,000 kg (≈ 11,000 lb)
-
Load Center: 600 mm
-
Engine: Doosan DB-58, 91 hp (68 kW) diesel
-
Transmission: Fully automatic powershift
-
Travel Speed: 25 km/h (≈ 16 mph)
-
Lift Speed (Loaded / Unloaded): 0.45 m/s / 0.50 m/s
-
Gradeability (Loaded): 28 %
-
Mast Lift Height: 4.3 m (standard two-stage configuration)
-
Turning Radius: 2.92 m
-
Overall Length (to fork face): 3.23 m
-
Overall Width: 1.45 m
-
Overhead Guard Height: 2.24 m
-
Weight (Unladen): ~ 8,100 kg
-
Tires: Pneumatic (front drive / rear steer)
-
Brake System: Oil-cooled disc brakes
-
Hydraulic System Flow: 90 L/min
-
Features:
• Heavy-duty counterbalance chassis
• Reliable, low-emission diesel engine
• Reinforced mast for maximum visibility and strength
• Ergonomic operator cabin with suspension seat
• Easy maintenance access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Heavy material handling in warehouses and factories
-
Ports, terminals, and logistics operations
-
Construction and industrial supply yards
-
Steel, timber, and heavy manufacturing industries
-
Equipment and bulk material loading/unloading
Description
The Manitou MI-X 50 D is a high-capacity diesel forklift built for demanding industrial and logistics work. It combines powerful lifting, durable construction, and operator-friendly design to handle heavy loads reliably across warehouses, construction yards, and port operations.
Key Specifications
-
Rated Capacity: 5,000 kg
-
Load Center: 500 mm
-
Max Lifting Height: up to 6,000 mm (various mast options)
-
Service Weight (Unladen): 6,800 kg
-
Width (Overall): 1,490 mm
-
Turning Radius (Outside): 2,920 mm
-
Construction Height (Overhead Guard): 2,390 mm
-
Travel Speed (Laden / Unladen): 22 / 24 km/h
-
Lifting Speed (Laden / Unladen): 0.40 / 0.43 m/s
-
Lowering Speed: 0.50 m/s
-
Gradeability (Laden / Unladen): 34 % / 32 %
-
Engine: Perkins 1104D-44, 56 kW
-
Wheelbase: 2,150 mm
-
Forks (Standard): 1,220 mm length × 150 mm width × 50 mm thickness
-
Tyres: Pneumatic (Front: 300-15-18 PR, Rear: 7.00-12-12 PR)
-
Other Features:
• 6° forward / 12° backward mast tilt
• Robust mast design with good visibility
• Dual-side access to operator cabin
• Easy maintenance access
Availability & Readiness
-
Units ready for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Available under short-term, long-term, or project-based rental contracts
Applications
-
Heavy industrial and warehouse material handling
-
Loading and unloading operations
-
Construction and infrastructure site logistics
-
Steel, timber, pipe, and structural component movement
-
High-capacity stacking and storage tasks
Description
The Manitou MI-X 50 D is a high-capacity diesel forklift built for demanding industrial and logistics work. It combines powerful lifting, durable construction, and operator-friendly design to handle heavy loads reliably across warehouses, construction yards, and port operations.
Key Specifications
-
Rated Capacity: 5,000 kg
-
Load Center: 500 mm
-
Max Lifting Height: up to 6,000 mm (various mast options)
-
Service Weight (Unladen): 6,800 kg
-
Width (Overall): 1,490 mm
-
Turning Radius (Outside): 2,920 mm
-
Construction Height (Overhead Guard): 2,390 mm
-
Travel Speed (Laden / Unladen): 22 / 24 km/h
-
Lifting Speed (Laden / Unladen): 0.40 / 0.43 m/s
-
Lowering Speed: 0.50 m/s
-
Gradeability (Laden / Unladen): 34 % / 32 %
-
Engine: Perkins 1104D-44, 56 kW
-
Wheelbase: 2,150 mm
-
Forks (Standard): 1,220 mm length × 150 mm width × 50 mm thickness
-
Tyres: Pneumatic (Front: 300-15-18 PR, Rear: 7.00-12-12 PR)
-
Other Features:
• 6° forward / 12° backward mast tilt
• Robust mast design with good visibility
• Dual-side access to operator cabin
• Easy maintenance access
Availability & Readiness
-
Units ready for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Available under short-term, long-term, or project-based rental contracts
Applications
-
Heavy industrial and warehouse material handling
-
Loading and unloading operations
-
Construction and infrastructure site logistics
-
Steel, timber, pipe, and structural component movement
-
High-capacity stacking and storage tasks
Description
The Doosan D70S-5 is a robust pneumatic-tire diesel forklift built for high-capacity industrial and warehouse operations. Designed to handle heavy loads with stability, power, and operator comfort, it is ideal for demanding material handling tasks in yards, ports, and manufacturing facilities.
Key Specifications
-
Rated Capacity: 7,000 kg
-
Load Center: 600 mm
-
Engine: DB58S Diesel
-
Rated Power: 100 hp (≈ 75 kW)
-
Lifting Speed (Loaded / Unloaded): ~ 0.42 / 0.45 m/s
-
Lowering Speed (Loaded / Unloaded): ~ 0.46 / 0.49 m/s
-
Travel Speed (Empty / Loaded): ~ 26.5 / 14 km/h
-
Max Gradeability: ~ 30 %
-
Turning Radius: ~ 3.38 m
-
Width: ~ 2,108 mm
-
Height (Overall Mast Lowered): ~ 2,500 mm
-
Operating Weight: ~ 9,800 kg
-
Tires: Pneumatic
-
Transmission Type: Multistage, automatic
-
Mast Type: Standard 3-stage mast (lifting height up to ~ 5 m)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Available for short-term, long-term, or project-based rental contracts
Applications
-
Heavy-duty warehouse and yard operations
-
Port and terminal cargo handling
-
Steel, timber, and structural material handling
-
Manufacturing, fabrication, and logistics centers
-
Loading/unloading of large containers and equipment
Description
The Doosan D70S-5 is a robust pneumatic-tire diesel forklift built for high-capacity industrial and warehouse operations. Designed to handle heavy loads with stability, power, and operator comfort, it is ideal for demanding material handling tasks in yards, ports, and manufacturing facilities.
Key Specifications
-
Rated Capacity: 7,000 kg
-
Load Center: 600 mm
-
Engine: DB58S Diesel
-
Rated Power: 100 hp (≈ 75 kW)
-
Lifting Speed (Loaded / Unloaded): ~ 0.42 / 0.45 m/s
-
Lowering Speed (Loaded / Unloaded): ~ 0.46 / 0.49 m/s
-
Travel Speed (Empty / Loaded): ~ 26.5 / 14 km/h
-
Max Gradeability: ~ 30 %
-
Turning Radius: ~ 3.38 m
-
Width: ~ 2,108 mm
-
Height (Overall Mast Lowered): ~ 2,500 mm
-
Operating Weight: ~ 9,800 kg
-
Tires: Pneumatic
-
Transmission Type: Multistage, automatic
-
Mast Type: Standard 3-stage mast (lifting height up to ~ 5 m)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Available for short-term, long-term, or project-based rental contracts
Applications
-
Heavy-duty warehouse and yard operations
-
Port and terminal cargo handling
-
Steel, timber, and structural material handling
-
Manufacturing, fabrication, and logistics centers
-
Loading/unloading of large containers and equipment
Description
The JCB 540-170 is a heavy-duty telescopic handler (Loadall) engineered for demanding lift and reach operations. With its 4-stage boom, 4WD drive, and robust load management systems, it delivers exceptional versatility, stability, and performance for construction, infrastructure, and industrial sites.
Key Specifications
-
Maximum Lift Capacity: 4,000 kg (≈ 8,820 lb)
-
Rated Load Center: 500 mm
-
Maximum Lift Height: 16.7 m (≈ 54 ft 9 in)
-
Maximum Forward Reach: 12.5 m (≈ 41 ft 0 in)
-
Capacity at Full Reach: 600 kg (≈ 1,320 lb)
-
Stabilised Lift Capacity: 2,500 kg at full lift height without forward outreach reduction
-
Engine Power: 81 kW
-
Operating Weight: ~ 12,060 kg
-
Stowed Dimensions:
• Length (to carriage): 6.36 m
• Width (over tyres): 2.44 m
• Height: 2.69 m -
Wheelbase: 2.75 m
-
Ground Clearance: 0.40 m
-
Tyres: 15.5 / 80-24
-
Transmission / Drive: 4WD with selectable steering modes
-
Maximum Travel Speed: ~ 40 km/h
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before dispatch
-
Backed by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Construction and infrastructure lift work
-
Material placement at height or distance
-
Warehouse and site load handling
-
Heavy equipment positioning
-
Industrial and plant maintenance
Description
The JCB 540-170 is a heavy-duty telescopic handler (Loadall) engineered for demanding lift and reach operations. With its 4-stage boom, 4WD drive, and robust load management systems, it delivers exceptional versatility, stability, and performance for construction, infrastructure, and industrial sites.
Key Specifications
-
Maximum Lift Capacity: 4,000 kg (≈ 8,820 lb)
-
Rated Load Center: 500 mm
-
Maximum Lift Height: 16.7 m (≈ 54 ft 9 in)
-
Maximum Forward Reach: 12.5 m (≈ 41 ft 0 in)
-
Capacity at Full Reach: 600 kg (≈ 1,320 lb)
-
Stabilised Lift Capacity: 2,500 kg at full lift height without forward outreach reduction
-
Engine Power: 81 kW
-
Operating Weight: ~ 12,060 kg
-
Stowed Dimensions:
• Length (to carriage): 6.36 m
• Width (over tyres): 2.44 m
• Height: 2.69 m -
Wheelbase: 2.75 m
-
Ground Clearance: 0.40 m
-
Tyres: 15.5 / 80-24
-
Transmission / Drive: 4WD with selectable steering modes
-
Maximum Travel Speed: ~ 40 km/h
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before dispatch
-
Backed by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Construction and infrastructure lift work
-
Material placement at height or distance
-
Warehouse and site load handling
-
Heavy equipment positioning
-
Industrial and plant maintenance
