Product Details
Description

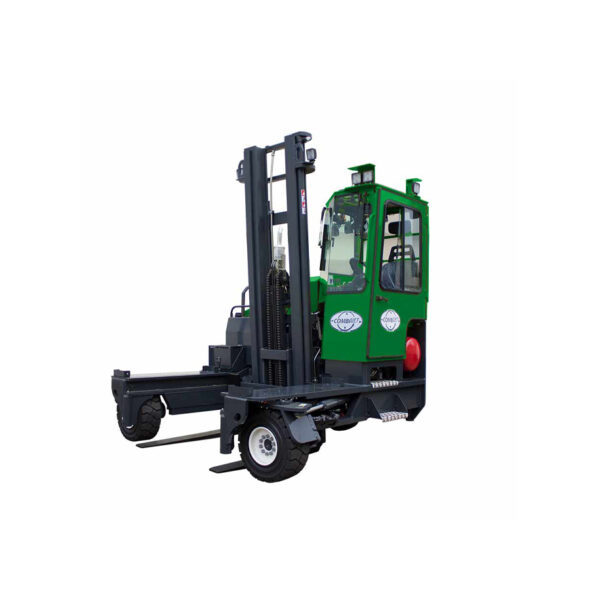

The Combilift C5000 XL is a versatile, multi-directional forklift that combines counterbalance, side-loader, and narrow aisle capabilities in a single machine. With a wide cab for operator comfort and flexible handling modes, it is ideal for handling long, bulky loads in tight aisles, warehouses, and industrial settings.
Key Specifications
-
Rated Capacity: 5,000 kg at 600 mm load center
-
Unladen Weight: ~ 6,800 kg
-
Engine Types Available: Diesel (Kubota V2403T), LPG
-
Standard Lift Height: 4,040 mm
-
Maximum Lift Height (mast raised): 5,005 mm
-
Closed Mast Height: 2,990 mm
-
Overall Length: 2,500 mm
-
Overall Width: 2,235 mm
-
Height Over Cab / Overhead Guard: 2,590 mm
-
Mast Travel (stroke): 1,340 mm
-
Ground Clearance (under mast): 280 mm
-
Ground Clearance at Wheelbase Center: 270 mm
-
Wheelbase: 2,070 mm
-
Front Track Width: 1,995 mm
-
Load Center Distance: 600 mm
-
Approach / Departure Angles: 45° / 45°
-
Ramp / Grade Angle Capability: 29°
-
Forward Tilt / Backward Tilt: 3° / 5°
-
Turning Radius (min. outside): 2,490 mm
-
Platform / Deck Height: 680 mm
-
Platform Length: 1,200 mm
-
Top Speed: 15 km/h
-
Gradeability: 15 %
Availability & Readiness
-
Units are ready to hire across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Handling long or heavy loads in narrow aisles
-
Steel, timber, pipe, and structural material movement
-
Warehouses where multi-directional access is needed
-
Industrial production flow lines
-
Loading/unloading in confined or constrained spaces
-
Mixed cargo operations requiring flexible orientation
Description
The Manitou MRT 2550 is a high-capacity rotating telehandler that combines the functionality of a telehandler, crane, and work platform in one machine. With four-section boom and full 360° turret rotation, it delivers exceptional versatility for lifting, placing, and access tasks across construction, industrial, and infrastructure sites.
Key Specifications
-
Max Lifting Capacity: 4,999 kg
-
Max Working Height: 24.70 m
-
Max Horizontal Reach: 21.40 m
-
Engine: Mercedes OM 934 E4-5, 156 hp (115 kW)
-
Transmission: Hydrostatic drive + 2-speed gearbox
-
Fuel Tank Capacity: 305 L
-
Hydraulic Oil Tank Capacity: 225 L
-
Weight (Unladen): ~ 18,900 kg
-
Dimensions (Stowed):
• Length (to fork): 7.84 m
• Overall length (forks): 9.03 m
• Width (wheels): 2.49 m
• Transport height: 3.05 m -
Ground Clearance (Center): 0.35 m
-
Wheelbase: 3.05 m
-
Turning Radius (Outside Tires): 5.23 m
-
Max Travel Speed: 40 km/h
-
Drawbar Pull: 8,700 daN
-
Tires: 445/65 R22.5 pneumatic
-
Stabilizers: Telescopic duplex
-
Other Features:
• 3-in-1 capability: telehandler, crane, work platform
• E-RECO attachment recognition system
• Frame leveling (± 8°)
• Multiple steering modes (2WD, 4WD, crab)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered on short-term, long-term, and project-based rental contracts
Applications
-
Material handling on construction and infrastructure sites
-
Crane work and elevation tasks in constrained zones
-
Work platform tasks (maintenance, repair, installation)
-
Remote or mixed terrain operations
-
Logistics and heavy lifting in industrial yards
Description
The Manitou MRT 2550 is a high-capacity rotating telehandler that combines the functionality of a telehandler, crane, and work platform in one machine. With four-section boom and full 360° turret rotation, it delivers exceptional versatility for lifting, placing, and access tasks across construction, industrial, and infrastructure sites.
Key Specifications
-
Max Lifting Capacity: 4,999 kg
-
Max Working Height: 24.70 m
-
Max Horizontal Reach: 21.40 m
-
Engine: Mercedes OM 934 E4-5, 156 hp (115 kW)
-
Transmission: Hydrostatic drive + 2-speed gearbox
-
Fuel Tank Capacity: 305 L
-
Hydraulic Oil Tank Capacity: 225 L
-
Weight (Unladen): ~ 18,900 kg
-
Dimensions (Stowed):
• Length (to fork): 7.84 m
• Overall length (forks): 9.03 m
• Width (wheels): 2.49 m
• Transport height: 3.05 m -
Ground Clearance (Center): 0.35 m
-
Wheelbase: 3.05 m
-
Turning Radius (Outside Tires): 5.23 m
-
Max Travel Speed: 40 km/h
-
Drawbar Pull: 8,700 daN
-
Tires: 445/65 R22.5 pneumatic
-
Stabilizers: Telescopic duplex
-
Other Features:
• 3-in-1 capability: telehandler, crane, work platform
• E-RECO attachment recognition system
• Frame leveling (± 8°)
• Multiple steering modes (2WD, 4WD, crab)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered on short-term, long-term, and project-based rental contracts
Applications
-
Material handling on construction and infrastructure sites
-
Crane work and elevation tasks in constrained zones
-
Work platform tasks (maintenance, repair, installation)
-
Remote or mixed terrain operations
-
Logistics and heavy lifting in industrial yards
Description
The Manitou MT-X 1840 is a heavy-duty telescopic handler designed for demanding lifting, placement, and material handling tasks. With a 4 ton rated capacity and a high reach envelope, it’s well suited for construction, industrial, and infrastructure sites. Its robust hydraulics, stabilizers, and frame-leveling system support safe operations in uneven terrain.
Key Specifications
-
Rated Lifting Capacity: 4,000 kg
-
Maximum Lifting Height: 17.55 m
-
Maximum Forward Reach: 13.08 m
-
Engine / Powerplant: Perkins diesel, ~ 74.5 kW
-
Unladen Weight: ~ 11,630 kg
-
Transport Dimensions:
• Length: ~ 6.16 m
• Width: ~ 2.42 m
• Height: ~ 2.45 m -
Travel Speed: ~ 24.9 km/h
-
Frame Leveling: ± 9°
-
Stabilization: Outriggers / stabilizers for lateral and frontal support
-
Features & Structure:
• Manual / stabilized vertical mast and boom
• Wide stabilizer legs for improved lateral stability
• Compact profile for transport and site maneuvering
• Compatible with multiple attachments and quick-change systems
Availability & Readiness
-
Available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before deployment
-
Supported by 24/7 service, logistics, and technical teams
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure material handling
-
Loading and placement in tall / hard-to-reach zones
-
Handling operations at height (e.g. placing façade panels)
-
Industrial / warehouse lifting tasks
-
Utility and infrastructure site support
Description
The Manitou MT-X 1840 is a heavy-duty telescopic handler designed for demanding lifting, placement, and material handling tasks. With a 4 ton rated capacity and a high reach envelope, it’s well suited for construction, industrial, and infrastructure sites. Its robust hydraulics, stabilizers, and frame-leveling system support safe operations in uneven terrain.
Key Specifications
-
Rated Lifting Capacity: 4,000 kg
-
Maximum Lifting Height: 17.55 m
-
Maximum Forward Reach: 13.08 m
-
Engine / Powerplant: Perkins diesel, ~ 74.5 kW
-
Unladen Weight: ~ 11,630 kg
-
Transport Dimensions:
• Length: ~ 6.16 m
• Width: ~ 2.42 m
• Height: ~ 2.45 m -
Travel Speed: ~ 24.9 km/h
-
Frame Leveling: ± 9°
-
Stabilization: Outriggers / stabilizers for lateral and frontal support
-
Features & Structure:
• Manual / stabilized vertical mast and boom
• Wide stabilizer legs for improved lateral stability
• Compact profile for transport and site maneuvering
• Compatible with multiple attachments and quick-change systems
Availability & Readiness
-
Available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before deployment
-
Supported by 24/7 service, logistics, and technical teams
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure material handling
-
Loading and placement in tall / hard-to-reach zones
-
Handling operations at height (e.g. placing façade panels)
-
Industrial / warehouse lifting tasks
-
Utility and infrastructure site support
Description
The Manitou MI-X 70 D is a robust diesel-powered mast forklift engineered to handle heavy industrial loads with precision and reliability. Designed for demanding warehouse, construction, and outdoor environments, it combines strong lifting capacity with ergonomic operator features and a durable chassis.
Key Specifications
-
Rated Capacity: 7,000 kg
-
Load Center: 600 mm
-
Maximum Lift Height: 6,000 mm
-
Service Weight (unladen): 9,595 kg
-
Engine: Cummins QSB3.3
-
Engine Power: 74 kW (~ 99 hp)
-
Travel Speed (laden / unladen): 26 km/h / 29 km/h
-
Lift Speed (laden / unladen): 0.41 m/s / 0.46 m/s
-
Lowering Speed (laden / unladen): 0.48 m/s / 0.42 m/s
-
Gradeability (laden): 36 %
-
Overall Dimensions:
• Width: 1,990 mm
• Length (to fork face): 3,584 mm
• Height (overhead guard): 2,430 mm -
Ground Clearance:
• Under mast: 190 mm
• Center of wheelbase: 270 mm -
Turning Radius (inside): 1,222 mm
-
Wheels / Tyres: Pneumatic (4 / 2)
-
Other Features:
• Full counterbalance mast with tilts (6° forward / 12° backward)
• Strong build for mast and carriage
• Operator-focused cab layout, good visibility, two-side access
• Maintenance-friendly design (accessible components, efficient hose routing)
Availability & Readiness
-
Units ready for hire across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Heavy load stacking and warehouse operations
-
Construction site material handling
-
Container, pallet, and bulk cargo movement
-
Steel / structural component logistics
-
Industrial facilities requiring high-capacity forklifts
Description
The Manitou MI-X 70 D is a robust diesel-powered mast forklift engineered to handle heavy industrial loads with precision and reliability. Designed for demanding warehouse, construction, and outdoor environments, it combines strong lifting capacity with ergonomic operator features and a durable chassis.
Key Specifications
-
Rated Capacity: 7,000 kg
-
Load Center: 600 mm
-
Maximum Lift Height: 6,000 mm
-
Service Weight (unladen): 9,595 kg
-
Engine: Cummins QSB3.3
-
Engine Power: 74 kW (~ 99 hp)
-
Travel Speed (laden / unladen): 26 km/h / 29 km/h
-
Lift Speed (laden / unladen): 0.41 m/s / 0.46 m/s
-
Lowering Speed (laden / unladen): 0.48 m/s / 0.42 m/s
-
Gradeability (laden): 36 %
-
Overall Dimensions:
• Width: 1,990 mm
• Length (to fork face): 3,584 mm
• Height (overhead guard): 2,430 mm -
Ground Clearance:
• Under mast: 190 mm
• Center of wheelbase: 270 mm -
Turning Radius (inside): 1,222 mm
-
Wheels / Tyres: Pneumatic (4 / 2)
-
Other Features:
• Full counterbalance mast with tilts (6° forward / 12° backward)
• Strong build for mast and carriage
• Operator-focused cab layout, good visibility, two-side access
• Maintenance-friendly design (accessible components, efficient hose routing)
Availability & Readiness
-
Units ready for hire across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Heavy load stacking and warehouse operations
-
Construction site material handling
-
Container, pallet, and bulk cargo movement
-
Steel / structural component logistics
-
Industrial facilities requiring high-capacity forklifts
Description
The Manitou MI-X 50 D is a high-capacity diesel forklift built for demanding industrial and logistics work. It combines powerful lifting, durable construction, and operator-friendly design to handle heavy loads reliably across warehouses, construction yards, and port operations.
Key Specifications
-
Rated Capacity: 5,000 kg
-
Load Center: 500 mm
-
Max Lifting Height: up to 6,000 mm (various mast options)
-
Service Weight (Unladen): 6,800 kg
-
Width (Overall): 1,490 mm
-
Turning Radius (Outside): 2,920 mm
-
Construction Height (Overhead Guard): 2,390 mm
-
Travel Speed (Laden / Unladen): 22 / 24 km/h
-
Lifting Speed (Laden / Unladen): 0.40 / 0.43 m/s
-
Lowering Speed: 0.50 m/s
-
Gradeability (Laden / Unladen): 34 % / 32 %
-
Engine: Perkins 1104D-44, 56 kW
-
Wheelbase: 2,150 mm
-
Forks (Standard): 1,220 mm length × 150 mm width × 50 mm thickness
-
Tyres: Pneumatic (Front: 300-15-18 PR, Rear: 7.00-12-12 PR)
-
Other Features:
• 6° forward / 12° backward mast tilt
• Robust mast design with good visibility
• Dual-side access to operator cabin
• Easy maintenance access
Availability & Readiness
-
Units ready for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Available under short-term, long-term, or project-based rental contracts
Applications
-
Heavy industrial and warehouse material handling
-
Loading and unloading operations
-
Construction and infrastructure site logistics
-
Steel, timber, pipe, and structural component movement
-
High-capacity stacking and storage tasks
Description
The Manitou MI-X 50 D is a high-capacity diesel forklift built for demanding industrial and logistics work. It combines powerful lifting, durable construction, and operator-friendly design to handle heavy loads reliably across warehouses, construction yards, and port operations.
Key Specifications
-
Rated Capacity: 5,000 kg
-
Load Center: 500 mm
-
Max Lifting Height: up to 6,000 mm (various mast options)
-
Service Weight (Unladen): 6,800 kg
-
Width (Overall): 1,490 mm
-
Turning Radius (Outside): 2,920 mm
-
Construction Height (Overhead Guard): 2,390 mm
-
Travel Speed (Laden / Unladen): 22 / 24 km/h
-
Lifting Speed (Laden / Unladen): 0.40 / 0.43 m/s
-
Lowering Speed: 0.50 m/s
-
Gradeability (Laden / Unladen): 34 % / 32 %
-
Engine: Perkins 1104D-44, 56 kW
-
Wheelbase: 2,150 mm
-
Forks (Standard): 1,220 mm length × 150 mm width × 50 mm thickness
-
Tyres: Pneumatic (Front: 300-15-18 PR, Rear: 7.00-12-12 PR)
-
Other Features:
• 6° forward / 12° backward mast tilt
• Robust mast design with good visibility
• Dual-side access to operator cabin
• Easy maintenance access
Availability & Readiness
-
Units ready for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Available under short-term, long-term, or project-based rental contracts
Applications
-
Heavy industrial and warehouse material handling
-
Loading and unloading operations
-
Construction and infrastructure site logistics
-
Steel, timber, pipe, and structural component movement
-
High-capacity stacking and storage tasks
Description
The Manitou ME 420 is a compact, electric counterbalance forklift ideal for warehouse, industrial, and logistics applications. With its silent electric drive, compact footprint, and robust build, it offers efficiency, reliability, and low operating costs—perfect for interior and exterior use where emissions or noise are concerns.
Key Specifications
-
Rated Capacity: 2,000 kg (≈ 4,409 lb)
-
Load Center: 500 mm
-
Service Weight: 4,000 kg
-
Wheelbase: 1,485 mm
-
Overall Width: 1,265 mm
-
Height to Overhead Guard: 2,155 mm
-
Length to Fork Face: 2,342 mm
-
Ground Clearance (Mast): 112 mm
-
Turning Radius (Outside): 2,090 mm
-
Travel Speed (Laden / Unladen): 14 / 14 km/h
-
Lifting Speed (Laden / Unladen): 0.28 / 0.40 m/s
-
Lowering Speed (Laden / Unladen): 0.42 / 0.29 m/s
-
Drive Motor Power (S2 60 min): 11 kW
-
Lift Motor Power (Duty Cycle): 8.6 kW
-
Battery: 48 V / 700 Ah
-
Hydraulic System Pressure: 175 bar
-
Hydraulic Flow for Attachments: 35 L/min
-
Sound Level at Operator Ear: < 71 dB(A)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained via Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported 24/7 by Dayim’s technical, service, and logistics teams
-
Offered for short-term, long-term, and project-based contracts
Applications
-
Indoor warehouse operations and rack handling
-
Loading/unloading goods in factories and distribution centers
-
Electric, low-noise operations in clean or semi-clean facilities
-
Logistics, shipping, and cross-dock yards
-
Container handling with compact forklift clearance
Description
The Manitou ME 420 is a compact, electric counterbalance forklift ideal for warehouse, industrial, and logistics applications. With its silent electric drive, compact footprint, and robust build, it offers efficiency, reliability, and low operating costs—perfect for interior and exterior use where emissions or noise are concerns.
Key Specifications
-
Rated Capacity: 2,000 kg (≈ 4,409 lb)
-
Load Center: 500 mm
-
Service Weight: 4,000 kg
-
Wheelbase: 1,485 mm
-
Overall Width: 1,265 mm
-
Height to Overhead Guard: 2,155 mm
-
Length to Fork Face: 2,342 mm
-
Ground Clearance (Mast): 112 mm
-
Turning Radius (Outside): 2,090 mm
-
Travel Speed (Laden / Unladen): 14 / 14 km/h
-
Lifting Speed (Laden / Unladen): 0.28 / 0.40 m/s
-
Lowering Speed (Laden / Unladen): 0.42 / 0.29 m/s
-
Drive Motor Power (S2 60 min): 11 kW
-
Lift Motor Power (Duty Cycle): 8.6 kW
-
Battery: 48 V / 700 Ah
-
Hydraulic System Pressure: 175 bar
-
Hydraulic Flow for Attachments: 35 L/min
-
Sound Level at Operator Ear: < 71 dB(A)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained via Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported 24/7 by Dayim’s technical, service, and logistics teams
-
Offered for short-term, long-term, and project-based contracts
Applications
-
Indoor warehouse operations and rack handling
-
Loading/unloading goods in factories and distribution centers
-
Electric, low-noise operations in clean or semi-clean facilities
-
Logistics, shipping, and cross-dock yards
-
Container handling with compact forklift clearance
Description
The Manitou MI-X 100 D is a heavy-duty diesel forklift designed for high-capacity material handling in demanding industrial, warehouse, and logistical settings. Engineered for strength and stability, it offers smooth performance, excellent ergonomics, and a durable construction that ensures long service life.
Key Specifications
-
Rated Capacity: 10,000 kg (≈ 22,000 lb)
-
Load Center: 600 mm
-
Engine: Cummins QSB4.5, 4-cylinder diesel
-
Engine Power: 82 kW (≈ 112 hp)
-
Travel Speed (Loaded / Unloaded): 26 / 31 km/h
-
Lifting Speed (Loaded / Unloaded): 0.32 / 0.35 m/s
-
Lowering Speed (Loaded / Unloaded): 0.45 / 0.36 m/s
-
Maximum Gradeability: 44 % (loaded)
-
Operating Weight (Unladen): 13,590 kg
-
Overall Width: 2,160 mm
-
Height of Overhead Guard: 2,580 mm
-
Turning Radius (Outside): 3,940 mm
-
Wheelbase: 2,800 mm
-
Mast Tilt (Forward / Backward): 6° / 12°
-
Ground Clearance Below Mast: 190 mm
-
Hydraulic System:
• Pressure: 195 bar
• Flow for attachments: 180 L/min
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regimen
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Heavy-duty warehouse and yard operations
-
Port and container terminal handling
-
Steel, timber, and structural material logistics
-
Infrastructure and industrial site operations
-
High-volume load stacking and transport
Description
The Manitou MI-X 100 D is a heavy-duty diesel forklift designed for high-capacity material handling in demanding industrial, warehouse, and logistical settings. Engineered for strength and stability, it offers smooth performance, excellent ergonomics, and a durable construction that ensures long service life.
Key Specifications
-
Rated Capacity: 10,000 kg (≈ 22,000 lb)
-
Load Center: 600 mm
-
Engine: Cummins QSB4.5, 4-cylinder diesel
-
Engine Power: 82 kW (≈ 112 hp)
-
Travel Speed (Loaded / Unloaded): 26 / 31 km/h
-
Lifting Speed (Loaded / Unloaded): 0.32 / 0.35 m/s
-
Lowering Speed (Loaded / Unloaded): 0.45 / 0.36 m/s
-
Maximum Gradeability: 44 % (loaded)
-
Operating Weight (Unladen): 13,590 kg
-
Overall Width: 2,160 mm
-
Height of Overhead Guard: 2,580 mm
-
Turning Radius (Outside): 3,940 mm
-
Wheelbase: 2,800 mm
-
Mast Tilt (Forward / Backward): 6° / 12°
-
Ground Clearance Below Mast: 190 mm
-
Hydraulic System:
• Pressure: 195 bar
• Flow for attachments: 180 L/min
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regimen
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Heavy-duty warehouse and yard operations
-
Port and container terminal handling
-
Steel, timber, and structural material logistics
-
Infrastructure and industrial site operations
-
High-volume load stacking and transport
