Product Details
Description

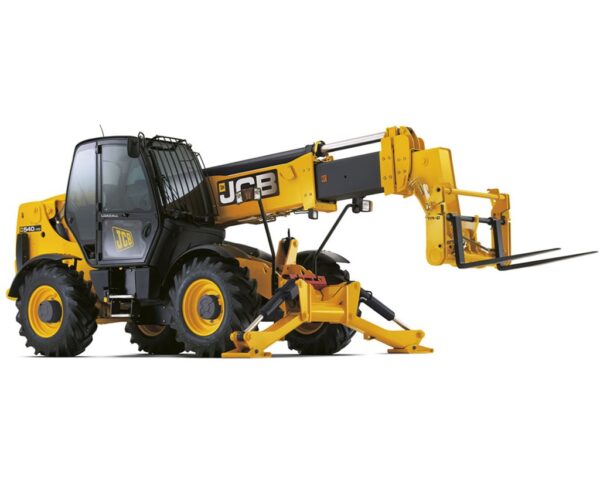

The JCB 540-170 is a heavy-duty telescopic handler (Loadall) engineered for demanding lift and reach operations. With its 4-stage boom, 4WD drive, and robust load management systems, it delivers exceptional versatility, stability, and performance for construction, infrastructure, and industrial sites.
Key Specifications
-
Maximum Lift Capacity: 4,000 kg (≈ 8,820 lb)
-
Rated Load Center: 500 mm
-
Maximum Lift Height: 16.7 m (≈ 54 ft 9 in)
-
Maximum Forward Reach: 12.5 m (≈ 41 ft 0 in)
-
Capacity at Full Reach: 600 kg (≈ 1,320 lb)
-
Stabilised Lift Capacity: 2,500 kg at full lift height without forward outreach reduction
-
Engine Power: 81 kW
-
Operating Weight: ~ 12,060 kg
-
Stowed Dimensions:
• Length (to carriage): 6.36 m
• Width (over tyres): 2.44 m
• Height: 2.69 m -
Wheelbase: 2.75 m
-
Ground Clearance: 0.40 m
-
Tyres: 15.5 / 80-24
-
Transmission / Drive: 4WD with selectable steering modes
-
Maximum Travel Speed: ~ 40 km/h
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before dispatch
-
Backed by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Construction and infrastructure lift work
-
Material placement at height or distance
-
Warehouse and site load handling
-
Heavy equipment positioning
-
Industrial and plant maintenance
Description
The Manitou MXT 1740 is a powerful and reliable telehandler designed to handle heavy lifting and material placement on demanding job sites. With a high reach, excellent stability, and robust lifting capacity, it provides the versatility needed for construction, infrastructure, and industrial applications.
Key Specifications
-
Maximum Lifting Height: 17.40 m (≈ 57 ft)
-
Maximum Outreach: 13.48 m (≈ 44 ft 3 in)
-
Rated Capacity: 4,000 kg (≈ 8,818 lbs)
-
Capacity at Full Height: ≈ 2,500 kg
-
Engine Power: 70 kW / 92 hp
-
Unladen Weight: 11,275 kg (≈ 24,855 lbs)
-
Transport Dimensions:
• Length: 6.20 m
• Width: 2.38 m
• Height: 2.59 m -
Travel Speed: 28 km/h
-
Hydraulic Flow: ≈ 96 L/min
-
Steering Modes: 2-wheel, 4-wheel, and crab steering
-
Transmission: Hydrostatic with 2 forward / 2 reverse speeds
-
Outriggers: Manual vertical stabilizers
-
Tires: Standard construction profile with optional foam-filled versions
-
Frame Leveling: ± 10°
-
Turning Radius: 3.7 m (inside tires)
-
Other Features:
• Telescopic boom with quick-attach tool system
• ROPS / FOPS-certified cab with enhanced visibility
• Load moment indicator and safety cut-outs
• Heavy-duty axles for rough-terrain performance
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to deployment
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Heavy construction and infrastructure projects
-
Industrial material handling and loading
-
Equipment placement on elevated platforms or roofs
-
Warehousing and logistics operations
-
Utility and maintenance tasks in challenging terrain
Description
The Manitou MXT 1740 is a powerful and reliable telehandler designed to handle heavy lifting and material placement on demanding job sites. With a high reach, excellent stability, and robust lifting capacity, it provides the versatility needed for construction, infrastructure, and industrial applications.
Key Specifications
-
Maximum Lifting Height: 17.40 m (≈ 57 ft)
-
Maximum Outreach: 13.48 m (≈ 44 ft 3 in)
-
Rated Capacity: 4,000 kg (≈ 8,818 lbs)
-
Capacity at Full Height: ≈ 2,500 kg
-
Engine Power: 70 kW / 92 hp
-
Unladen Weight: 11,275 kg (≈ 24,855 lbs)
-
Transport Dimensions:
• Length: 6.20 m
• Width: 2.38 m
• Height: 2.59 m -
Travel Speed: 28 km/h
-
Hydraulic Flow: ≈ 96 L/min
-
Steering Modes: 2-wheel, 4-wheel, and crab steering
-
Transmission: Hydrostatic with 2 forward / 2 reverse speeds
-
Outriggers: Manual vertical stabilizers
-
Tires: Standard construction profile with optional foam-filled versions
-
Frame Leveling: ± 10°
-
Turning Radius: 3.7 m (inside tires)
-
Other Features:
• Telescopic boom with quick-attach tool system
• ROPS / FOPS-certified cab with enhanced visibility
• Load moment indicator and safety cut-outs
• Heavy-duty axles for rough-terrain performance
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to deployment
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Heavy construction and infrastructure projects
-
Industrial material handling and loading
-
Equipment placement on elevated platforms or roofs
-
Warehousing and logistics operations
-
Utility and maintenance tasks in challenging terrain
Description
The D1OS-5 is a heavy-duty, 4-wheel diesel forklift designed for high-capacity load handling in rigorous industrial and warehouse settings. It’s built with durability, stability, and operator comfort in mind—ideal for lifting, stacking, and movement of heavy loads with reliability and performance.
Key Specifications
-
Rated Capacity: 11,000 kg (11 ton)
-
Load Center: 600 mm
-
Mast Lift Height: 4.30 m (approx.)
-
Engine Type: Diesel (high-torque)
-
Travel Speed (with / without load): ~ 29 km/h
-
Lift Speed (loaded / unloaded): ~ 0.375 m/s / ~ 0.430 m/s
-
Turning Radius: ~ 4.04 m
-
Overall Width: ~ 2,350 mm
-
Length to Fork Face: ~ 4,340 mm
-
Height to Top of Overhead Guard: ~ 2,765 mm
-
Weight (Operating): Approx. 18,900 kg
-
Gradeability: ~ 28 % (loaded)
-
Tires / Drive: Pneumatic / 4×2 configuration
-
Additional Features:
• Oil-cooled disc brakes
• Auto-shift transmission (3-speed)
• Pilot-actuated hydraulic controls
• Solid frame with reinforced mast
• Spacious operator forklift cab
Availability & Readiness
-
Units immediately available for rental across Saudi Arabia and GCC
-
Maintained under Dayim’s preventive maintenance regimen
-
Inspected, tested, and certified prior to dispatch
-
Fully supported by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rentals
Applications
-
Heavy-lift operations in factories, warehouses, and ports
-
Loading/unloading of containers, cargo, and bulk material
-
High-volume stacking and storage systems
-
Steel, timber, and heavy equipment handling
-
Industrial logistics across yards, sheds, and production zones
Description
The D1OS-5 is a heavy-duty, 4-wheel diesel forklift designed for high-capacity load handling in rigorous industrial and warehouse settings. It’s built with durability, stability, and operator comfort in mind—ideal for lifting, stacking, and movement of heavy loads with reliability and performance.
Key Specifications
-
Rated Capacity: 11,000 kg (11 ton)
-
Load Center: 600 mm
-
Mast Lift Height: 4.30 m (approx.)
-
Engine Type: Diesel (high-torque)
-
Travel Speed (with / without load): ~ 29 km/h
-
Lift Speed (loaded / unloaded): ~ 0.375 m/s / ~ 0.430 m/s
-
Turning Radius: ~ 4.04 m
-
Overall Width: ~ 2,350 mm
-
Length to Fork Face: ~ 4,340 mm
-
Height to Top of Overhead Guard: ~ 2,765 mm
-
Weight (Operating): Approx. 18,900 kg
-
Gradeability: ~ 28 % (loaded)
-
Tires / Drive: Pneumatic / 4×2 configuration
-
Additional Features:
• Oil-cooled disc brakes
• Auto-shift transmission (3-speed)
• Pilot-actuated hydraulic controls
• Solid frame with reinforced mast
• Spacious operator forklift cab
Availability & Readiness
-
Units immediately available for rental across Saudi Arabia and GCC
-
Maintained under Dayim’s preventive maintenance regimen
-
Inspected, tested, and certified prior to dispatch
-
Fully supported by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rentals
Applications
-
Heavy-lift operations in factories, warehouses, and ports
-
Loading/unloading of containers, cargo, and bulk material
-
High-volume stacking and storage systems
-
Steel, timber, and heavy equipment handling
-
Industrial logistics across yards, sheds, and production zones
Description
The Doosan D50C-5 is a powerful and durable diesel forklift built for heavy-duty industrial applications. Known for its reliability, stability, and operator comfort, it delivers excellent performance for material handling, loading, and logistics operations even in harsh environments.
Key Specifications
-
Rated Capacity: 5,000 kg (≈ 11,000 lb)
-
Load Center: 600 mm
-
Engine: Doosan DB-58, 91 hp (68 kW) diesel
-
Transmission: Fully automatic powershift
-
Travel Speed: 25 km/h (≈ 16 mph)
-
Lift Speed (Loaded / Unloaded): 0.45 m/s / 0.50 m/s
-
Gradeability (Loaded): 28 %
-
Mast Lift Height: 4.3 m (standard two-stage configuration)
-
Turning Radius: 2.92 m
-
Overall Length (to fork face): 3.23 m
-
Overall Width: 1.45 m
-
Overhead Guard Height: 2.24 m
-
Weight (Unladen): ~ 8,100 kg
-
Tires: Pneumatic (front drive / rear steer)
-
Brake System: Oil-cooled disc brakes
-
Hydraulic System Flow: 90 L/min
-
Features:
• Heavy-duty counterbalance chassis
• Reliable, low-emission diesel engine
• Reinforced mast for maximum visibility and strength
• Ergonomic operator cabin with suspension seat
• Easy maintenance access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Heavy material handling in warehouses and factories
-
Ports, terminals, and logistics operations
-
Construction and industrial supply yards
-
Steel, timber, and heavy manufacturing industries
-
Equipment and bulk material loading/unloading
Description
The Doosan D50C-5 is a powerful and durable diesel forklift built for heavy-duty industrial applications. Known for its reliability, stability, and operator comfort, it delivers excellent performance for material handling, loading, and logistics operations even in harsh environments.
Key Specifications
-
Rated Capacity: 5,000 kg (≈ 11,000 lb)
-
Load Center: 600 mm
-
Engine: Doosan DB-58, 91 hp (68 kW) diesel
-
Transmission: Fully automatic powershift
-
Travel Speed: 25 km/h (≈ 16 mph)
-
Lift Speed (Loaded / Unloaded): 0.45 m/s / 0.50 m/s
-
Gradeability (Loaded): 28 %
-
Mast Lift Height: 4.3 m (standard two-stage configuration)
-
Turning Radius: 2.92 m
-
Overall Length (to fork face): 3.23 m
-
Overall Width: 1.45 m
-
Overhead Guard Height: 2.24 m
-
Weight (Unladen): ~ 8,100 kg
-
Tires: Pneumatic (front drive / rear steer)
-
Brake System: Oil-cooled disc brakes
-
Hydraulic System Flow: 90 L/min
-
Features:
• Heavy-duty counterbalance chassis
• Reliable, low-emission diesel engine
• Reinforced mast for maximum visibility and strength
• Ergonomic operator cabin with suspension seat
• Easy maintenance access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Heavy material handling in warehouses and factories
-
Ports, terminals, and logistics operations
-
Construction and industrial supply yards
-
Steel, timber, and heavy manufacturing industries
-
Equipment and bulk material loading/unloading
Description
The Doosan D160S-5 is a high-capacity diesel forklift designed for heavy-duty industrial operations. Built for strength, safety, and operator comfort, it delivers reliable performance when handling large and bulky loads across ports, factories, and construction sites.
Key Specifications
-
Rated Capacity: 16,000 kg (≈ 35,000 lb)
-
Load Center: 600 mm
-
Engine Model: Doosan DL06, 6-cylinder diesel
-
Engine Power: 162 hp (121 kW) @ 2,100 rpm
-
Maximum Lift Height: 5.0 m
-
Travel Speed (Loaded / Unloaded): 29 / 33 km/h
-
Lift Speed (Loaded / Unloaded): 0.41 / 0.45 m/s
-
Gradeability (Loaded): 28 %
-
Turning Radius: 4.4 m
-
Operating Weight: 18,900 kg
-
Overall Width: 2,490 mm
-
Transmission: Full automatic powershift, 3 forward / 3 reverse
-
Brake System: Oil-cooled disc brakes
-
Mast Type: Triplex mast, with optional free lift
-
Tires: Pneumatic, heavy-duty construction grade
-
Cab Features:
• Ergonomic operator seat with suspension
• High-visibility overhead guard
• Low-noise, low-vibration cabin
• Clear dashboard with diagnostic indicators
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified prior to dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Available for short-term, long-term, or project-based rental contracts
Applications
-
Port and terminal heavy lifting operations
-
Steel manufacturing and fabrication sites
-
Large construction and infrastructure projects
-
Industrial logistics and warehouse yards
-
Container handling and cargo transport
Description
The Doosan D160S-5 is a high-capacity diesel forklift designed for heavy-duty industrial operations. Built for strength, safety, and operator comfort, it delivers reliable performance when handling large and bulky loads across ports, factories, and construction sites.
Key Specifications
-
Rated Capacity: 16,000 kg (≈ 35,000 lb)
-
Load Center: 600 mm
-
Engine Model: Doosan DL06, 6-cylinder diesel
-
Engine Power: 162 hp (121 kW) @ 2,100 rpm
-
Maximum Lift Height: 5.0 m
-
Travel Speed (Loaded / Unloaded): 29 / 33 km/h
-
Lift Speed (Loaded / Unloaded): 0.41 / 0.45 m/s
-
Gradeability (Loaded): 28 %
-
Turning Radius: 4.4 m
-
Operating Weight: 18,900 kg
-
Overall Width: 2,490 mm
-
Transmission: Full automatic powershift, 3 forward / 3 reverse
-
Brake System: Oil-cooled disc brakes
-
Mast Type: Triplex mast, with optional free lift
-
Tires: Pneumatic, heavy-duty construction grade
-
Cab Features:
• Ergonomic operator seat with suspension
• High-visibility overhead guard
• Low-noise, low-vibration cabin
• Clear dashboard with diagnostic indicators
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified prior to dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Available for short-term, long-term, or project-based rental contracts
Applications
-
Port and terminal heavy lifting operations
-
Steel manufacturing and fabrication sites
-
Large construction and infrastructure projects
-
Industrial logistics and warehouse yards
-
Container handling and cargo transport
Description
The Combilift C5000 XL is a versatile, multi-directional forklift that combines counterbalance, side-loader, and narrow aisle capabilities in a single machine. With a wide cab for operator comfort and flexible handling modes, it is ideal for handling long, bulky loads in tight aisles, warehouses, and industrial settings.
Key Specifications
-
Rated Capacity: 5,000 kg at 600 mm load center
-
Unladen Weight: ~ 6,800 kg
-
Engine Types Available: Diesel (Kubota V2403T), LPG
-
Standard Lift Height: 4,040 mm
-
Maximum Lift Height (mast raised): 5,005 mm
-
Closed Mast Height: 2,990 mm
-
Overall Length: 2,500 mm
-
Overall Width: 2,235 mm
-
Height Over Cab / Overhead Guard: 2,590 mm
-
Mast Travel (stroke): 1,340 mm
-
Ground Clearance (under mast): 280 mm
-
Ground Clearance at Wheelbase Center: 270 mm
-
Wheelbase: 2,070 mm
-
Front Track Width: 1,995 mm
-
Load Center Distance: 600 mm
-
Approach / Departure Angles: 45° / 45°
-
Ramp / Grade Angle Capability: 29°
-
Forward Tilt / Backward Tilt: 3° / 5°
-
Turning Radius (min. outside): 2,490 mm
-
Platform / Deck Height: 680 mm
-
Platform Length: 1,200 mm
-
Top Speed: 15 km/h
-
Gradeability: 15 %
Availability & Readiness
-
Units are ready to hire across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Handling long or heavy loads in narrow aisles
-
Steel, timber, pipe, and structural material movement
-
Warehouses where multi-directional access is needed
-
Industrial production flow lines
-
Loading/unloading in confined or constrained spaces
-
Mixed cargo operations requiring flexible orientation
Description
The Combilift C5000 XL is a versatile, multi-directional forklift that combines counterbalance, side-loader, and narrow aisle capabilities in a single machine. With a wide cab for operator comfort and flexible handling modes, it is ideal for handling long, bulky loads in tight aisles, warehouses, and industrial settings.
Key Specifications
-
Rated Capacity: 5,000 kg at 600 mm load center
-
Unladen Weight: ~ 6,800 kg
-
Engine Types Available: Diesel (Kubota V2403T), LPG
-
Standard Lift Height: 4,040 mm
-
Maximum Lift Height (mast raised): 5,005 mm
-
Closed Mast Height: 2,990 mm
-
Overall Length: 2,500 mm
-
Overall Width: 2,235 mm
-
Height Over Cab / Overhead Guard: 2,590 mm
-
Mast Travel (stroke): 1,340 mm
-
Ground Clearance (under mast): 280 mm
-
Ground Clearance at Wheelbase Center: 270 mm
-
Wheelbase: 2,070 mm
-
Front Track Width: 1,995 mm
-
Load Center Distance: 600 mm
-
Approach / Departure Angles: 45° / 45°
-
Ramp / Grade Angle Capability: 29°
-
Forward Tilt / Backward Tilt: 3° / 5°
-
Turning Radius (min. outside): 2,490 mm
-
Platform / Deck Height: 680 mm
-
Platform Length: 1,200 mm
-
Top Speed: 15 km/h
-
Gradeability: 15 %
Availability & Readiness
-
Units are ready to hire across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Handling long or heavy loads in narrow aisles
-
Steel, timber, pipe, and structural material movement
-
Warehouses where multi-directional access is needed
-
Industrial production flow lines
-
Loading/unloading in confined or constrained spaces
-
Mixed cargo operations requiring flexible orientation
Description
The Manitou MI-X 70 D is a robust diesel-powered mast forklift engineered to handle heavy industrial loads with precision and reliability. Designed for demanding warehouse, construction, and outdoor environments, it combines strong lifting capacity with ergonomic operator features and a durable chassis.
Key Specifications
-
Rated Capacity: 7,000 kg
-
Load Center: 600 mm
-
Maximum Lift Height: 6,000 mm
-
Service Weight (unladen): 9,595 kg
-
Engine: Cummins QSB3.3
-
Engine Power: 74 kW (~ 99 hp)
-
Travel Speed (laden / unladen): 26 km/h / 29 km/h
-
Lift Speed (laden / unladen): 0.41 m/s / 0.46 m/s
-
Lowering Speed (laden / unladen): 0.48 m/s / 0.42 m/s
-
Gradeability (laden): 36 %
-
Overall Dimensions:
• Width: 1,990 mm
• Length (to fork face): 3,584 mm
• Height (overhead guard): 2,430 mm -
Ground Clearance:
• Under mast: 190 mm
• Center of wheelbase: 270 mm -
Turning Radius (inside): 1,222 mm
-
Wheels / Tyres: Pneumatic (4 / 2)
-
Other Features:
• Full counterbalance mast with tilts (6° forward / 12° backward)
• Strong build for mast and carriage
• Operator-focused cab layout, good visibility, two-side access
• Maintenance-friendly design (accessible components, efficient hose routing)
Availability & Readiness
-
Units ready for hire across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Heavy load stacking and warehouse operations
-
Construction site material handling
-
Container, pallet, and bulk cargo movement
-
Steel / structural component logistics
-
Industrial facilities requiring high-capacity forklifts
Description
The Manitou MI-X 70 D is a robust diesel-powered mast forklift engineered to handle heavy industrial loads with precision and reliability. Designed for demanding warehouse, construction, and outdoor environments, it combines strong lifting capacity with ergonomic operator features and a durable chassis.
Key Specifications
-
Rated Capacity: 7,000 kg
-
Load Center: 600 mm
-
Maximum Lift Height: 6,000 mm
-
Service Weight (unladen): 9,595 kg
-
Engine: Cummins QSB3.3
-
Engine Power: 74 kW (~ 99 hp)
-
Travel Speed (laden / unladen): 26 km/h / 29 km/h
-
Lift Speed (laden / unladen): 0.41 m/s / 0.46 m/s
-
Lowering Speed (laden / unladen): 0.48 m/s / 0.42 m/s
-
Gradeability (laden): 36 %
-
Overall Dimensions:
• Width: 1,990 mm
• Length (to fork face): 3,584 mm
• Height (overhead guard): 2,430 mm -
Ground Clearance:
• Under mast: 190 mm
• Center of wheelbase: 270 mm -
Turning Radius (inside): 1,222 mm
-
Wheels / Tyres: Pneumatic (4 / 2)
-
Other Features:
• Full counterbalance mast with tilts (6° forward / 12° backward)
• Strong build for mast and carriage
• Operator-focused cab layout, good visibility, two-side access
• Maintenance-friendly design (accessible components, efficient hose routing)
Availability & Readiness
-
Units ready for hire across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Heavy load stacking and warehouse operations
-
Construction site material handling
-
Container, pallet, and bulk cargo movement
-
Steel / structural component logistics
-
Industrial facilities requiring high-capacity forklifts
