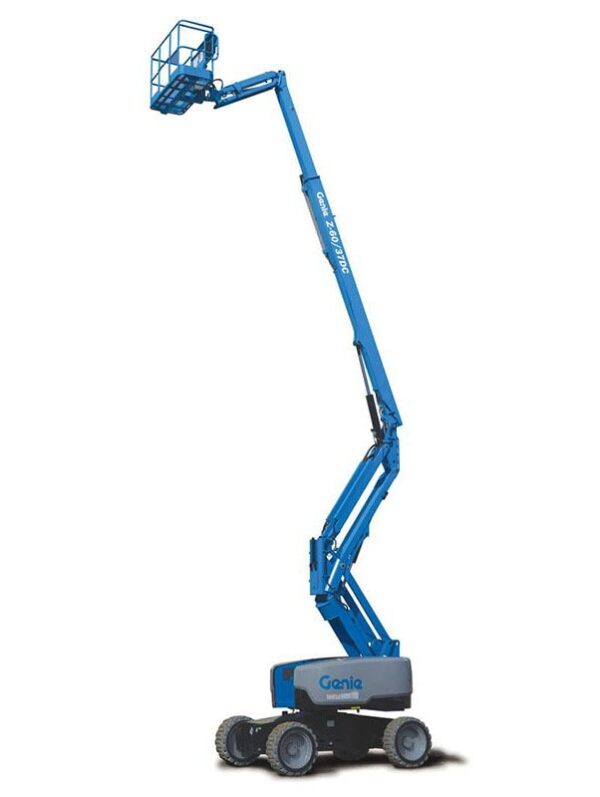

20m Genie Z-60/37 DC/FE Hybrid Articulating Boom Lift

20m Genie Z-60/37 DC/FE Hybrid Articulating Boom Lift

Technical Details:

Working Height:

27.91 m

Outreach:

23.32 m

Machine Width:

2.49 m

Platform Capacity:

227 kg

Dimension:

12.9 x 2.90 m

Weight:

17563 kg

Platform Size:

2.44 x 0.91 kg

- +

Product Details

Description

The Genie Z-60/37 DC/FE is a hybrid articulating boom lift offering both all-electric and hybrid (diesel + battery) modes. In electric mode it runs emission-free for a full workday on a single charge; in hybrid mode it can run for up to a week on one diesel tank. Its design combines quiet indoor operation with tough outdoor performance, making it ideal for mixed environments that demand flexibility and low operating costs.

Key Specifications

  • Working Height: 20.16 m (≈ 65 ft 7 in)

  • Platform Height: 18.16 m (≈ 59 ft 7 in)

  • Horizontal Reach: 11.15 m (≈ 36 ft 7 in)

  • Up-and-Over Clearance: 7.39 m (≈ 24 ft 3 in)

  • Below-Ground Reach: 2.46 m (≈ 8 ft 1 in)

  • Platform Capacity (Unrestricted): 227 kg (≈ 500 lbs)

  • Platform Dimensions: 2.44 m × 0.91 m

  • Platform Rotation: 160°

  • Jib / Articulation: 1.52 m jib with 135° vertical rotation

  • Turntable Rotation: 355° non-continuous

  • Drive Speed (Stowed): 6.44 km/h

  • Drive Speed (Raised): 1.10 km/h

  • Gradeability: 45 %

  • Tire Contact Pressure: ~ 483 kPa

  • Weight (Electric mode): ~ 7,530 kg

  • Weight (Hybrid mode): ~ 7,756 kg

  • Fuel Tank Capacity: 64 L

  • Hydraulic Tank Capacity: 68.1 L

  • Sound Levels (Ground / Platform): 70 dB(A) in electric mode; 77 dB(A) in hybrid mode at ground

  • Power / Drive System:
     • Drive: 34V 3-phase AC
     • Battery Pack (Electric): 48V DC, 390 Ah (FLA)
     • Battery Pack (FE / Hybrid): 48V DC, 415 Ah (AGM)
     • Engine (for hybrid mode): Kubota D1105, 24.8 HP

  • Chassis & Features:
     • 4WD with active oscillating axle
     • Dual parallelogram linkage
     • Proportional boom and drive control
     • Full-time oscillating chassis
     • Rough terrain, foam-filled tires

Availability & Readiness

  • Units available for immediate rental across Saudi Arabia and the GCC

  • Maintained under Dayim’s preventive maintenance regime

  • Inspected, tested, and certified prior to dispatch

  • Supported by Dayim’s 24/7 service, logistics, and technical teams

  • Offered under short-term, long-term, or project-based contracts

Applications

  • Indoor/outdoor construction, maintenance, and facility works

  • Sites demanding low emissions and noise control

  • Mixed job environments with indoor/outdoor transitions

  • Industrial plants, stadiums, and arenas

  • Telecommunications, power, and infrastructure servicing

  • Tasks requiring extended reach with flexible power sourcing
