Product Details
Description

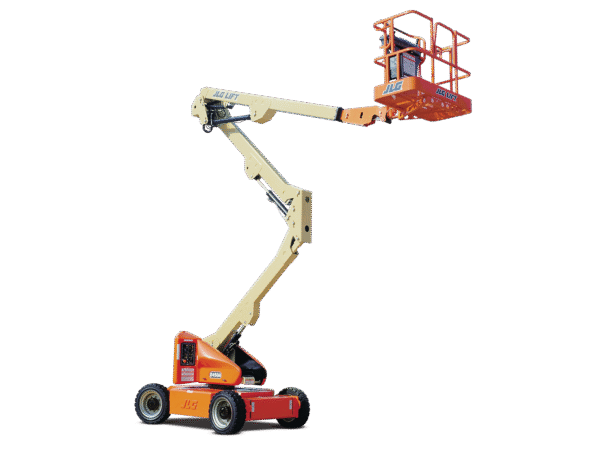

The JLG E450AJ is an electric-powered articulating boom lift designed for efficient operation in indoor and outdoor environments where low noise and zero emissions are required. With its exceptional up-and-over reach, smooth maneuverability, and proportional control system, it provides safe and reliable access to hard-to-reach areas while reducing operational costs.
Key Specifications
-
Working Height: 15.72 m (51 ft 7 in)
-
Platform Height: 13.72 m (45 ft)
-
Horizontal Reach: 7.47 m (24 ft 6 in)
-
Up-and-Over Clearance: 7.47 m (24 ft 6 in)
-
Platform Capacity: 230 kg (500 lbs)
-
Platform Size: 1.52 m × 0.76 m (5 ft × 2 ft 6 in)
-
Jib Length / Range of Motion: 1.24 m (4 ft) / 141°
-
Platform Rotation: 180° hydraulic
-
Turntable Rotation: 355° non-continuous
-
Drive Speed (Stowed): 4.8 km/h (3 mph)
-
Drive Speed (Raised): 1.1 km/h (0.68 mph)
-
Gradeability: 30 %
-
Machine Weight: 6,577 kg (≈ 14,500 lbs)
-
Ground Clearance: 0.10 m (4 in)
-
Power Source: 48 V DC (8 × 6 V batteries)
-
Hydraulic Tank Capacity: 26 L (6.8 gal)
-
Stowed Dimensions:
• Length: 6.65 m (21 ft 10 in)
• Width: 1.75 m (5 ft 9 in)
• Height: 2.00 m (6 ft 7 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified prior to hire
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Indoor industrial and warehouse maintenance
-
Construction, fit-out, and façade access
-
Electrical, HVAC, and lighting installations
-
Oil & Gas and industrial facility servicing
-
Clean, low-emission, or sound-sensitive environments
-
Event setup, rigging, and high-access projects
Description
The Manitou 150 AETJ-C is an electric, articulated boom lift engineered to deliver reliable vertical and outreach performance in indoor and outdoor settings. Its combination of compact dimensions, smooth articulation, and battery-powered drive makes it ideal for sites that require flexibility and minimal emissions while maintaining industrial capacity.
Key Specifications
-
Working Height: 15.00 m (≈ 49 ft 3 in)
-
Platform Height: 13.00 m (≈ 42 ft 7 in)
-
Maximum Outreach: 7.60 m (≈ 24 ft 11 in)
-
Platform Capacity: 200 kg (≈ 441 lbs)
-
Pendular Arm Rotation (Top / Bottom): +65° / −65°
-
Turret Rotation: 355° continuous
-
Platform Rotation (Right / Left): 66° / 59°
-
Drive Speed (Stowed): 5.0 km/h
-
Drive Speed (Raised): 0.60 km/h
-
Gradeability: 22 %
-
Permissible Leveling: 3°
-
Machine Dimensions (Stowed):
• Length: 4.40 m
• Width: 1.50 m
• Height: 2.08 m -
Transport Dimensions:
• Overall Length: 6.05 m
• Overall Height: 1.97 m -
Platform Dimensions: 1.20 m × 0.92 m
-
Wheelbase: 2.00 m
-
Ground Clearance (Center): 0.14 m
-
Machine Weight: 6,975 kg
-
Power / Drive System:
• Electric drive: 48 V / 240 Ah battery
• Two 3 kW electric motors
• Lift motor: 3.70 kW
• On-board charger: 48 V / 30 A -
Tires: Solid non-marking
-
Other Performance:
• External turning radius: 3.96 m
• Counterweight offset when turret at 90°: 0.12 m
Availability & Readiness
-
Available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before each hire
-
Supported 24/7 by Dayim’s service, logistics, and technical teams
-
Rental offerings include short-term, long-term, and project-based contracts
Applications
-
Indoor / outdoor industrial maintenance sites
-
Facility, factory, or warehouse upgrades
-
Clean or semi-clean environments requiring low noise and zero emissions
-
Structural or infrastructure installations with limited footprint
-
Event and exhibition elevated works
-
Medium-height access across industrial plants
Description
The Manitou 150 AETJ-C is an electric, articulated boom lift engineered to deliver reliable vertical and outreach performance in indoor and outdoor settings. Its combination of compact dimensions, smooth articulation, and battery-powered drive makes it ideal for sites that require flexibility and minimal emissions while maintaining industrial capacity.
Key Specifications
-
Working Height: 15.00 m (≈ 49 ft 3 in)
-
Platform Height: 13.00 m (≈ 42 ft 7 in)
-
Maximum Outreach: 7.60 m (≈ 24 ft 11 in)
-
Platform Capacity: 200 kg (≈ 441 lbs)
-
Pendular Arm Rotation (Top / Bottom): +65° / −65°
-
Turret Rotation: 355° continuous
-
Platform Rotation (Right / Left): 66° / 59°
-
Drive Speed (Stowed): 5.0 km/h
-
Drive Speed (Raised): 0.60 km/h
-
Gradeability: 22 %
-
Permissible Leveling: 3°
-
Machine Dimensions (Stowed):
• Length: 4.40 m
• Width: 1.50 m
• Height: 2.08 m -
Transport Dimensions:
• Overall Length: 6.05 m
• Overall Height: 1.97 m -
Platform Dimensions: 1.20 m × 0.92 m
-
Wheelbase: 2.00 m
-
Ground Clearance (Center): 0.14 m
-
Machine Weight: 6,975 kg
-
Power / Drive System:
• Electric drive: 48 V / 240 Ah battery
• Two 3 kW electric motors
• Lift motor: 3.70 kW
• On-board charger: 48 V / 30 A -
Tires: Solid non-marking
-
Other Performance:
• External turning radius: 3.96 m
• Counterweight offset when turret at 90°: 0.12 m
Availability & Readiness
-
Available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before each hire
-
Supported 24/7 by Dayim’s service, logistics, and technical teams
-
Rental offerings include short-term, long-term, and project-based contracts
Applications
-
Indoor / outdoor industrial maintenance sites
-
Facility, factory, or warehouse upgrades
-
Clean or semi-clean environments requiring low noise and zero emissions
-
Structural or infrastructure installations with limited footprint
-
Event and exhibition elevated works
-
Medium-height access across industrial plants
Description
The Genie Z-60/37 DC/FE is a hybrid articulating boom lift offering both all-electric and hybrid (diesel + battery) modes. In electric mode it runs emission-free for a full workday on a single charge; in hybrid mode it can run for up to a week on one diesel tank. Its design combines quiet indoor operation with tough outdoor performance, making it ideal for mixed environments that demand flexibility and low operating costs.
Key Specifications
-
Working Height: 20.16 m (≈ 65 ft 7 in)
-
Platform Height: 18.16 m (≈ 59 ft 7 in)
-
Horizontal Reach: 11.15 m (≈ 36 ft 7 in)
-
Up-and-Over Clearance: 7.39 m (≈ 24 ft 3 in)
-
Below-Ground Reach: 2.46 m (≈ 8 ft 1 in)
-
Platform Capacity (Unrestricted): 227 kg (≈ 500 lbs)
-
Platform Dimensions: 2.44 m × 0.91 m
-
Platform Rotation: 160°
-
Jib / Articulation: 1.52 m jib with 135° vertical rotation
-
Turntable Rotation: 355° non-continuous
-
Drive Speed (Stowed): 6.44 km/h
-
Drive Speed (Raised): 1.10 km/h
-
Gradeability: 45 %
-
Tire Contact Pressure: ~ 483 kPa
-
Weight (Electric mode): ~ 7,530 kg
-
Weight (Hybrid mode): ~ 7,756 kg
-
Fuel Tank Capacity: 64 L
-
Hydraulic Tank Capacity: 68.1 L
-
Sound Levels (Ground / Platform): 70 dB(A) in electric mode; 77 dB(A) in hybrid mode at ground
-
Power / Drive System:
• Drive: 34V 3-phase AC
• Battery Pack (Electric): 48V DC, 390 Ah (FLA)
• Battery Pack (FE / Hybrid): 48V DC, 415 Ah (AGM)
• Engine (for hybrid mode): Kubota D1105, 24.8 HP -
Chassis & Features:
• 4WD with active oscillating axle
• Dual parallelogram linkage
• Proportional boom and drive control
• Full-time oscillating chassis
• Rough terrain, foam-filled tires
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, tested, and certified prior to dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered under short-term, long-term, or project-based contracts
Applications
-
Indoor/outdoor construction, maintenance, and facility works
-
Sites demanding low emissions and noise control
-
Mixed job environments with indoor/outdoor transitions
-
Industrial plants, stadiums, and arenas
-
Telecommunications, power, and infrastructure servicing
-
Tasks requiring extended reach with flexible power sourcing
Description
The Genie Z-60/37 DC/FE is a hybrid articulating boom lift offering both all-electric and hybrid (diesel + battery) modes. In electric mode it runs emission-free for a full workday on a single charge; in hybrid mode it can run for up to a week on one diesel tank. Its design combines quiet indoor operation with tough outdoor performance, making it ideal for mixed environments that demand flexibility and low operating costs.
Key Specifications
-
Working Height: 20.16 m (≈ 65 ft 7 in)
-
Platform Height: 18.16 m (≈ 59 ft 7 in)
-
Horizontal Reach: 11.15 m (≈ 36 ft 7 in)
-
Up-and-Over Clearance: 7.39 m (≈ 24 ft 3 in)
-
Below-Ground Reach: 2.46 m (≈ 8 ft 1 in)
-
Platform Capacity (Unrestricted): 227 kg (≈ 500 lbs)
-
Platform Dimensions: 2.44 m × 0.91 m
-
Platform Rotation: 160°
-
Jib / Articulation: 1.52 m jib with 135° vertical rotation
-
Turntable Rotation: 355° non-continuous
-
Drive Speed (Stowed): 6.44 km/h
-
Drive Speed (Raised): 1.10 km/h
-
Gradeability: 45 %
-
Tire Contact Pressure: ~ 483 kPa
-
Weight (Electric mode): ~ 7,530 kg
-
Weight (Hybrid mode): ~ 7,756 kg
-
Fuel Tank Capacity: 64 L
-
Hydraulic Tank Capacity: 68.1 L
-
Sound Levels (Ground / Platform): 70 dB(A) in electric mode; 77 dB(A) in hybrid mode at ground
-
Power / Drive System:
• Drive: 34V 3-phase AC
• Battery Pack (Electric): 48V DC, 390 Ah (FLA)
• Battery Pack (FE / Hybrid): 48V DC, 415 Ah (AGM)
• Engine (for hybrid mode): Kubota D1105, 24.8 HP -
Chassis & Features:
• 4WD with active oscillating axle
• Dual parallelogram linkage
• Proportional boom and drive control
• Full-time oscillating chassis
• Rough terrain, foam-filled tires
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, tested, and certified prior to dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered under short-term, long-term, or project-based contracts
Applications
-
Indoor/outdoor construction, maintenance, and facility works
-
Sites demanding low emissions and noise control
-
Mixed job environments with indoor/outdoor transitions
-
Industrial plants, stadiums, and arenas
-
Telecommunications, power, and infrastructure servicing
-
Tasks requiring extended reach with flexible power sourcing
Description
The Genie AWP-40S is a compact, lightweight vertical mast lift designed for efficient vertical access with easy setup, maneuverability, and transport. It is ideal for light-duty maintenance, installations, and operations in tight indoor or outdoor spaces, especially where access through doorways or narrow paths is required.
Key Specifications
-
Working Height: 14.29 m (46 ft 4 in)
-
Platform Height: 12.29 m (40 ft 4 in)
-
Platform Capacity: 136 kg (300 lbs)
-
Stowed Height: 2.78 m (9 ft 1.5 in)
-
Machine Width: 0.74 m (2 ft 5 in)
-
Machine Weight: ≈ 472 kg (1,040 lbs)
-
Features / Design:
• Tilt-back frame for easy loading through doorways
• Small outrigger footprint
• Durable Genie mast construction
• Simple one-person operation
• Versions with AC, DC, or battery drive
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Indoor facility maintenance and servicing
-
Tight-access installations or repair works
-
Lighting, electrical, or HVAC access
-
Retail, commercial, or institutional environments
-
Shop floors, warehouses, showrooms
-
Projects requiring vertical access in compact spaces
Description
The Genie AWP-40S is a compact, lightweight vertical mast lift designed for efficient vertical access with easy setup, maneuverability, and transport. It is ideal for light-duty maintenance, installations, and operations in tight indoor or outdoor spaces, especially where access through doorways or narrow paths is required.
Key Specifications
-
Working Height: 14.29 m (46 ft 4 in)
-
Platform Height: 12.29 m (40 ft 4 in)
-
Platform Capacity: 136 kg (300 lbs)
-
Stowed Height: 2.78 m (9 ft 1.5 in)
-
Machine Width: 0.74 m (2 ft 5 in)
-
Machine Weight: ≈ 472 kg (1,040 lbs)
-
Features / Design:
• Tilt-back frame for easy loading through doorways
• Small outrigger footprint
• Durable Genie mast construction
• Simple one-person operation
• Versions with AC, DC, or battery drive
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Indoor facility maintenance and servicing
-
Tight-access installations or repair works
-
Lighting, electrical, or HVAC access
-
Retail, commercial, or institutional environments
-
Shop floors, warehouses, showrooms
-
Projects requiring vertical access in compact spaces
Description
The Genie Z-33/18 is an electric articulating boom lift built to handle both indoor and light outdoor tasks. With its compact dimensions, proportional controls, and zero tailswing design, it delivers versatile access capabilities in tight spaces without sacrificing performance or stability.
Key Specifications
-
Working Height: 12.00 m (≈ 39 ft 4 in)
-
Platform Height: 10.00 m (≈ 32 ft 10 in)
-
Horizontal Reach: 5.57 m (≈ 18 ft 3 in)
-
Up-and-Over Clearance: 4.28 m (≈ 14 ft 1 in)
-
Platform Capacity: 200 kg (≈ 440 lbs)
-
Platform Size: 0.76 m × 1.17 m (2 ft 6 in × 3 ft 10 in)
-
Stowed Dimensions:
• Length: 4.17 m (≈ 13 ft 8 in)
• Width: 1.50 m (≈ 4 ft 11 in)
• Height: 1.98 m (≈ 6 ft 6 in) -
Wheelbase: 1.90 m (≈ 6 ft 3 in)
-
Ground Clearance (Center): 0.15 m (≈ 6 in)
-
Drive Speed (Stowed): 5.2 km/h (≈ 3.2 mph)
-
Gradeability: 30 %
-
Turning Radius (Inside): 1.90 m
-
Turntable Rotation: 400° non-continuous
-
Power / Drive:
• 48 V DC electric drive (three-phase AC motors)
• Battery-powered; deep-cycle battery pack -
Hydraulic Tank Capacity: 20.8 L
-
Weight: 3,665 kg
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Indoor facility and warehouse maintenance
-
Exterior building and façade work
-
Electrical, HVAC, and lighting installation
-
Retail, showroom, and commercial interior work
-
Signage, display, and ceiling applications
-
Work in restricted access zones and tight spaces
Description
The Genie Z-33/18 is an electric articulating boom lift built to handle both indoor and light outdoor tasks. With its compact dimensions, proportional controls, and zero tailswing design, it delivers versatile access capabilities in tight spaces without sacrificing performance or stability.
Key Specifications
-
Working Height: 12.00 m (≈ 39 ft 4 in)
-
Platform Height: 10.00 m (≈ 32 ft 10 in)
-
Horizontal Reach: 5.57 m (≈ 18 ft 3 in)
-
Up-and-Over Clearance: 4.28 m (≈ 14 ft 1 in)
-
Platform Capacity: 200 kg (≈ 440 lbs)
-
Platform Size: 0.76 m × 1.17 m (2 ft 6 in × 3 ft 10 in)
-
Stowed Dimensions:
• Length: 4.17 m (≈ 13 ft 8 in)
• Width: 1.50 m (≈ 4 ft 11 in)
• Height: 1.98 m (≈ 6 ft 6 in) -
Wheelbase: 1.90 m (≈ 6 ft 3 in)
-
Ground Clearance (Center): 0.15 m (≈ 6 in)
-
Drive Speed (Stowed): 5.2 km/h (≈ 3.2 mph)
-
Gradeability: 30 %
-
Turning Radius (Inside): 1.90 m
-
Turntable Rotation: 400° non-continuous
-
Power / Drive:
• 48 V DC electric drive (three-phase AC motors)
• Battery-powered; deep-cycle battery pack -
Hydraulic Tank Capacity: 20.8 L
-
Weight: 3,665 kg
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Indoor facility and warehouse maintenance
-
Exterior building and façade work
-
Electrical, HVAC, and lighting installation
-
Retail, showroom, and commercial interior work
-
Signage, display, and ceiling applications
-
Work in restricted access zones and tight spaces
Description
The JLG E600J is a high-reach electric / hybrid boom lift engineered for low-emission, low-noise operation while maintaining full reach and performance. It combines excellent vertical access with smart drive and steering systems to perform equally well indoors and on moderate outdoor terrain.
Key Specifications
-
Working Height: 18.36 m (≈ 60 ft 3 in)
-
Horizontal Reach: 13.18 m (≈ 43 ft 3 in)
-
Platform Capacity: 227 kg (500 lb)
-
Swing Range: ~ 400° non-continuous
-
Rotation: 180° hydraulic platform rotator
-
Weight (Typical): 6,894 kg (≈ 15,200 lb)
-
Gradeability: 2WD: 30 %, 4WD: 45 %
-
Drive Speed (Stowed): 4.83 km/h
-
Axle Oscillation: 0.20 m (8 in)
-
Ground Clearance: ~ 0.30 m
-
Enclosure & Features:
• Oscillating front axle
• Automatic traction control (ATC)
• QuikCharge GenSet option
• 48 V DC electrical system with deep-cycle batteries
• Foam-filled / non-marking tires
• Compact frame for indoor-to-outdoor transitions
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Thoroughly inspected, tested, and certified before each dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered under short-term, long-term, or project-based rental contracts
Applications
-
Indoor industrial, warehouse & clean facility work
-
Exterior façade, cladding, and maintenance operations
-
Environments requiring quiet and low-emission access
-
Telecom, utility, and power plant servicing
-
Sports, exhibition, stadium, and event installations
-
Areas where indoor/outdoor flexibility is needed
Description
The JLG E600J is a high-reach electric / hybrid boom lift engineered for low-emission, low-noise operation while maintaining full reach and performance. It combines excellent vertical access with smart drive and steering systems to perform equally well indoors and on moderate outdoor terrain.
Key Specifications
-
Working Height: 18.36 m (≈ 60 ft 3 in)
-
Horizontal Reach: 13.18 m (≈ 43 ft 3 in)
-
Platform Capacity: 227 kg (500 lb)
-
Swing Range: ~ 400° non-continuous
-
Rotation: 180° hydraulic platform rotator
-
Weight (Typical): 6,894 kg (≈ 15,200 lb)
-
Gradeability: 2WD: 30 %, 4WD: 45 %
-
Drive Speed (Stowed): 4.83 km/h
-
Axle Oscillation: 0.20 m (8 in)
-
Ground Clearance: ~ 0.30 m
-
Enclosure & Features:
• Oscillating front axle
• Automatic traction control (ATC)
• QuikCharge GenSet option
• 48 V DC electrical system with deep-cycle batteries
• Foam-filled / non-marking tires
• Compact frame for indoor-to-outdoor transitions
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Thoroughly inspected, tested, and certified before each dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered under short-term, long-term, or project-based rental contracts
Applications
-
Indoor industrial, warehouse & clean facility work
-
Exterior façade, cladding, and maintenance operations
-
Environments requiring quiet and low-emission access
-
Telecom, utility, and power plant servicing
-
Sports, exhibition, stadium, and event installations
-
Areas where indoor/outdoor flexibility is needed
