Product Details
Description

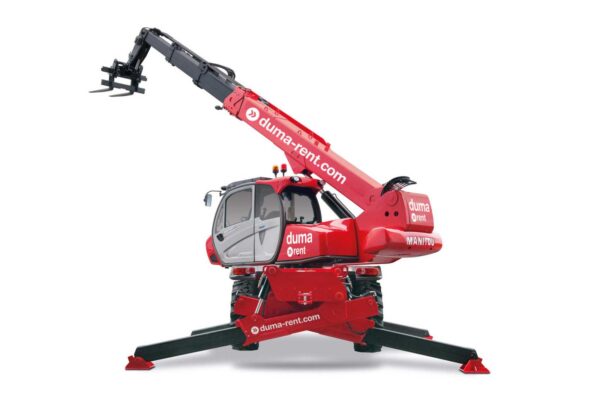

The Manitou MRT 2550 is a high-capacity rotating telehandler that combines the functionality of a telehandler, crane, and work platform in one machine. With four-section boom and full 360° turret rotation, it delivers exceptional versatility for lifting, placing, and access tasks across construction, industrial, and infrastructure sites.
Key Specifications
-
Max Lifting Capacity: 4,999 kg
-
Max Working Height: 24.70 m
-
Max Horizontal Reach: 21.40 m
-
Engine: Mercedes OM 934 E4-5, 156 hp (115 kW)
-
Transmission: Hydrostatic drive + 2-speed gearbox
-
Fuel Tank Capacity: 305 L
-
Hydraulic Oil Tank Capacity: 225 L
-
Weight (Unladen): ~ 18,900 kg
-
Dimensions (Stowed):
• Length (to fork): 7.84 m
• Overall length (forks): 9.03 m
• Width (wheels): 2.49 m
• Transport height: 3.05 m -
Ground Clearance (Center): 0.35 m
-
Wheelbase: 3.05 m
-
Turning Radius (Outside Tires): 5.23 m
-
Max Travel Speed: 40 km/h
-
Drawbar Pull: 8,700 daN
-
Tires: 445/65 R22.5 pneumatic
-
Stabilizers: Telescopic duplex
-
Other Features:
• 3-in-1 capability: telehandler, crane, work platform
• E-RECO attachment recognition system
• Frame leveling (± 8°)
• Multiple steering modes (2WD, 4WD, crab)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered on short-term, long-term, and project-based rental contracts
Applications
-
Material handling on construction and infrastructure sites
-
Crane work and elevation tasks in constrained zones
-
Work platform tasks (maintenance, repair, installation)
-
Remote or mixed terrain operations
-
Logistics and heavy lifting in industrial yards
Description
The Manitou MT-X 1840 is a heavy-duty telescopic handler designed for demanding lifting, placement, and material handling tasks. With a 4 ton rated capacity and a high reach envelope, it’s well suited for construction, industrial, and infrastructure sites. Its robust hydraulics, stabilizers, and frame-leveling system support safe operations in uneven terrain.
Key Specifications
-
Rated Lifting Capacity: 4,000 kg
-
Maximum Lifting Height: 17.55 m
-
Maximum Forward Reach: 13.08 m
-
Engine / Powerplant: Perkins diesel, ~ 74.5 kW
-
Unladen Weight: ~ 11,630 kg
-
Transport Dimensions:
• Length: ~ 6.16 m
• Width: ~ 2.42 m
• Height: ~ 2.45 m -
Travel Speed: ~ 24.9 km/h
-
Frame Leveling: ± 9°
-
Stabilization: Outriggers / stabilizers for lateral and frontal support
-
Features & Structure:
• Manual / stabilized vertical mast and boom
• Wide stabilizer legs for improved lateral stability
• Compact profile for transport and site maneuvering
• Compatible with multiple attachments and quick-change systems
Availability & Readiness
-
Available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before deployment
-
Supported by 24/7 service, logistics, and technical teams
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure material handling
-
Loading and placement in tall / hard-to-reach zones
-
Handling operations at height (e.g. placing façade panels)
-
Industrial / warehouse lifting tasks
-
Utility and infrastructure site support
Description
The Manitou MT-X 1840 is a heavy-duty telescopic handler designed for demanding lifting, placement, and material handling tasks. With a 4 ton rated capacity and a high reach envelope, it’s well suited for construction, industrial, and infrastructure sites. Its robust hydraulics, stabilizers, and frame-leveling system support safe operations in uneven terrain.
Key Specifications
-
Rated Lifting Capacity: 4,000 kg
-
Maximum Lifting Height: 17.55 m
-
Maximum Forward Reach: 13.08 m
-
Engine / Powerplant: Perkins diesel, ~ 74.5 kW
-
Unladen Weight: ~ 11,630 kg
-
Transport Dimensions:
• Length: ~ 6.16 m
• Width: ~ 2.42 m
• Height: ~ 2.45 m -
Travel Speed: ~ 24.9 km/h
-
Frame Leveling: ± 9°
-
Stabilization: Outriggers / stabilizers for lateral and frontal support
-
Features & Structure:
• Manual / stabilized vertical mast and boom
• Wide stabilizer legs for improved lateral stability
• Compact profile for transport and site maneuvering
• Compatible with multiple attachments and quick-change systems
Availability & Readiness
-
Available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before deployment
-
Supported by 24/7 service, logistics, and technical teams
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure material handling
-
Loading and placement in tall / hard-to-reach zones
-
Handling operations at height (e.g. placing façade panels)
-
Industrial / warehouse lifting tasks
-
Utility and infrastructure site support
Description
The Doosan D50C-5 is a powerful and durable diesel forklift built for heavy-duty industrial applications. Known for its reliability, stability, and operator comfort, it delivers excellent performance for material handling, loading, and logistics operations even in harsh environments.
Key Specifications
-
Rated Capacity: 5,000 kg (≈ 11,000 lb)
-
Load Center: 600 mm
-
Engine: Doosan DB-58, 91 hp (68 kW) diesel
-
Transmission: Fully automatic powershift
-
Travel Speed: 25 km/h (≈ 16 mph)
-
Lift Speed (Loaded / Unloaded): 0.45 m/s / 0.50 m/s
-
Gradeability (Loaded): 28 %
-
Mast Lift Height: 4.3 m (standard two-stage configuration)
-
Turning Radius: 2.92 m
-
Overall Length (to fork face): 3.23 m
-
Overall Width: 1.45 m
-
Overhead Guard Height: 2.24 m
-
Weight (Unladen): ~ 8,100 kg
-
Tires: Pneumatic (front drive / rear steer)
-
Brake System: Oil-cooled disc brakes
-
Hydraulic System Flow: 90 L/min
-
Features:
• Heavy-duty counterbalance chassis
• Reliable, low-emission diesel engine
• Reinforced mast for maximum visibility and strength
• Ergonomic operator cabin with suspension seat
• Easy maintenance access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Heavy material handling in warehouses and factories
-
Ports, terminals, and logistics operations
-
Construction and industrial supply yards
-
Steel, timber, and heavy manufacturing industries
-
Equipment and bulk material loading/unloading
Description
The Doosan D50C-5 is a powerful and durable diesel forklift built for heavy-duty industrial applications. Known for its reliability, stability, and operator comfort, it delivers excellent performance for material handling, loading, and logistics operations even in harsh environments.
Key Specifications
-
Rated Capacity: 5,000 kg (≈ 11,000 lb)
-
Load Center: 600 mm
-
Engine: Doosan DB-58, 91 hp (68 kW) diesel
-
Transmission: Fully automatic powershift
-
Travel Speed: 25 km/h (≈ 16 mph)
-
Lift Speed (Loaded / Unloaded): 0.45 m/s / 0.50 m/s
-
Gradeability (Loaded): 28 %
-
Mast Lift Height: 4.3 m (standard two-stage configuration)
-
Turning Radius: 2.92 m
-
Overall Length (to fork face): 3.23 m
-
Overall Width: 1.45 m
-
Overhead Guard Height: 2.24 m
-
Weight (Unladen): ~ 8,100 kg
-
Tires: Pneumatic (front drive / rear steer)
-
Brake System: Oil-cooled disc brakes
-
Hydraulic System Flow: 90 L/min
-
Features:
• Heavy-duty counterbalance chassis
• Reliable, low-emission diesel engine
• Reinforced mast for maximum visibility and strength
• Ergonomic operator cabin with suspension seat
• Easy maintenance access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Heavy material handling in warehouses and factories
-
Ports, terminals, and logistics operations
-
Construction and industrial supply yards
-
Steel, timber, and heavy manufacturing industries
-
Equipment and bulk material loading/unloading
Description
The Doosan D160S-5 is a high-capacity diesel forklift designed for heavy-duty industrial operations. Built for strength, safety, and operator comfort, it delivers reliable performance when handling large and bulky loads across ports, factories, and construction sites.
Key Specifications
-
Rated Capacity: 16,000 kg (≈ 35,000 lb)
-
Load Center: 600 mm
-
Engine Model: Doosan DL06, 6-cylinder diesel
-
Engine Power: 162 hp (121 kW) @ 2,100 rpm
-
Maximum Lift Height: 5.0 m
-
Travel Speed (Loaded / Unloaded): 29 / 33 km/h
-
Lift Speed (Loaded / Unloaded): 0.41 / 0.45 m/s
-
Gradeability (Loaded): 28 %
-
Turning Radius: 4.4 m
-
Operating Weight: 18,900 kg
-
Overall Width: 2,490 mm
-
Transmission: Full automatic powershift, 3 forward / 3 reverse
-
Brake System: Oil-cooled disc brakes
-
Mast Type: Triplex mast, with optional free lift
-
Tires: Pneumatic, heavy-duty construction grade
-
Cab Features:
• Ergonomic operator seat with suspension
• High-visibility overhead guard
• Low-noise, low-vibration cabin
• Clear dashboard with diagnostic indicators
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified prior to dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Available for short-term, long-term, or project-based rental contracts
Applications
-
Port and terminal heavy lifting operations
-
Steel manufacturing and fabrication sites
-
Large construction and infrastructure projects
-
Industrial logistics and warehouse yards
-
Container handling and cargo transport
Description
The Doosan D160S-5 is a high-capacity diesel forklift designed for heavy-duty industrial operations. Built for strength, safety, and operator comfort, it delivers reliable performance when handling large and bulky loads across ports, factories, and construction sites.
Key Specifications
-
Rated Capacity: 16,000 kg (≈ 35,000 lb)
-
Load Center: 600 mm
-
Engine Model: Doosan DL06, 6-cylinder diesel
-
Engine Power: 162 hp (121 kW) @ 2,100 rpm
-
Maximum Lift Height: 5.0 m
-
Travel Speed (Loaded / Unloaded): 29 / 33 km/h
-
Lift Speed (Loaded / Unloaded): 0.41 / 0.45 m/s
-
Gradeability (Loaded): 28 %
-
Turning Radius: 4.4 m
-
Operating Weight: 18,900 kg
-
Overall Width: 2,490 mm
-
Transmission: Full automatic powershift, 3 forward / 3 reverse
-
Brake System: Oil-cooled disc brakes
-
Mast Type: Triplex mast, with optional free lift
-
Tires: Pneumatic, heavy-duty construction grade
-
Cab Features:
• Ergonomic operator seat with suspension
• High-visibility overhead guard
• Low-noise, low-vibration cabin
• Clear dashboard with diagnostic indicators
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified prior to dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Available for short-term, long-term, or project-based rental contracts
Applications
-
Port and terminal heavy lifting operations
-
Steel manufacturing and fabrication sites
-
Large construction and infrastructure projects
-
Industrial logistics and warehouse yards
-
Container handling and cargo transport
Description
The Manitou ME 420 is a compact, electric counterbalance forklift ideal for warehouse, industrial, and logistics applications. With its silent electric drive, compact footprint, and robust build, it offers efficiency, reliability, and low operating costs—perfect for interior and exterior use where emissions or noise are concerns.
Key Specifications
-
Rated Capacity: 2,000 kg (≈ 4,409 lb)
-
Load Center: 500 mm
-
Service Weight: 4,000 kg
-
Wheelbase: 1,485 mm
-
Overall Width: 1,265 mm
-
Height to Overhead Guard: 2,155 mm
-
Length to Fork Face: 2,342 mm
-
Ground Clearance (Mast): 112 mm
-
Turning Radius (Outside): 2,090 mm
-
Travel Speed (Laden / Unladen): 14 / 14 km/h
-
Lifting Speed (Laden / Unladen): 0.28 / 0.40 m/s
-
Lowering Speed (Laden / Unladen): 0.42 / 0.29 m/s
-
Drive Motor Power (S2 60 min): 11 kW
-
Lift Motor Power (Duty Cycle): 8.6 kW
-
Battery: 48 V / 700 Ah
-
Hydraulic System Pressure: 175 bar
-
Hydraulic Flow for Attachments: 35 L/min
-
Sound Level at Operator Ear: < 71 dB(A)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained via Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported 24/7 by Dayim’s technical, service, and logistics teams
-
Offered for short-term, long-term, and project-based contracts
Applications
-
Indoor warehouse operations and rack handling
-
Loading/unloading goods in factories and distribution centers
-
Electric, low-noise operations in clean or semi-clean facilities
-
Logistics, shipping, and cross-dock yards
-
Container handling with compact forklift clearance
Description
The Manitou ME 420 is a compact, electric counterbalance forklift ideal for warehouse, industrial, and logistics applications. With its silent electric drive, compact footprint, and robust build, it offers efficiency, reliability, and low operating costs—perfect for interior and exterior use where emissions or noise are concerns.
Key Specifications
-
Rated Capacity: 2,000 kg (≈ 4,409 lb)
-
Load Center: 500 mm
-
Service Weight: 4,000 kg
-
Wheelbase: 1,485 mm
-
Overall Width: 1,265 mm
-
Height to Overhead Guard: 2,155 mm
-
Length to Fork Face: 2,342 mm
-
Ground Clearance (Mast): 112 mm
-
Turning Radius (Outside): 2,090 mm
-
Travel Speed (Laden / Unladen): 14 / 14 km/h
-
Lifting Speed (Laden / Unladen): 0.28 / 0.40 m/s
-
Lowering Speed (Laden / Unladen): 0.42 / 0.29 m/s
-
Drive Motor Power (S2 60 min): 11 kW
-
Lift Motor Power (Duty Cycle): 8.6 kW
-
Battery: 48 V / 700 Ah
-
Hydraulic System Pressure: 175 bar
-
Hydraulic Flow for Attachments: 35 L/min
-
Sound Level at Operator Ear: < 71 dB(A)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained via Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported 24/7 by Dayim’s technical, service, and logistics teams
-
Offered for short-term, long-term, and project-based contracts
Applications
-
Indoor warehouse operations and rack handling
-
Loading/unloading goods in factories and distribution centers
-
Electric, low-noise operations in clean or semi-clean facilities
-
Logistics, shipping, and cross-dock yards
-
Container handling with compact forklift clearance
Description
The Manitou MI-X 100 D is a heavy-duty diesel forklift designed for high-capacity material handling in demanding industrial, warehouse, and logistical settings. Engineered for strength and stability, it offers smooth performance, excellent ergonomics, and a durable construction that ensures long service life.
Key Specifications
-
Rated Capacity: 10,000 kg (≈ 22,000 lb)
-
Load Center: 600 mm
-
Engine: Cummins QSB4.5, 4-cylinder diesel
-
Engine Power: 82 kW (≈ 112 hp)
-
Travel Speed (Loaded / Unloaded): 26 / 31 km/h
-
Lifting Speed (Loaded / Unloaded): 0.32 / 0.35 m/s
-
Lowering Speed (Loaded / Unloaded): 0.45 / 0.36 m/s
-
Maximum Gradeability: 44 % (loaded)
-
Operating Weight (Unladen): 13,590 kg
-
Overall Width: 2,160 mm
-
Height of Overhead Guard: 2,580 mm
-
Turning Radius (Outside): 3,940 mm
-
Wheelbase: 2,800 mm
-
Mast Tilt (Forward / Backward): 6° / 12°
-
Ground Clearance Below Mast: 190 mm
-
Hydraulic System:
• Pressure: 195 bar
• Flow for attachments: 180 L/min
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regimen
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Heavy-duty warehouse and yard operations
-
Port and container terminal handling
-
Steel, timber, and structural material logistics
-
Infrastructure and industrial site operations
-
High-volume load stacking and transport
Description
The Manitou MI-X 100 D is a heavy-duty diesel forklift designed for high-capacity material handling in demanding industrial, warehouse, and logistical settings. Engineered for strength and stability, it offers smooth performance, excellent ergonomics, and a durable construction that ensures long service life.
Key Specifications
-
Rated Capacity: 10,000 kg (≈ 22,000 lb)
-
Load Center: 600 mm
-
Engine: Cummins QSB4.5, 4-cylinder diesel
-
Engine Power: 82 kW (≈ 112 hp)
-
Travel Speed (Loaded / Unloaded): 26 / 31 km/h
-
Lifting Speed (Loaded / Unloaded): 0.32 / 0.35 m/s
-
Lowering Speed (Loaded / Unloaded): 0.45 / 0.36 m/s
-
Maximum Gradeability: 44 % (loaded)
-
Operating Weight (Unladen): 13,590 kg
-
Overall Width: 2,160 mm
-
Height of Overhead Guard: 2,580 mm
-
Turning Radius (Outside): 3,940 mm
-
Wheelbase: 2,800 mm
-
Mast Tilt (Forward / Backward): 6° / 12°
-
Ground Clearance Below Mast: 190 mm
-
Hydraulic System:
• Pressure: 195 bar
• Flow for attachments: 180 L/min
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regimen
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Heavy-duty warehouse and yard operations
-
Port and container terminal handling
-
Steel, timber, and structural material logistics
-
Infrastructure and industrial site operations
-
High-volume load stacking and transport
Description
The JCB 540-170 is a heavy-duty telescopic handler (Loadall) engineered for demanding lift and reach operations. With its 4-stage boom, 4WD drive, and robust load management systems, it delivers exceptional versatility, stability, and performance for construction, infrastructure, and industrial sites.
Key Specifications
-
Maximum Lift Capacity: 4,000 kg (≈ 8,820 lb)
-
Rated Load Center: 500 mm
-
Maximum Lift Height: 16.7 m (≈ 54 ft 9 in)
-
Maximum Forward Reach: 12.5 m (≈ 41 ft 0 in)
-
Capacity at Full Reach: 600 kg (≈ 1,320 lb)
-
Stabilised Lift Capacity: 2,500 kg at full lift height without forward outreach reduction
-
Engine Power: 81 kW
-
Operating Weight: ~ 12,060 kg
-
Stowed Dimensions:
• Length (to carriage): 6.36 m
• Width (over tyres): 2.44 m
• Height: 2.69 m -
Wheelbase: 2.75 m
-
Ground Clearance: 0.40 m
-
Tyres: 15.5 / 80-24
-
Transmission / Drive: 4WD with selectable steering modes
-
Maximum Travel Speed: ~ 40 km/h
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before dispatch
-
Backed by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Construction and infrastructure lift work
-
Material placement at height or distance
-
Warehouse and site load handling
-
Heavy equipment positioning
-
Industrial and plant maintenance
Description
The JCB 540-170 is a heavy-duty telescopic handler (Loadall) engineered for demanding lift and reach operations. With its 4-stage boom, 4WD drive, and robust load management systems, it delivers exceptional versatility, stability, and performance for construction, infrastructure, and industrial sites.
Key Specifications
-
Maximum Lift Capacity: 4,000 kg (≈ 8,820 lb)
-
Rated Load Center: 500 mm
-
Maximum Lift Height: 16.7 m (≈ 54 ft 9 in)
-
Maximum Forward Reach: 12.5 m (≈ 41 ft 0 in)
-
Capacity at Full Reach: 600 kg (≈ 1,320 lb)
-
Stabilised Lift Capacity: 2,500 kg at full lift height without forward outreach reduction
-
Engine Power: 81 kW
-
Operating Weight: ~ 12,060 kg
-
Stowed Dimensions:
• Length (to carriage): 6.36 m
• Width (over tyres): 2.44 m
• Height: 2.69 m -
Wheelbase: 2.75 m
-
Ground Clearance: 0.40 m
-
Tyres: 15.5 / 80-24
-
Transmission / Drive: 4WD with selectable steering modes
-
Maximum Travel Speed: ~ 40 km/h
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before dispatch
-
Backed by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Construction and infrastructure lift work
-
Material placement at height or distance
-
Warehouse and site load handling
-
Heavy equipment positioning
-
Industrial and plant maintenance
