Product Details
Description

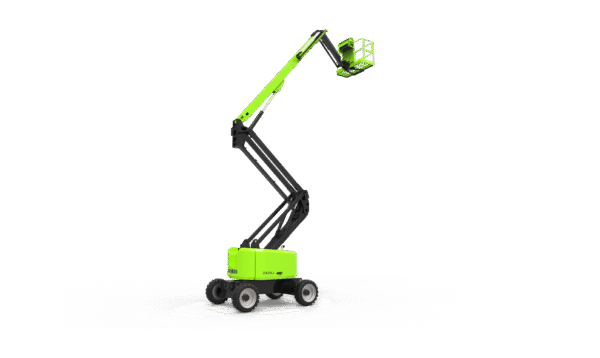

The Zoomlion ZA20J is a diesel-powered articulating boom lift designed to deliver dependable performance and reach for a variety of outdoor and industrial tasks. With excellent outreach and a robust platform capacity, it is well suited for construction, facility maintenance, telecom, and infrastructure worksites.
Key Specifications
-
Working Height: 21.38 m (70 ft 2 in)
-
Platform Height: 19.38 m (63 ft 7 in)
-
Horizontal Reach: 12.30 m (40 ft 4 in)
-
Up-and-Over Clearance: 8.25 m (27 ft 1 in)
-
Platform Capacity: 250 kg / 360 kg (550 lbs / 793 lbs)
-
Platform Size: 2.44 m × 0.91 m (8 ft × 3 ft)
-
Jib Length / Articulation: 1.53 m (5 ft), articulation range not typically disclosed
-
Turntable Rotation: 360° continuous
-
Platform Rotation: ± 90°
-
Drive Speed: 6.1 km/h (3.79 mph)
-
Gradeability: 45 % (24°)
-
Axles Oscillation: 0.20 m (8 in)
-
Tail Swing (H-tail): 0.4 m (1 ft 4 in)
-
Machine Weight (Gross): 10,000 kg (22,046 lbs)
-
Fuel Tank Capacity: 150 L (39.6 gal)
-
Hydraulic System Capacity: 160 L (42.3 gal)
-
Hydraulic Tank Capacity: 75 L (19.8 gal)
-
Stowed Dimensions:
• Length: 8.82 m (28 ft 11 in)
• Width: 2.46 m (8 ft 1 in)
• Height: 2.52 m (8 ft 4 in) -
Turning Radii:
• Inside: 2.51 m (8 ft 3 in)
• Outside: 5.47 m (17 ft 11 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes comprehensive functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial plant, facility, and mechanical maintenance
-
Telecom, utilities, and tower servicing
-
Elevated structure and overhang access
-
Event staging, façade work, signage installation
-
General site maintenance at medium elevation
Description
The Genie ZX-135/70 is a powerful articulating boom lift built to tackle the toughest outdoor applications. With its impressive height, long horizontal outreach, and exceptional terrain capability, it offers safe and efficient access to even the most challenging work areas. Ideal for large-scale construction, industrial maintenance, and infrastructure projects, this model delivers reliability, precision, and performance in every lift.
Key Specifications
-
Working Height: Approximately 43.15 m (141 ft)
-
Horizontal Reach: Approximately 21.26 m (69 ft 9 in)
-
Up-and-Over Clearance: 23.01 m (75 ft 6 in)
-
Below-Ground Reach: 5.87 m (19 ft 3 in)
-
Platform Capacity: 272 kg (600 lbs)
-
Jib: Telescoping Jib-Extend® (3.66 – 6.10 m / 12 – 20 ft) with 110° vertical motion
-
Drive: 4WD with full-time positive traction for rough terrain performance
-
Steering Modes: Four-wheel steer (front, rear, crab, and coordinated)
-
Turntable Rotation: Continuous 360°
-
Platform Rotation: 160°
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Large construction and infrastructure projects
-
Industrial and refinery maintenance
-
Power generation and telecommunications worksites
-
Oil & Gas and Aviation facilities
-
Bridge, overpass, and utility maintenance operations
Description
The Genie ZX-135/70 is a powerful articulating boom lift built to tackle the toughest outdoor applications. With its impressive height, long horizontal outreach, and exceptional terrain capability, it offers safe and efficient access to even the most challenging work areas. Ideal for large-scale construction, industrial maintenance, and infrastructure projects, this model delivers reliability, precision, and performance in every lift.
Key Specifications
-
Working Height: Approximately 43.15 m (141 ft)
-
Horizontal Reach: Approximately 21.26 m (69 ft 9 in)
-
Up-and-Over Clearance: 23.01 m (75 ft 6 in)
-
Below-Ground Reach: 5.87 m (19 ft 3 in)
-
Platform Capacity: 272 kg (600 lbs)
-
Jib: Telescoping Jib-Extend® (3.66 – 6.10 m / 12 – 20 ft) with 110° vertical motion
-
Drive: 4WD with full-time positive traction for rough terrain performance
-
Steering Modes: Four-wheel steer (front, rear, crab, and coordinated)
-
Turntable Rotation: Continuous 360°
-
Platform Rotation: 160°
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Large construction and infrastructure projects
-
Industrial and refinery maintenance
-
Power generation and telecommunications worksites
-
Oil & Gas and Aviation facilities
-
Bridge, overpass, and utility maintenance operations
Description
The JLG 450AJ is a diesel-powered articulating boom lift designed for medium-height applications that demand reach, precision, and maneuverability. Combining compact size, smooth control, and exceptional terrain capability, it provides safe and reliable access for construction, maintenance, and industrial projects where space and performance both matter.
Key Specifications
-
Working Height: 13.72 m (45 ft)
-
Horizontal Reach: 7.62 m (25 ft)
-
Up-and-Over Clearance: 7.57 m (24 ft 10 in)
-
Platform Capacity: 249 kg (550 lbs)
-
Platform Size: 0.76 m × 1.83 m (2 ft 6 in × 6 ft)
-
Jib Length / Articulation: 1.24 m (4 ft 1 in), +74° / –70° range
-
Turntable Rotation: 360° non-continuous
-
Platform Rotation: 180° hydraulic
-
Drive Speed: 7.2 km/h (4.5 mph)
-
Gradeability: 45 % (4WD)
-
Power Source: Diesel engine – Deutz D2.9 L Tier 4 Final (36 kW / 48 hp)
-
Fuel Tank Capacity: 64 L (17 gal)
-
Hydraulic System Capacity: 136 L (36 gal)
-
Machine Weight: 6,010 kg (13,250 lbs)
-
Stowed Dimensions:
• Length: 6.58 m (21 ft 7 in)
• Width: 2.35 m (7 ft 9 in)
• Height: 2.27 m (7 ft 5 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Building construction and maintenance
-
Industrial plant and facility operations
-
Oil & Gas and refinery projects
-
Telecommunications and utility access work
-
Bridge, overpass, and infrastructure maintenance
-
Event staging, rigging, and elevated installations
Description
The JLG 450AJ is a diesel-powered articulating boom lift designed for medium-height applications that demand reach, precision, and maneuverability. Combining compact size, smooth control, and exceptional terrain capability, it provides safe and reliable access for construction, maintenance, and industrial projects where space and performance both matter.
Key Specifications
-
Working Height: 13.72 m (45 ft)
-
Horizontal Reach: 7.62 m (25 ft)
-
Up-and-Over Clearance: 7.57 m (24 ft 10 in)
-
Platform Capacity: 249 kg (550 lbs)
-
Platform Size: 0.76 m × 1.83 m (2 ft 6 in × 6 ft)
-
Jib Length / Articulation: 1.24 m (4 ft 1 in), +74° / –70° range
-
Turntable Rotation: 360° non-continuous
-
Platform Rotation: 180° hydraulic
-
Drive Speed: 7.2 km/h (4.5 mph)
-
Gradeability: 45 % (4WD)
-
Power Source: Diesel engine – Deutz D2.9 L Tier 4 Final (36 kW / 48 hp)
-
Fuel Tank Capacity: 64 L (17 gal)
-
Hydraulic System Capacity: 136 L (36 gal)
-
Machine Weight: 6,010 kg (13,250 lbs)
-
Stowed Dimensions:
• Length: 6.58 m (21 ft 7 in)
• Width: 2.35 m (7 ft 9 in)
• Height: 2.27 m (7 ft 5 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Building construction and maintenance
-
Industrial plant and facility operations
-
Oil & Gas and refinery projects
-
Telecommunications and utility access work
-
Bridge, overpass, and infrastructure maintenance
-
Event staging, rigging, and elevated installations
Description
The Genie Z-80/60 is a rugged, diesel-powered articulating boom lift built for challenging job sites. It offers outstanding reach, up-and-over capability, and work envelope flexibility for construction, maintenance, and industrial access tasks. With 4WD, reverse articulation, and premium hydraulics, it delivers dependable performance in demanding environments.
Key Specifications
-
Working Height: 25.77 m (84 ft)
-
Platform Height: 23.77 m (78 ft)
-
Horizontal Reach: 18.29 m (60 ft)
-
Up-and-Over Clearance: 8.83 m (29 ft)
-
Below-Ground Reach: 4.83 m (15 ft 10 in)
-
Platform Capacity: 227 kg (500 lbs)
-
Platform Rotation: 160° hydraulic
-
Vertical Jib Articulation: 135°
-
Turntable Rotation: 360° continuous
-
Drive Speed (stowed): 4.83 km/h (3.0 mph)
-
Drive Speed (raised): 1.10 km/h (0.68 mph)
-
Gradeability (4WD stowed): 45 %
-
Tailswing — Riser Up: 1.17 m (3 ft 10 in)
-
Tailswing — Riser Down: 2.24 m (7 ft 4 in)
-
Machine Weight (operating): ~ 17,010 kg (37,500 lbs)
-
Power Source: Diesel (Deutz TD 2011 L04i, ~ 58 kW / 78 hp)
-
Fuel Tank Capacity: 132 L (35 gal)
-
Hydraulic Tank Capacity: 170 L (45 gal)
-
Stowed Dimensions:
• Length: 11.27 m (37 ft)
• Width: 2.49 m (8 ft 2 in)
• Height: 3.00 m (9 ft 10 in) -
Wheelbase: 2.85 m (9 ft 4 in)
-
Ground Clearance (center): 0.30 m (12 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
High-access construction and infrastructure projects
-
Industrial and plant maintenance operations
-
Oil & Gas, refinery, and process facility work
-
Telecommunications and utility line access
-
Bridge, overpass, and elevated structure servicing
-
Event staging, façade work, signage, and exterior installations
Description
The Genie Z-80/60 is a rugged, diesel-powered articulating boom lift built for challenging job sites. It offers outstanding reach, up-and-over capability, and work envelope flexibility for construction, maintenance, and industrial access tasks. With 4WD, reverse articulation, and premium hydraulics, it delivers dependable performance in demanding environments.
Key Specifications
-
Working Height: 25.77 m (84 ft)
-
Platform Height: 23.77 m (78 ft)
-
Horizontal Reach: 18.29 m (60 ft)
-
Up-and-Over Clearance: 8.83 m (29 ft)
-
Below-Ground Reach: 4.83 m (15 ft 10 in)
-
Platform Capacity: 227 kg (500 lbs)
-
Platform Rotation: 160° hydraulic
-
Vertical Jib Articulation: 135°
-
Turntable Rotation: 360° continuous
-
Drive Speed (stowed): 4.83 km/h (3.0 mph)
-
Drive Speed (raised): 1.10 km/h (0.68 mph)
-
Gradeability (4WD stowed): 45 %
-
Tailswing — Riser Up: 1.17 m (3 ft 10 in)
-
Tailswing — Riser Down: 2.24 m (7 ft 4 in)
-
Machine Weight (operating): ~ 17,010 kg (37,500 lbs)
-
Power Source: Diesel (Deutz TD 2011 L04i, ~ 58 kW / 78 hp)
-
Fuel Tank Capacity: 132 L (35 gal)
-
Hydraulic Tank Capacity: 170 L (45 gal)
-
Stowed Dimensions:
• Length: 11.27 m (37 ft)
• Width: 2.49 m (8 ft 2 in)
• Height: 3.00 m (9 ft 10 in) -
Wheelbase: 2.85 m (9 ft 4 in)
-
Ground Clearance (center): 0.30 m (12 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
High-access construction and infrastructure projects
-
Industrial and plant maintenance operations
-
Oil & Gas, refinery, and process facility work
-
Telecommunications and utility line access
-
Bridge, overpass, and elevated structure servicing
-
Event staging, façade work, signage, and exterior installations
Description
The Zoomlion ZA18J is a diesel-powered articulating boom lift engineered for robust performance and dependable access across challenging worksites. With its balanced reach, load capacity, and control precision, it is ideal for construction, industrial maintenance, and infrastructure projects.
Key Specifications
-
Working Height: 20.93 m (68 ft 8 in)
-
Platform Height: 18.93 m (62 ft 1 in)
-
Horizontal Reach: 12.35 m (40 ft 6 in)
-
Up-and-Over Clearance: 8.30 m (27 ft 3 in)
-
Platform Capacity: 250 kg (550 lbs)
-
Platform Size: 2.44 m × 0.91 m (8 ft × 3 ft) (alternative: 1.83 m × 0.76 m)
-
Jib / Articulation: Vertical articulation of ~ 90°
-
Turntable Rotation: 360° continuous
-
Platform Rotation: ± 90°
-
Drive Speed: 6.1 km/h (3.79 mph)
-
Gradeability: 45 %
-
Axle Oscillation: 0.2 m (8 in)
-
Turning Radii:
• Inside: 2.51 m (8 ft 3 in)
• Outside: 5.47 m (17 ft 11 in) -
Tail Swing: Zero (no tail swing)
-
Machine Weight: 11,000 kg (24,251 lbs)
-
Power Source: Diesel engine – Kubota V2403, 36 kW @ 2,600 rpm
-
Fuel Tank Capacity: 150 L (39.6 gal)
-
Hydraulic System Capacity: 160 L (42.3 gal)
-
Hydraulic Tank Capacity: 75 L (19.8 gal)
-
Stowed Dimensions:
• Length: 9.12 m (29 ft 11 in)
• Width: 2.49 m (8 ft 2 in)
• Height: 2.58 m (8 ft 6 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes full functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial plant and facility maintenance
-
Telecommunications, utilities, and tower servicing
-
Elevated structure access, overhangs, façade works
-
Event staging, signage, and facade installations
-
General maintenance and site servicing
Description
The Zoomlion ZA18J is a diesel-powered articulating boom lift engineered for robust performance and dependable access across challenging worksites. With its balanced reach, load capacity, and control precision, it is ideal for construction, industrial maintenance, and infrastructure projects.
Key Specifications
-
Working Height: 20.93 m (68 ft 8 in)
-
Platform Height: 18.93 m (62 ft 1 in)
-
Horizontal Reach: 12.35 m (40 ft 6 in)
-
Up-and-Over Clearance: 8.30 m (27 ft 3 in)
-
Platform Capacity: 250 kg (550 lbs)
-
Platform Size: 2.44 m × 0.91 m (8 ft × 3 ft) (alternative: 1.83 m × 0.76 m)
-
Jib / Articulation: Vertical articulation of ~ 90°
-
Turntable Rotation: 360° continuous
-
Platform Rotation: ± 90°
-
Drive Speed: 6.1 km/h (3.79 mph)
-
Gradeability: 45 %
-
Axle Oscillation: 0.2 m (8 in)
-
Turning Radii:
• Inside: 2.51 m (8 ft 3 in)
• Outside: 5.47 m (17 ft 11 in) -
Tail Swing: Zero (no tail swing)
-
Machine Weight: 11,000 kg (24,251 lbs)
-
Power Source: Diesel engine – Kubota V2403, 36 kW @ 2,600 rpm
-
Fuel Tank Capacity: 150 L (39.6 gal)
-
Hydraulic System Capacity: 160 L (42.3 gal)
-
Hydraulic Tank Capacity: 75 L (19.8 gal)
-
Stowed Dimensions:
• Length: 9.12 m (29 ft 11 in)
• Width: 2.49 m (8 ft 2 in)
• Height: 2.58 m (8 ft 6 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes full functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial plant and facility maintenance
-
Telecommunications, utilities, and tower servicing
-
Elevated structure access, overhangs, façade works
-
Event staging, signage, and facade installations
-
General maintenance and site servicing
Description
The Manitou 200ATJ is a diesel-powered articulating boom lift designed for high-reach outdoor applications. Known for its versatility and robustness, it offers excellent outreach and safe positioning over obstacles, making it ideal for construction, maintenance, and industrial access tasks with tight or obstructed site layouts.
Key Specifications
-
Working Height: 20.37 m (66 ft 10 in)
-
Platform Height: 18.37 m (60 ft 3 in)
-
Horizontal Reach: 11.99 m (39 ft 4 in)
-
Overhang / Boom Overhang Reach: 7.97 m (26 ft 2 in)
-
Platform Capacity: 230 kg (507 lbs)
-
Pendular Arm Rotation (Top / Bottom): +69° / –66°
-
Turret / Turntable Rotation: 355°
-
Platform Rotation: ± 90°
-
Drive Speed (Stowed): 4.70 km/h (2.92 mph)
-
Drive Speed (Raised): 0.80 km/h (0.50 mph)
-
Gradeability: 40 %
-
Machine Weight (Operating): 10,050 kg (22,160 lbs)
-
Platform Dimensions: 2.10 m × 0.76 m (6 ft 11 in × 2 ft 6 in)
-
Overall Dimensions (Stowed):
• Length: 8.42 m (27 ft 7 in)
• Width: 2.40 m (7 ft 10 in)
• Height (stowed): 2.71 m (8 ft 11 in) -
Stowed Length (Boom Folded): 6.08 m (19 ft 11 in)
-
Stowed Height with Boom Folded: 3.12 m (10 ft 3 in)
-
External Turning Radius: 3.90 m (12 ft 10 in)
-
Ground Clearance (Center): 0.44 m (1 ft 5 in)
-
Wheelbase: 2.40 m (7 ft 10 in)
-
Fuel Tank Capacity: 78 L (20.6 gal)
-
Hydraulic Tank Capacity: 80 L (21.1 gal)
-
Tire Type: Cured-on solid / foam-filled
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes comprehensive functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial facility and plant maintenance
-
Oil & Gas and refinery operations
-
Telecommunications and utility work
-
Overpasses, bridge, and elevated structure access
-
Event staging, rigging, and façade installation tasks
Description
The Manitou 200ATJ is a diesel-powered articulating boom lift designed for high-reach outdoor applications. Known for its versatility and robustness, it offers excellent outreach and safe positioning over obstacles, making it ideal for construction, maintenance, and industrial access tasks with tight or obstructed site layouts.
Key Specifications
-
Working Height: 20.37 m (66 ft 10 in)
-
Platform Height: 18.37 m (60 ft 3 in)
-
Horizontal Reach: 11.99 m (39 ft 4 in)
-
Overhang / Boom Overhang Reach: 7.97 m (26 ft 2 in)
-
Platform Capacity: 230 kg (507 lbs)
-
Pendular Arm Rotation (Top / Bottom): +69° / –66°
-
Turret / Turntable Rotation: 355°
-
Platform Rotation: ± 90°
-
Drive Speed (Stowed): 4.70 km/h (2.92 mph)
-
Drive Speed (Raised): 0.80 km/h (0.50 mph)
-
Gradeability: 40 %
-
Machine Weight (Operating): 10,050 kg (22,160 lbs)
-
Platform Dimensions: 2.10 m × 0.76 m (6 ft 11 in × 2 ft 6 in)
-
Overall Dimensions (Stowed):
• Length: 8.42 m (27 ft 7 in)
• Width: 2.40 m (7 ft 10 in)
• Height (stowed): 2.71 m (8 ft 11 in) -
Stowed Length (Boom Folded): 6.08 m (19 ft 11 in)
-
Stowed Height with Boom Folded: 3.12 m (10 ft 3 in)
-
External Turning Radius: 3.90 m (12 ft 10 in)
-
Ground Clearance (Center): 0.44 m (1 ft 5 in)
-
Wheelbase: 2.40 m (7 ft 10 in)
-
Fuel Tank Capacity: 78 L (20.6 gal)
-
Hydraulic Tank Capacity: 80 L (21.1 gal)
-
Tire Type: Cured-on solid / foam-filled
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes comprehensive functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial facility and plant maintenance
-
Oil & Gas and refinery operations
-
Telecommunications and utility work
-
Overpasses, bridge, and elevated structure access
-
Event staging, rigging, and façade installation tasks
Description
The Genie Z-45/25J RT is a diesel-powered rough-terrain articulating boom lift designed for reliable performance on demanding outdoor job sites. It offers impressive up-and-over reach, exceptional maneuverability, and precise positioning, making it ideal for construction, maintenance, and industrial applications requiring stability and control on uneven terrain.
Key Specifications
-
Working Height: 16.05 m (52 ft 1 in)
-
Horizontal Reach: 7.49 m (24 ft 7 in)
-
Up-and-Over Clearance: 7.14 m (23 ft 5 in)
-
Platform Capacity: 227 kg (500 lbs)
-
Platform Size: 0.76 m × 1.83 m (2 ft 6 in × 6 ft)
-
Jib Length / Articulation: 1.52 m (5 ft), 135° vertical articulation
-
Turntable Rotation: 355° non-continuous
-
Platform Rotation: 160° hydraulic
-
Drive Speed (stowed): 5.0 km/h (3.1 mph)
-
Drive Speed (raised): 1.1 km/h (0.68 mph)
-
Gradeability: 45 %
-
Power Source: Diesel engine – Deutz D2011 L03i (34 kW / 45 hp)
-
Fuel Tank Capacity: 64 L (17 gal)
-
Hydraulic Tank Capacity: 83 L (22 gal)
-
Machine Weight: 6,515 kg (14,363 lbs)
-
Stowed Dimensions:
• Length: 6.65 m (21 ft 10 in)
• Width: 2.29 m (7 ft 6 in)
• Height: 2.13 m (7 ft)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes comprehensive functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial and plant maintenance
-
Telecommunications, power line, and utility worksites
-
Bridge, overpass, and elevated structure access
-
Event staging, façade, and signage installations
-
Rough-terrain projects requiring articulated reach
Description
The Genie Z-45/25J RT is a diesel-powered rough-terrain articulating boom lift designed for reliable performance on demanding outdoor job sites. It offers impressive up-and-over reach, exceptional maneuverability, and precise positioning, making it ideal for construction, maintenance, and industrial applications requiring stability and control on uneven terrain.
Key Specifications
-
Working Height: 16.05 m (52 ft 1 in)
-
Horizontal Reach: 7.49 m (24 ft 7 in)
-
Up-and-Over Clearance: 7.14 m (23 ft 5 in)
-
Platform Capacity: 227 kg (500 lbs)
-
Platform Size: 0.76 m × 1.83 m (2 ft 6 in × 6 ft)
-
Jib Length / Articulation: 1.52 m (5 ft), 135° vertical articulation
-
Turntable Rotation: 355° non-continuous
-
Platform Rotation: 160° hydraulic
-
Drive Speed (stowed): 5.0 km/h (3.1 mph)
-
Drive Speed (raised): 1.1 km/h (0.68 mph)
-
Gradeability: 45 %
-
Power Source: Diesel engine – Deutz D2011 L03i (34 kW / 45 hp)
-
Fuel Tank Capacity: 64 L (17 gal)
-
Hydraulic Tank Capacity: 83 L (22 gal)
-
Machine Weight: 6,515 kg (14,363 lbs)
-
Stowed Dimensions:
• Length: 6.65 m (21 ft 10 in)
• Width: 2.29 m (7 ft 6 in)
• Height: 2.13 m (7 ft)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes comprehensive functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial and plant maintenance
-
Telecommunications, power line, and utility worksites
-
Bridge, overpass, and elevated structure access
-
Event staging, façade, and signage installations
-
Rough-terrain projects requiring articulated reach
