Product Details
Description

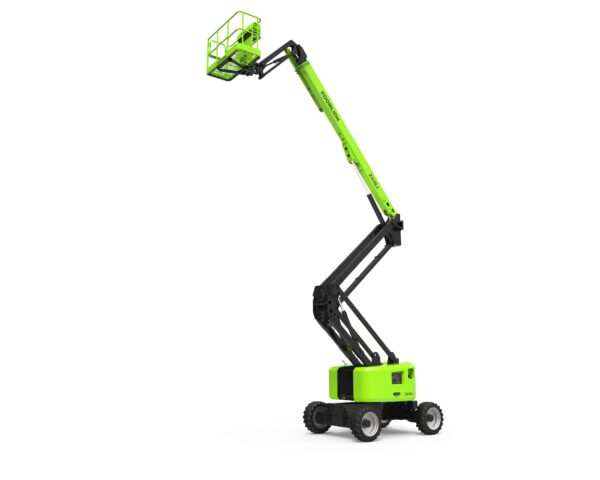

The Zoomlion ZA18J is a diesel-powered articulating boom lift engineered for robust performance and dependable access across challenging worksites. With its balanced reach, load capacity, and control precision, it is ideal for construction, industrial maintenance, and infrastructure projects.
Key Specifications
-
Working Height: 20.93 m (68 ft 8 in)
-
Platform Height: 18.93 m (62 ft 1 in)
-
Horizontal Reach: 12.35 m (40 ft 6 in)
-
Up-and-Over Clearance: 8.30 m (27 ft 3 in)
-
Platform Capacity: 250 kg (550 lbs)
-
Platform Size: 2.44 m × 0.91 m (8 ft × 3 ft) (alternative: 1.83 m × 0.76 m)
-
Jib / Articulation: Vertical articulation of ~ 90°
-
Turntable Rotation: 360° continuous
-
Platform Rotation: ± 90°
-
Drive Speed: 6.1 km/h (3.79 mph)
-
Gradeability: 45 %
-
Axle Oscillation: 0.2 m (8 in)
-
Turning Radii:
• Inside: 2.51 m (8 ft 3 in)
• Outside: 5.47 m (17 ft 11 in) -
Tail Swing: Zero (no tail swing)
-
Machine Weight: 11,000 kg (24,251 lbs)
-
Power Source: Diesel engine – Kubota V2403, 36 kW @ 2,600 rpm
-
Fuel Tank Capacity: 150 L (39.6 gal)
-
Hydraulic System Capacity: 160 L (42.3 gal)
-
Hydraulic Tank Capacity: 75 L (19.8 gal)
-
Stowed Dimensions:
• Length: 9.12 m (29 ft 11 in)
• Width: 2.49 m (8 ft 2 in)
• Height: 2.58 m (8 ft 6 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes full functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial plant and facility maintenance
-
Telecommunications, utilities, and tower servicing
-
Elevated structure access, overhangs, façade works
-
Event staging, signage, and facade installations
-
General maintenance and site servicing
Description
The JLG 1250AJP is a high-reach articulating boom lift built for the toughest and most demanding job sites. Offering outstanding height, outreach, and versatility, it allows operators to reach over, under, and around obstacles with ease. Designed for reliability and heavy-duty performance, this model is ideal for large-scale construction, industrial maintenance, and infrastructure applications.
Key Specifications
-
Working Height: 38.1 m (125 ft)
-
Horizontal Reach: 19.25 m (63 ft 2 in)
-
Up-and-Over Clearance: 18.44 m (60 ft 6 in)
-
Platform Capacity (Unrestricted): 227 kg (500 lbs)
-
Platform Capacity (Restricted): 454 kg (1,000 lbs)
-
Platform Size: 0.91 m × 2.44 m (36 in × 96 in)
-
JibPLUS®: 2.44 m (8 ft) jib with 125° horizontal and 130° vertical articulation
-
Turntable Rotation: Continuous 360°
-
Platform Rotation: 180° hydraulic
-
Power: Deutz TCD 2.9 L Diesel Engine – Tier 4 Final (74.2 hp / 55.4 kW)
-
Fuel Tank Capacity: 117 L (31 gal)
-
Hydraulic Reservoir: 200 L (53 gal)
-
Drive: Full-time 4WD with oscillating axle and extendable axles for rough terrain use
-
Gradeability: 45 %
-
Machine Length (Stowed): 11.45 m (37 ft 7 in)
-
Machine Width: 2.49 m (8 ft 2 in) retracted / 3.81 m (12 ft 6 in) extended
-
Stowed Height: 3.05 m (10 ft)
-
Machine Weight: 19,958 kg (44,000 lbs)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
High-rise and industrial construction projects
-
Oil & Gas, power generation, and refinery maintenance
-
Bridge, overpass, and infrastructure works
-
Airports, stadiums, and large public facilities
-
Telecommunications, utilities, and tower installations
-
Event staging, rigging, and high-elevation access operations
Description
The JLG 1250AJP is a high-reach articulating boom lift built for the toughest and most demanding job sites. Offering outstanding height, outreach, and versatility, it allows operators to reach over, under, and around obstacles with ease. Designed for reliability and heavy-duty performance, this model is ideal for large-scale construction, industrial maintenance, and infrastructure applications.
Key Specifications
-
Working Height: 38.1 m (125 ft)
-
Horizontal Reach: 19.25 m (63 ft 2 in)
-
Up-and-Over Clearance: 18.44 m (60 ft 6 in)
-
Platform Capacity (Unrestricted): 227 kg (500 lbs)
-
Platform Capacity (Restricted): 454 kg (1,000 lbs)
-
Platform Size: 0.91 m × 2.44 m (36 in × 96 in)
-
JibPLUS®: 2.44 m (8 ft) jib with 125° horizontal and 130° vertical articulation
-
Turntable Rotation: Continuous 360°
-
Platform Rotation: 180° hydraulic
-
Power: Deutz TCD 2.9 L Diesel Engine – Tier 4 Final (74.2 hp / 55.4 kW)
-
Fuel Tank Capacity: 117 L (31 gal)
-
Hydraulic Reservoir: 200 L (53 gal)
-
Drive: Full-time 4WD with oscillating axle and extendable axles for rough terrain use
-
Gradeability: 45 %
-
Machine Length (Stowed): 11.45 m (37 ft 7 in)
-
Machine Width: 2.49 m (8 ft 2 in) retracted / 3.81 m (12 ft 6 in) extended
-
Stowed Height: 3.05 m (10 ft)
-
Machine Weight: 19,958 kg (44,000 lbs)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
High-rise and industrial construction projects
-
Oil & Gas, power generation, and refinery maintenance
-
Bridge, overpass, and infrastructure works
-
Airports, stadiums, and large public facilities
-
Telecommunications, utilities, and tower installations
-
Event staging, rigging, and high-elevation access operations
Description
The Zoomlion ZA24J is a diesel articulating boom lift designed for demanding outdoor access work. It offers strong reach, load capacity, and reliable performance across construction, maintenance, and industrial sites.
Key Specifications
-
Working Height: 26.5 m (86 ft 11 in)
-
Platform Height: 24.5 m (80 ft 5 in)
-
Horizontal Reach: 18.9 m (62 ft)
-
Up-and-Over Clearance: 9.42 m (30 ft 11 in)
-
Below-Ground Reach: 5.1 m (16 ft 9 in)
-
Platform Capacity: 250 kg (550 lbs)
-
Drive Speed: 5.0 km/h (3.11 mph)
-
Gradeability: 45 % (24°)
-
Turntable Rotation: 360° continuous
-
Platform Rotation: ± 90°
-
Engine / Power: Cummins QSF2.8, 54 kW / 2400 rpm
-
Fuel Tank Capacity: 150 L (39.6 gal)
-
Hydraulic System Capacity: 240 L (63.4 gal)
-
Hydraulic Tank Capacity: 180 L (47.6 gal)
-
Machine Weight (Gross): 18,300 kg (40,344 lbs)
-
Dimensions, Stowed:
• Length: 11.25 m (36 ft 11 in)
• Width: 2.49 m (8 ft 2 in)
• Height: 3.0 m (9 ft 10 in) -
Platform Size: 2.44 m × 0.91 m (8 ft × 2 ft 12 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial plant and facility maintenance
-
Telecommunications, utilities, and tower work
-
Overpass, bridge, and elevated structure access
-
Oil & gas, petrochemical, and refinery sites
-
Event staging, rigging, and aerial installation tasks
Description
The Zoomlion ZA24J is a diesel articulating boom lift designed for demanding outdoor access work. It offers strong reach, load capacity, and reliable performance across construction, maintenance, and industrial sites.
Key Specifications
-
Working Height: 26.5 m (86 ft 11 in)
-
Platform Height: 24.5 m (80 ft 5 in)
-
Horizontal Reach: 18.9 m (62 ft)
-
Up-and-Over Clearance: 9.42 m (30 ft 11 in)
-
Below-Ground Reach: 5.1 m (16 ft 9 in)
-
Platform Capacity: 250 kg (550 lbs)
-
Drive Speed: 5.0 km/h (3.11 mph)
-
Gradeability: 45 % (24°)
-
Turntable Rotation: 360° continuous
-
Platform Rotation: ± 90°
-
Engine / Power: Cummins QSF2.8, 54 kW / 2400 rpm
-
Fuel Tank Capacity: 150 L (39.6 gal)
-
Hydraulic System Capacity: 240 L (63.4 gal)
-
Hydraulic Tank Capacity: 180 L (47.6 gal)
-
Machine Weight (Gross): 18,300 kg (40,344 lbs)
-
Dimensions, Stowed:
• Length: 11.25 m (36 ft 11 in)
• Width: 2.49 m (8 ft 2 in)
• Height: 3.0 m (9 ft 10 in) -
Platform Size: 2.44 m × 0.91 m (8 ft × 2 ft 12 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial plant and facility maintenance
-
Telecommunications, utilities, and tower work
-
Overpass, bridge, and elevated structure access
-
Oil & gas, petrochemical, and refinery sites
-
Event staging, rigging, and aerial installation tasks
Description
The JLG 800AJ is a rugged, diesel-powered articulating boom lift built for demanding outdoor and industrial environments. Thanks to its combination of height, reach, and articulating jib, it provides flexible access around obstacles and over obstructions. It’s well suited for contractors, facility operators, and rental fleets needing reliable performance in tough conditions.
Key Specifications
-
Working / Platform Height: 24.38 m (80 ft)
-
Horizontal Reach: 15.80 m (51 ft 10 in)
-
Up-and-Over Clearance: 9.78 m (32 ft 1 in)
-
Platform Capacity (Unrestricted): 227 kg (500 lbs)
-
Platform Rotator: 180° hydraulic
-
Jib Length: 1.83 m (6 ft)
-
Jib Articulation Range: +70° / –60° (total approx. 130°)
-
Swing / Turntable: 360° continuous
-
Drive Speed: 4.8 km/h (3.0 mph)
-
Gradeability: 45 % in 4WD mode
-
Machine Weight (Operating): ~15,558 kg (34,300 lbs)
-
Stowed Dimensions:
• Length: ~11.13 m (36 ft 6 in)
• Width: ~2.44 m (8 ft)
• Height: ~3.00 m (9 ft 10 in) -
Platform Dimensions: 0.91 m × 2.44 m (36 in × 96 in)
-
Turning Radii:
• Inside (4WD): 2.13 m (7 ft)
• Outside (4WD): 4.42 m (14 ft 6 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial and plant maintenance
-
Utilities, telecommunication towers, and elevated structures
-
Bridge, overpass, and complex-access work
-
Event staging, rigging, and high-reach installations
-
Any job requiring both height and flexible outreach
Description
The JLG 800AJ is a rugged, diesel-powered articulating boom lift built for demanding outdoor and industrial environments. Thanks to its combination of height, reach, and articulating jib, it provides flexible access around obstacles and over obstructions. It’s well suited for contractors, facility operators, and rental fleets needing reliable performance in tough conditions.
Key Specifications
-
Working / Platform Height: 24.38 m (80 ft)
-
Horizontal Reach: 15.80 m (51 ft 10 in)
-
Up-and-Over Clearance: 9.78 m (32 ft 1 in)
-
Platform Capacity (Unrestricted): 227 kg (500 lbs)
-
Platform Rotator: 180° hydraulic
-
Jib Length: 1.83 m (6 ft)
-
Jib Articulation Range: +70° / –60° (total approx. 130°)
-
Swing / Turntable: 360° continuous
-
Drive Speed: 4.8 km/h (3.0 mph)
-
Gradeability: 45 % in 4WD mode
-
Machine Weight (Operating): ~15,558 kg (34,300 lbs)
-
Stowed Dimensions:
• Length: ~11.13 m (36 ft 6 in)
• Width: ~2.44 m (8 ft)
• Height: ~3.00 m (9 ft 10 in) -
Platform Dimensions: 0.91 m × 2.44 m (36 in × 96 in)
-
Turning Radii:
• Inside (4WD): 2.13 m (7 ft)
• Outside (4WD): 4.42 m (14 ft 6 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial and plant maintenance
-
Utilities, telecommunication towers, and elevated structures
-
Bridge, overpass, and complex-access work
-
Event staging, rigging, and high-reach installations
-
Any job requiring both height and flexible outreach
Description
The Zoomlion ZA14J is a diesel-powered articulating boom lift that combines compact design, smooth operation, and reliable performance. With excellent outreach, up-and-over clearance, and strong lifting capacity, it is ideal for construction, maintenance, and industrial applications that require access to difficult-to-reach areas with precision and stability.
Key Specifications
-
Working Height: 15.80 m (51 ft 10 in)
-
Horizontal Reach: 8.30 m (27 ft 3 in)
-
Up-and-Over Clearance: 7.55 m (24 ft 9 in)
-
Platform Capacity: 300 kg (660 lbs)
-
Drive Speed: 6.8 km/h (4.2 mph)
-
Gradeability: 45 %
-
Platform Size: 1.83 m × 0.76 m (6 ft × 2 ft 6 in)
-
Turntable Rotation: 355° non-continuous
-
Platform Rotation: ± 90°
-
Tail Swing: 0 (H-tail = 0)
-
Power Source: Diesel – Kubota V2403 engine (36.5 kW / 48.9 hp)
-
Fuel Tank Capacity: 65 L (17.2 gal)
-
Hydraulic System Capacity: 150 L (39.6 gal)
-
Hydraulic Tank Capacity: 76 L (20.1 gal)
-
Machine Weight: 7,100 kg (15,653 lbs)
-
Stowed Dimensions:
• Length: 6.57 m (21 ft 7 in)
• Width: 2.30 m (7 ft 7 in)
• Height: 2.27 m (7 ft 5 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial maintenance and plant operations
-
Oil & Gas, refinery, and power-generation facilities
-
Telecommunications and utility worksites
-
Event staging, rigging, and elevated installations
-
Building façade and signage access
Description
The Zoomlion ZA14J is a diesel-powered articulating boom lift that combines compact design, smooth operation, and reliable performance. With excellent outreach, up-and-over clearance, and strong lifting capacity, it is ideal for construction, maintenance, and industrial applications that require access to difficult-to-reach areas with precision and stability.
Key Specifications
-
Working Height: 15.80 m (51 ft 10 in)
-
Horizontal Reach: 8.30 m (27 ft 3 in)
-
Up-and-Over Clearance: 7.55 m (24 ft 9 in)
-
Platform Capacity: 300 kg (660 lbs)
-
Drive Speed: 6.8 km/h (4.2 mph)
-
Gradeability: 45 %
-
Platform Size: 1.83 m × 0.76 m (6 ft × 2 ft 6 in)
-
Turntable Rotation: 355° non-continuous
-
Platform Rotation: ± 90°
-
Tail Swing: 0 (H-tail = 0)
-
Power Source: Diesel – Kubota V2403 engine (36.5 kW / 48.9 hp)
-
Fuel Tank Capacity: 65 L (17.2 gal)
-
Hydraulic System Capacity: 150 L (39.6 gal)
-
Hydraulic Tank Capacity: 76 L (20.1 gal)
-
Machine Weight: 7,100 kg (15,653 lbs)
-
Stowed Dimensions:
• Length: 6.57 m (21 ft 7 in)
• Width: 2.30 m (7 ft 7 in)
• Height: 2.27 m (7 ft 5 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial maintenance and plant operations
-
Oil & Gas, refinery, and power-generation facilities
-
Telecommunications and utility worksites
-
Event staging, rigging, and elevated installations
-
Building façade and signage access
Description
The Genie Z-80/60 is a rugged, diesel-powered articulating boom lift built for challenging job sites. It offers outstanding reach, up-and-over capability, and work envelope flexibility for construction, maintenance, and industrial access tasks. With 4WD, reverse articulation, and premium hydraulics, it delivers dependable performance in demanding environments.
Key Specifications
-
Working Height: 25.77 m (84 ft)
-
Platform Height: 23.77 m (78 ft)
-
Horizontal Reach: 18.29 m (60 ft)
-
Up-and-Over Clearance: 8.83 m (29 ft)
-
Below-Ground Reach: 4.83 m (15 ft 10 in)
-
Platform Capacity: 227 kg (500 lbs)
-
Platform Rotation: 160° hydraulic
-
Vertical Jib Articulation: 135°
-
Turntable Rotation: 360° continuous
-
Drive Speed (stowed): 4.83 km/h (3.0 mph)
-
Drive Speed (raised): 1.10 km/h (0.68 mph)
-
Gradeability (4WD stowed): 45 %
-
Tailswing — Riser Up: 1.17 m (3 ft 10 in)
-
Tailswing — Riser Down: 2.24 m (7 ft 4 in)
-
Machine Weight (operating): ~ 17,010 kg (37,500 lbs)
-
Power Source: Diesel (Deutz TD 2011 L04i, ~ 58 kW / 78 hp)
-
Fuel Tank Capacity: 132 L (35 gal)
-
Hydraulic Tank Capacity: 170 L (45 gal)
-
Stowed Dimensions:
• Length: 11.27 m (37 ft)
• Width: 2.49 m (8 ft 2 in)
• Height: 3.00 m (9 ft 10 in) -
Wheelbase: 2.85 m (9 ft 4 in)
-
Ground Clearance (center): 0.30 m (12 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
High-access construction and infrastructure projects
-
Industrial and plant maintenance operations
-
Oil & Gas, refinery, and process facility work
-
Telecommunications and utility line access
-
Bridge, overpass, and elevated structure servicing
-
Event staging, façade work, signage, and exterior installations
Description
The Genie Z-80/60 is a rugged, diesel-powered articulating boom lift built for challenging job sites. It offers outstanding reach, up-and-over capability, and work envelope flexibility for construction, maintenance, and industrial access tasks. With 4WD, reverse articulation, and premium hydraulics, it delivers dependable performance in demanding environments.
Key Specifications
-
Working Height: 25.77 m (84 ft)
-
Platform Height: 23.77 m (78 ft)
-
Horizontal Reach: 18.29 m (60 ft)
-
Up-and-Over Clearance: 8.83 m (29 ft)
-
Below-Ground Reach: 4.83 m (15 ft 10 in)
-
Platform Capacity: 227 kg (500 lbs)
-
Platform Rotation: 160° hydraulic
-
Vertical Jib Articulation: 135°
-
Turntable Rotation: 360° continuous
-
Drive Speed (stowed): 4.83 km/h (3.0 mph)
-
Drive Speed (raised): 1.10 km/h (0.68 mph)
-
Gradeability (4WD stowed): 45 %
-
Tailswing — Riser Up: 1.17 m (3 ft 10 in)
-
Tailswing — Riser Down: 2.24 m (7 ft 4 in)
-
Machine Weight (operating): ~ 17,010 kg (37,500 lbs)
-
Power Source: Diesel (Deutz TD 2011 L04i, ~ 58 kW / 78 hp)
-
Fuel Tank Capacity: 132 L (35 gal)
-
Hydraulic Tank Capacity: 170 L (45 gal)
-
Stowed Dimensions:
• Length: 11.27 m (37 ft)
• Width: 2.49 m (8 ft 2 in)
• Height: 3.00 m (9 ft 10 in) -
Wheelbase: 2.85 m (9 ft 4 in)
-
Ground Clearance (center): 0.30 m (12 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes complete functionality checks before every hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
High-access construction and infrastructure projects
-
Industrial and plant maintenance operations
-
Oil & Gas, refinery, and process facility work
-
Telecommunications and utility line access
-
Bridge, overpass, and elevated structure servicing
-
Event staging, façade work, signage, and exterior installations
Description
The Genie Z-60/34 is a diesel-powered articulating boom lift built for reliable performance in demanding environments. With its impressive up-and-over reach, exceptional terrain capability, and smooth proportional controls, it provides safe and efficient access for construction, maintenance, and industrial projects.
Key Specifications
-
Working Height: 20.39 m (66 ft 4 in)
-
Platform Height: 18.39 m (60 ft 4 in)
-
Horizontal Reach: 11.05 m (36 ft 3 in)
-
Up-and-Over Clearance: 8.23 m (27 ft)
-
Platform Capacity: 227 kg (500 lbs)
-
Platform Size: 0.91 m × 2.44 m (3 ft × 8 ft)
-
Jib Articulation: 90° vertical movement
-
Turntable Rotation: 360° continuous
-
Platform Rotation: 180° hydraulic
-
Drive Speed (stowed): 4.8 km/h (3.0 mph)
-
Drive Speed (raised): 1.1 km/h (0.68 mph)
-
Gradeability: 40 % (4WD mode)
-
Tail Swing: None (zero tail swing design)
-
Machine Weight: 10,215 kg (22,520 lbs)
-
Power Source: Diesel engine – Deutz D2011 L03 2.9 L (46 kW / 62 hp)
-
Fuel Tank Capacity: 75 L (20 gal)
-
Hydraulic Tank Capacity: 170 L (45 gal)
-
Stowed Dimensions:
• Length: 8.15 m (26 ft 9 in)
• Width: 2.46 m (8 ft 1 in)
• Height: 2.69 m (8 ft 10 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes comprehensive functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial maintenance and plant operations
-
Oil & Gas, power generation, and refinery sites
-
Telecommunications and utility worksites
-
Bridge, overpass, and structural access
-
Event staging, façade, and signage installations
Description
The Genie Z-60/34 is a diesel-powered articulating boom lift built for reliable performance in demanding environments. With its impressive up-and-over reach, exceptional terrain capability, and smooth proportional controls, it provides safe and efficient access for construction, maintenance, and industrial projects.
Key Specifications
-
Working Height: 20.39 m (66 ft 4 in)
-
Platform Height: 18.39 m (60 ft 4 in)
-
Horizontal Reach: 11.05 m (36 ft 3 in)
-
Up-and-Over Clearance: 8.23 m (27 ft)
-
Platform Capacity: 227 kg (500 lbs)
-
Platform Size: 0.91 m × 2.44 m (3 ft × 8 ft)
-
Jib Articulation: 90° vertical movement
-
Turntable Rotation: 360° continuous
-
Platform Rotation: 180° hydraulic
-
Drive Speed (stowed): 4.8 km/h (3.0 mph)
-
Drive Speed (raised): 1.1 km/h (0.68 mph)
-
Gradeability: 40 % (4WD mode)
-
Tail Swing: None (zero tail swing design)
-
Machine Weight: 10,215 kg (22,520 lbs)
-
Power Source: Diesel engine – Deutz D2011 L03 2.9 L (46 kW / 62 hp)
-
Fuel Tank Capacity: 75 L (20 gal)
-
Hydraulic Tank Capacity: 170 L (45 gal)
-
Stowed Dimensions:
• Length: 8.15 m (26 ft 9 in)
• Width: 2.46 m (8 ft 1 in)
• Height: 2.69 m (8 ft 10 in)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each machine undergoes comprehensive functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical assistance teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure projects
-
Industrial maintenance and plant operations
-
Oil & Gas, power generation, and refinery sites
-
Telecommunications and utility worksites
-
Bridge, overpass, and structural access
-
Event staging, façade, and signage installations
