Product Details
Description

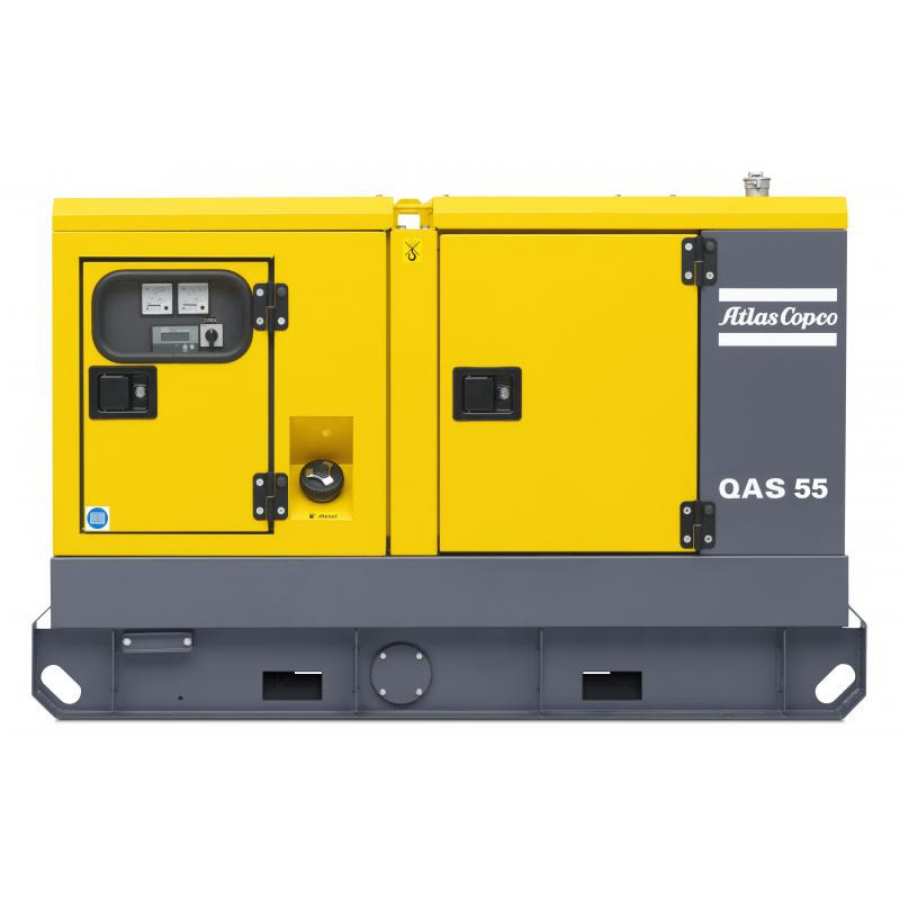

The Atlas Copco QAS55 is a heavy-duty, mobile diesel generator designed for site power, events, and backup use. Built with a rugged enclosure, multi-voltage capability, and paralleling features, it delivers dependable, flexible power in demanding conditions.
Key Specifications
-
Prime Power (PRP): 50 kVA (40 kW)
-
Standby Power (ESP): 55 kVA (44 kW)
-
Rated Voltage / Phase: Multi-voltage 3-phase + single phase options
-
Power Factor: 0.8
-
Fuel Tank Capacity: ~ 150 L
-
Fuel Consumption (Full Load): ~ 10.4 L/h
-
Machine Weight (Wet / Skid): ~ 1,354 kg / 1,185 kg
-
Dimensions (L × W × H): 2,100 mm × 950 mm × 1,326 mm
-
Sound Level (75% Load): ~ 68 dB(A) at 7 m
-
Paralleling Capability: Equipped with modular paralleling system for multi-unit operation
-
Mobility Features: Heavy-duty frame with forklift pockets, lifting eyes, skid or trailer mount option
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, tested, and certified before each hire
-
Supported by Dayim’s 24/7 service and logistics network
-
Available for short-term, long-term, or project-based rental contracts
Applications
-
Construction site power supply
-
Temporary backup for facilities and operations
-
Events, concerts, and outdoor installations
-
Remote or off-grid power requirements
-
Power for tools, lighting, pumps, and site equipment
-
Parallel power setups for variable load demands
Description
The JCB G115QS is a heavy-duty diesel generator designed for high-demand industrial and rental applications. Equipped with a JCB Dieselmax engine, sound-attenuated canopy, and modern control systems, it provides reliable, continuous power with strong performance and durability under variable load conditions.
Key Specifications
-
Prime Power: 105.0 kVA (84.0 kW)
-
Standby Power: 115.5 kVA (92.4 kW)
-
Voltage / Phase: 400/230 V, 3 Phase, 50 Hz
-
Engine: JCB Dieselmax 444 G-TCA-100, 4-cylinder
-
Alternator: Mecc Alte ECP34-2S/4
-
Rated Speed: 1,500 rpm
-
Fuel Tank Capacity: 270 L
-
Weight (Canopy): 1,830 kg
-
Dimensions (L × W × H): 2,850 mm × 1,140 mm × 1,830 mm
-
Control Panel: Deep Sea 4520 / 4520 MKII
-
Fuel Consumption (100% Load): ~ 27 L/h
-
Sound Level: ~ 68 dB(A) @ 7 m
-
Other Features:
• Sound-proofed, weather-resistant steel canopy
• Fork pockets and central lifting point
• Bunded base for fluid containment
• Lockable maintenance access panels
• Low noise performance designs
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each generator undergoes full functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction site power supply
-
Backup / standby power for industrial & commercial facilities
-
Events, concerts, and outdoor installations
-
Remote site power demands
-
Parallel generator setups for scalable capacity
Description
The JCB G115QS is a heavy-duty diesel generator designed for high-demand industrial and rental applications. Equipped with a JCB Dieselmax engine, sound-attenuated canopy, and modern control systems, it provides reliable, continuous power with strong performance and durability under variable load conditions.
Key Specifications
-
Prime Power: 105.0 kVA (84.0 kW)
-
Standby Power: 115.5 kVA (92.4 kW)
-
Voltage / Phase: 400/230 V, 3 Phase, 50 Hz
-
Engine: JCB Dieselmax 444 G-TCA-100, 4-cylinder
-
Alternator: Mecc Alte ECP34-2S/4
-
Rated Speed: 1,500 rpm
-
Fuel Tank Capacity: 270 L
-
Weight (Canopy): 1,830 kg
-
Dimensions (L × W × H): 2,850 mm × 1,140 mm × 1,830 mm
-
Control Panel: Deep Sea 4520 / 4520 MKII
-
Fuel Consumption (100% Load): ~ 27 L/h
-
Sound Level: ~ 68 dB(A) @ 7 m
-
Other Features:
• Sound-proofed, weather-resistant steel canopy
• Fork pockets and central lifting point
• Bunded base for fluid containment
• Lockable maintenance access panels
• Low noise performance designs
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each generator undergoes full functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction site power supply
-
Backup / standby power for industrial & commercial facilities
-
Events, concerts, and outdoor installations
-
Remote site power demands
-
Parallel generator setups for scalable capacity
Description
The Atlas Copco QAS210 is a high-performance diesel generator built for demanding applications and heavy-duty endurance. Engineered for rental fleets and industrial sites, it offers modular paralleling, robust build quality, and advanced fuel management to ensure consistent, reliable power in challenging environments.
Key Specifications
-
Prime Power (PRP): 210 kVA (168 kW)
-
Standby Power (ESP): ~ 230 kVA
-
Rated Voltage / Phase: Multi-voltage, 3-phase (e.g. 400 V and other selectable options)
-
Rated Speed: 1,800 rpm
-
Power Factor: 0.8 lagging
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption @ 100 % Load: ~ 45.7 L/h
-
Fuel Autonomy: ~ 7.8 hours (with standard tank)
-
Machine Weight (Net): ~ 2,210 kg
-
Machine Weight (Wet): ~ 2,510 kg
-
Dimensions (L × W × H): 3.38 m × 1.18 m × 1.66 m
-
Single-Step Load Acceptance (G2, ISO 8528): 70 %
-
Sound Level: ~ 75.7 dB(A) at 7 m
-
Overload Capability: 110 % rated load for limited periods
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with operational & safety standards
-
Fully tested and verified before each hire
-
Supported by Dayim’s 24/7 logistics, service, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Site power for large construction, infrastructure, and industrial projects
-
Emergency or backup power for facilities and critical systems
-
Events, concerts, and temporary installation power
-
Remote or off-grid power needs
-
Parallel operation for scalable power configurations
Description
The Atlas Copco QAS210 is a high-performance diesel generator built for demanding applications and heavy-duty endurance. Engineered for rental fleets and industrial sites, it offers modular paralleling, robust build quality, and advanced fuel management to ensure consistent, reliable power in challenging environments.
Key Specifications
-
Prime Power (PRP): 210 kVA (168 kW)
-
Standby Power (ESP): ~ 230 kVA
-
Rated Voltage / Phase: Multi-voltage, 3-phase (e.g. 400 V and other selectable options)
-
Rated Speed: 1,800 rpm
-
Power Factor: 0.8 lagging
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption @ 100 % Load: ~ 45.7 L/h
-
Fuel Autonomy: ~ 7.8 hours (with standard tank)
-
Machine Weight (Net): ~ 2,210 kg
-
Machine Weight (Wet): ~ 2,510 kg
-
Dimensions (L × W × H): 3.38 m × 1.18 m × 1.66 m
-
Single-Step Load Acceptance (G2, ISO 8528): 70 %
-
Sound Level: ~ 75.7 dB(A) at 7 m
-
Overload Capability: 110 % rated load for limited periods
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with operational & safety standards
-
Fully tested and verified before each hire
-
Supported by Dayim’s 24/7 logistics, service, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Site power for large construction, infrastructure, and industrial projects
-
Emergency or backup power for facilities and critical systems
-
Events, concerts, and temporary installation power
-
Remote or off-grid power needs
-
Parallel operation for scalable power configurations
Description
The Atlas Copco QAS630 is a high-capacity mobile diesel generator engineered for rigorous industrial, rental, and infrastructure applications. With its robust construction, modular paralleling capability, and sound-attenuated enclosure, it is designed for reliability, flexibility, and efficient serviceability across demanding sites.
Key Specifications
-
Prime Power (PRP): 629 kVA (503 kW)
-
Standby Power (ESP): 700 kVA (560 kW)
-
Voltage / Phase: Multi-voltage output, 3-phase (400 V / 480 V)
-
Rated Current (400 V): ~ 908 A
-
Machine Weight: 6,830 kg
-
Engine: Volvo TWD1643GE diesel
-
Cooling: Water-cooled system
-
Fuel Consumption (100% Load): ~ 124.4 L/h
-
Fuel Tank Capacity: ~ 860 L
-
Dimensions (Transport / Skid):
• Length: 4.80 m
• Width: 1.55 m
• Height: 2.29 m -
Design Features:
• Sound-attenuated, corrosion-resistant steel canopy
• Fold-out service panels with 1-side access
• Forklift pockets, lifting points, and robust base frame
• Integrated modular control for paralleling or load sharing
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before hire
-
Fully supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
High-demand construction and infrastructure power
-
Industrial plants, mines, and process facilities
-
Events, stadiums, and large-scale temporary installations
-
Backup / standby power for critical operations
-
Parallel generator configurations for scalable load growth
Description
The Atlas Copco QAS630 is a high-capacity mobile diesel generator engineered for rigorous industrial, rental, and infrastructure applications. With its robust construction, modular paralleling capability, and sound-attenuated enclosure, it is designed for reliability, flexibility, and efficient serviceability across demanding sites.
Key Specifications
-
Prime Power (PRP): 629 kVA (503 kW)
-
Standby Power (ESP): 700 kVA (560 kW)
-
Voltage / Phase: Multi-voltage output, 3-phase (400 V / 480 V)
-
Rated Current (400 V): ~ 908 A
-
Machine Weight: 6,830 kg
-
Engine: Volvo TWD1643GE diesel
-
Cooling: Water-cooled system
-
Fuel Consumption (100% Load): ~ 124.4 L/h
-
Fuel Tank Capacity: ~ 860 L
-
Dimensions (Transport / Skid):
• Length: 4.80 m
• Width: 1.55 m
• Height: 2.29 m -
Design Features:
• Sound-attenuated, corrosion-resistant steel canopy
• Fold-out service panels with 1-side access
• Forklift pockets, lifting points, and robust base frame
• Integrated modular control for paralleling or load sharing
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before hire
-
Fully supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
High-demand construction and infrastructure power
-
Industrial plants, mines, and process facilities
-
Events, stadiums, and large-scale temporary installations
-
Backup / standby power for critical operations
-
Parallel generator configurations for scalable load growth
Description
The JCB G220QS is a robust diesel generator built for heavy-duty industrial, rental, and backup power applications. It features a sound-insulated canopy, modular design, and comes equipped with advanced control systems and mobility features, delivering dependable, efficient power across demanding job sites.
Key Specifications
-
Prime Power (PRP): 200 kVA (160 kW)
-
Standby Power (ESP): 220 kVA (176 kW)
-
Voltage / Phase: 400/230 V, 3-phase (other voltage options for 60 Hz)
-
Engine: JCB 672 TA2G-170, turbocharged diesel, 6 cylinders
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption (100 % Load, Prime): ~ 43.6 L/h
-
Weight (Canopy): 2,700 kg
-
Dimensions (Canopy): 3,800 × 1,140 × 2,075 mm
-
Alternator: Brushless, self-regulating AVR
-
Cooling: Water-cooled radiator system
-
Control Panel: Deep Sea electronics (DSE 4520 / 4510)
-
Enclosure Features:
• Lockable access doors
• Fork pockets & central lift point
• Bunded base for spill containment
• Large service access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to dispatch
-
Fully supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered on short-term, long-term, or project-based rental contracts
Applications
-
Construction and infrastructure sites
-
Industrial and process plant backups
-
Large-scale events, concerts, temporary facilities
-
Remote or off-grid installations
-
Parallel generator configurations for scalable load support
Description
The JCB G220QS is a robust diesel generator built for heavy-duty industrial, rental, and backup power applications. It features a sound-insulated canopy, modular design, and comes equipped with advanced control systems and mobility features, delivering dependable, efficient power across demanding job sites.
Key Specifications
-
Prime Power (PRP): 200 kVA (160 kW)
-
Standby Power (ESP): 220 kVA (176 kW)
-
Voltage / Phase: 400/230 V, 3-phase (other voltage options for 60 Hz)
-
Engine: JCB 672 TA2G-170, turbocharged diesel, 6 cylinders
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption (100 % Load, Prime): ~ 43.6 L/h
-
Weight (Canopy): 2,700 kg
-
Dimensions (Canopy): 3,800 × 1,140 × 2,075 mm
-
Alternator: Brushless, self-regulating AVR
-
Cooling: Water-cooled radiator system
-
Control Panel: Deep Sea electronics (DSE 4520 / 4510)
-
Enclosure Features:
• Lockable access doors
• Fork pockets & central lift point
• Bunded base for spill containment
• Large service access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to dispatch
-
Fully supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered on short-term, long-term, or project-based rental contracts
Applications
-
Construction and infrastructure sites
-
Industrial and process plant backups
-
Large-scale events, concerts, temporary facilities
-
Remote or off-grid installations
-
Parallel generator configurations for scalable load support
Description
The FG Wilson P200-3 is a high-performance diesel generator built for reliability in demanding rental, construction, and industrial power applications. With strong prime and standby ratings, a robust enclosure, and efficient engine design, it ensures dependable power delivery across diverse site conditions.
Key Specifications
-
Prime Power (50 Hz): 180 kVA (144 kW)
-
Standby Power (50 Hz): 200 kVA (160 kW)
-
Prime Power (60 Hz): 200 kVA (160 kW)
-
Standby Power (60 Hz): 218.8 kVA (175 kW)
-
Voltage / Phase: 110–480 V, 3-phase
-
Engine: Perkins 1106A-70TAG3, turbocharged, intercooled
-
Speed / Frequency: 1,500 or 1,800 rpm
-
Fuel Tank Capacity: 394 L
-
Fuel Consumption (100% Prime): 39.8 L/h
-
Dimensions (Open Set): ~ 2,510 mm × 1,010 mm × 1,640 mm
-
Weight (Dry): ~ 1,521 kg
-
Weight (Wet): ~ 1,548 kg
-
Enclosure & Features:
• Sound-attenuated or open canopies available
• Heavy-duty steel base with forklift and lifting points
• Single-side service access
• 10% overload capability for 1 hour in 12 hours (prime mode)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully maintained under Dayim’s preventive maintenance schedule
-
Inspected, tested, and certified prior to dispatch
-
Supported with 24/7 technical, logistics, and field service teams
-
Offered under short-term, long-term, or project-based rental contracts
Applications
-
Construction and infrastructure power supply
-
Industrial facilities and plant backup
-
Events, stadiums, and large temporary installations
-
Remote or off-grid installations
-
Generator paralleling for scalable load support
Description
The FG Wilson P200-3 is a high-performance diesel generator built for reliability in demanding rental, construction, and industrial power applications. With strong prime and standby ratings, a robust enclosure, and efficient engine design, it ensures dependable power delivery across diverse site conditions.
Key Specifications
-
Prime Power (50 Hz): 180 kVA (144 kW)
-
Standby Power (50 Hz): 200 kVA (160 kW)
-
Prime Power (60 Hz): 200 kVA (160 kW)
-
Standby Power (60 Hz): 218.8 kVA (175 kW)
-
Voltage / Phase: 110–480 V, 3-phase
-
Engine: Perkins 1106A-70TAG3, turbocharged, intercooled
-
Speed / Frequency: 1,500 or 1,800 rpm
-
Fuel Tank Capacity: 394 L
-
Fuel Consumption (100% Prime): 39.8 L/h
-
Dimensions (Open Set): ~ 2,510 mm × 1,010 mm × 1,640 mm
-
Weight (Dry): ~ 1,521 kg
-
Weight (Wet): ~ 1,548 kg
-
Enclosure & Features:
• Sound-attenuated or open canopies available
• Heavy-duty steel base with forklift and lifting points
• Single-side service access
• 10% overload capability for 1 hour in 12 hours (prime mode)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully maintained under Dayim’s preventive maintenance schedule
-
Inspected, tested, and certified prior to dispatch
-
Supported with 24/7 technical, logistics, and field service teams
-
Offered under short-term, long-term, or project-based rental contracts
Applications
-
Construction and infrastructure power supply
-
Industrial facilities and plant backup
-
Events, stadiums, and large temporary installations
-
Remote or off-grid installations
-
Generator paralleling for scalable load support
Description
The Atlas Copco QAS360 is a heavy-duty mobile diesel generator engineered for high-demand industrial, construction, and rental applications. Built with rugged components and designed for modular paralleling, it offers reliable power delivery, compact transportability, and service-friendly access.
Key Specifications
-
Prime Power (PRP): 329.3 kVA (263.4 kW) Atlas Copco
-
Standby Power: 380 kVA (≈ 304 kW) Atlas Copco
-
Voltage / Phase: 400 V, 3-phase
-
Engine: Scania DC09 072A, 5 cylinders, water-cooled, electronic governor Atlas Copco
-
Rated Speed / RPM: 1,800 rpm Atlas Copco
-
Fuel Tank Capacity: 650 L (standard variant) Atlas Copco
-
Fuel Autonomy: ~ 9.4 hours at full load Atlas Copco
-
Sound Level @ 7 m: ~ 75 dB(A) Atlas Copco
-
Dimensions (L × W × H): 4.00 m × 1.18 m × 2.13 m Atlas Copco
-
Weight (Dry / Wet): 3,364 kg / 3,997 kg Atlas Copco
-
Alternator Protection / Insulation Class: IP23 / Class H Atlas Copco
-
Enclosure Features:
• Sound-attenuated galvanized steel canopy
• 110 % fluid-containment frame
• Forklift pockets and lifting points
• Service access panels, external drains, fuel filters
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before deployment
-
Supported 24/7 by Dayim’s technical, logistics, and service teams
-
Offered for short-term, long-term, or project-based contracts
Applications
-
Large-scale construction and infrastructure sites
-
Industrial plant backup or prime power
-
Events, concerts, and temporary installations
-
Parallel setups for scalable load support
-
Remote or off-grid installations
Description
The Atlas Copco QAS360 is a heavy-duty mobile diesel generator engineered for high-demand industrial, construction, and rental applications. Built with rugged components and designed for modular paralleling, it offers reliable power delivery, compact transportability, and service-friendly access.
Key Specifications
-
Prime Power (PRP): 329.3 kVA (263.4 kW) Atlas Copco
-
Standby Power: 380 kVA (≈ 304 kW) Atlas Copco
-
Voltage / Phase: 400 V, 3-phase
-
Engine: Scania DC09 072A, 5 cylinders, water-cooled, electronic governor Atlas Copco
-
Rated Speed / RPM: 1,800 rpm Atlas Copco
-
Fuel Tank Capacity: 650 L (standard variant) Atlas Copco
-
Fuel Autonomy: ~ 9.4 hours at full load Atlas Copco
-
Sound Level @ 7 m: ~ 75 dB(A) Atlas Copco
-
Dimensions (L × W × H): 4.00 m × 1.18 m × 2.13 m Atlas Copco
-
Weight (Dry / Wet): 3,364 kg / 3,997 kg Atlas Copco
-
Alternator Protection / Insulation Class: IP23 / Class H Atlas Copco
-
Enclosure Features:
• Sound-attenuated galvanized steel canopy
• 110 % fluid-containment frame
• Forklift pockets and lifting points
• Service access panels, external drains, fuel filters
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before deployment
-
Supported 24/7 by Dayim’s technical, logistics, and service teams
-
Offered for short-term, long-term, or project-based contracts
Applications
-
Large-scale construction and infrastructure sites
-
Industrial plant backup or prime power
-
Events, concerts, and temporary installations
-
Parallel setups for scalable load support
-
Remote or off-grid installations
