Product Details
Description

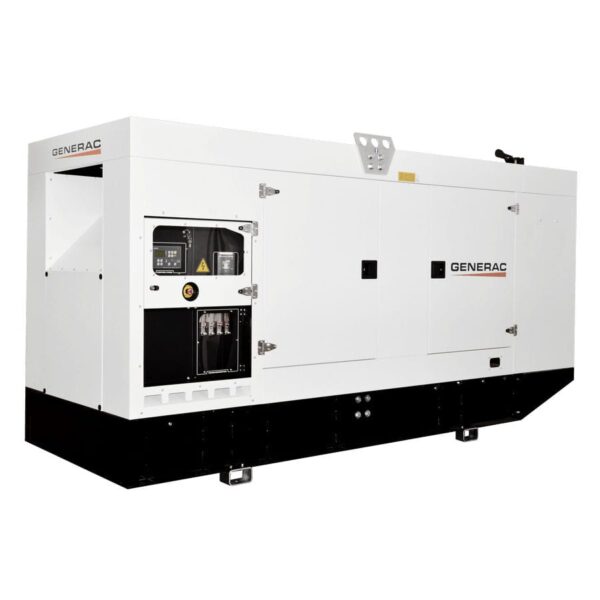

The Generac GMS-560V is a heavy-duty diesel-powered fixed (non-trailer) generator engineered primarily for aviation ground support and industrial power applications. Designed for reliability and high output, it features a robust enclosure, multi-voltage output, and advanced control options for continuous, standby, or emergency loads.
Key Specifications
-
Prime Power (PRP): 562 kVA
-
Standby Power (LTP / ESP): 625 kVA
-
Rated Frequency: 50 / 60 Hz
-
Voltage Outputs: 230 V, 400 V
-
Fuel Tank Capacity: 870 L
-
Fuel Consumption @ 75% Load: 123.6 L/h
-
Type: Canopy (sound-attenuated enclosure)
-
Dimensions (L × W × H): 4.40 m × 4.60 m × 2.27 m
-
Dry Weight (approx): 4,650 kg
-
Engine: Diesel (EU unregulated)
-
Control & Features:
• Digital control panel (ACP) standard
• Optional accessories: differential protection, external terminal board, socket kits, extended fuel tank, pre-heating, etc.
• Fixed-mount design intended for stationary installation
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to each hire
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Airport / aviation ground support power
-
Industrial and process plant standby or prime power
-
Large-scale facility backup and emergency systems
-
Infrastructure and utility installations
-
Remote or demanding power applications
Description
The JCB G115QS is a heavy-duty diesel generator designed for high-demand industrial and rental applications. Equipped with a JCB Dieselmax engine, sound-attenuated canopy, and modern control systems, it provides reliable, continuous power with strong performance and durability under variable load conditions.
Key Specifications
-
Prime Power: 105.0 kVA (84.0 kW)
-
Standby Power: 115.5 kVA (92.4 kW)
-
Voltage / Phase: 400/230 V, 3 Phase, 50 Hz
-
Engine: JCB Dieselmax 444 G-TCA-100, 4-cylinder
-
Alternator: Mecc Alte ECP34-2S/4
-
Rated Speed: 1,500 rpm
-
Fuel Tank Capacity: 270 L
-
Weight (Canopy): 1,830 kg
-
Dimensions (L × W × H): 2,850 mm × 1,140 mm × 1,830 mm
-
Control Panel: Deep Sea 4520 / 4520 MKII
-
Fuel Consumption (100% Load): ~ 27 L/h
-
Sound Level: ~ 68 dB(A) @ 7 m
-
Other Features:
• Sound-proofed, weather-resistant steel canopy
• Fork pockets and central lifting point
• Bunded base for fluid containment
• Lockable maintenance access panels
• Low noise performance designs
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each generator undergoes full functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction site power supply
-
Backup / standby power for industrial & commercial facilities
-
Events, concerts, and outdoor installations
-
Remote site power demands
-
Parallel generator setups for scalable capacity
Description
The JCB G115QS is a heavy-duty diesel generator designed for high-demand industrial and rental applications. Equipped with a JCB Dieselmax engine, sound-attenuated canopy, and modern control systems, it provides reliable, continuous power with strong performance and durability under variable load conditions.
Key Specifications
-
Prime Power: 105.0 kVA (84.0 kW)
-
Standby Power: 115.5 kVA (92.4 kW)
-
Voltage / Phase: 400/230 V, 3 Phase, 50 Hz
-
Engine: JCB Dieselmax 444 G-TCA-100, 4-cylinder
-
Alternator: Mecc Alte ECP34-2S/4
-
Rated Speed: 1,500 rpm
-
Fuel Tank Capacity: 270 L
-
Weight (Canopy): 1,830 kg
-
Dimensions (L × W × H): 2,850 mm × 1,140 mm × 1,830 mm
-
Control Panel: Deep Sea 4520 / 4520 MKII
-
Fuel Consumption (100% Load): ~ 27 L/h
-
Sound Level: ~ 68 dB(A) @ 7 m
-
Other Features:
• Sound-proofed, weather-resistant steel canopy
• Fork pockets and central lifting point
• Bunded base for fluid containment
• Lockable maintenance access panels
• Low noise performance designs
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each generator undergoes full functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction site power supply
-
Backup / standby power for industrial & commercial facilities
-
Events, concerts, and outdoor installations
-
Remote site power demands
-
Parallel generator setups for scalable capacity
Description
The JCB G220QS is a robust diesel generator built for heavy-duty industrial, rental, and backup power applications. It features a sound-insulated canopy, modular design, and comes equipped with advanced control systems and mobility features, delivering dependable, efficient power across demanding job sites.
Key Specifications
-
Prime Power (PRP): 200 kVA (160 kW)
-
Standby Power (ESP): 220 kVA (176 kW)
-
Voltage / Phase: 400/230 V, 3-phase (other voltage options for 60 Hz)
-
Engine: JCB 672 TA2G-170, turbocharged diesel, 6 cylinders
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption (100 % Load, Prime): ~ 43.6 L/h
-
Weight (Canopy): 2,700 kg
-
Dimensions (Canopy): 3,800 × 1,140 × 2,075 mm
-
Alternator: Brushless, self-regulating AVR
-
Cooling: Water-cooled radiator system
-
Control Panel: Deep Sea electronics (DSE 4520 / 4510)
-
Enclosure Features:
• Lockable access doors
• Fork pockets & central lift point
• Bunded base for spill containment
• Large service access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to dispatch
-
Fully supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered on short-term, long-term, or project-based rental contracts
Applications
-
Construction and infrastructure sites
-
Industrial and process plant backups
-
Large-scale events, concerts, temporary facilities
-
Remote or off-grid installations
-
Parallel generator configurations for scalable load support
Description
The JCB G220QS is a robust diesel generator built for heavy-duty industrial, rental, and backup power applications. It features a sound-insulated canopy, modular design, and comes equipped with advanced control systems and mobility features, delivering dependable, efficient power across demanding job sites.
Key Specifications
-
Prime Power (PRP): 200 kVA (160 kW)
-
Standby Power (ESP): 220 kVA (176 kW)
-
Voltage / Phase: 400/230 V, 3-phase (other voltage options for 60 Hz)
-
Engine: JCB 672 TA2G-170, turbocharged diesel, 6 cylinders
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption (100 % Load, Prime): ~ 43.6 L/h
-
Weight (Canopy): 2,700 kg
-
Dimensions (Canopy): 3,800 × 1,140 × 2,075 mm
-
Alternator: Brushless, self-regulating AVR
-
Cooling: Water-cooled radiator system
-
Control Panel: Deep Sea electronics (DSE 4520 / 4510)
-
Enclosure Features:
• Lockable access doors
• Fork pockets & central lift point
• Bunded base for spill containment
• Large service access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to dispatch
-
Fully supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered on short-term, long-term, or project-based rental contracts
Applications
-
Construction and infrastructure sites
-
Industrial and process plant backups
-
Large-scale events, concerts, temporary facilities
-
Remote or off-grid installations
-
Parallel generator configurations for scalable load support
Description
The Atlas Copco QES 400 is a heavy-duty diesel generator designed for robust performance in industrial, rental, and backup power applications. It features a sound-insulated, weather-resistant enclosure and is engineered to deliver reliable prime power under variable load conditions, while offering ease of service and transport.
Key Specifications
-
Prime Power (PRP): 400 kVA (≈ 320 kW)
-
Standby / Emergency Power (ESP): ~ 414 kVA (≈ 331 kW)
-
Voltage / Phase: 400/230 V, 3-phase
-
Rated Frequency: 50 Hz
-
Power Factor: 0.8
-
Rated Current (at PRP): 579 A
-
Engine / Alternator: Diesel, turbocharged, water-cooled (model varies)
-
Fuel Tank Capacity: ~ 850 L (typical for QES canopy units of this class)
-
Fuel Consumption (100 % Load): ~ 76 L/h (approximate estimate)
-
Sound Level (at 7 m): ~ 71 dB(A)
-
Machine Weight (Gross): ~ 5,960 kg
-
Dimensions (L × W × H): ~ 3,845 mm × 1,450 mm × 1,940 mm
-
Enclosure & Features:
• Sound-attenuated and anti-corrosion steel canopy
• 110 % fluid-containment base frame
• Large access panels for easy maintenance
• Forklift slots and lifting points
• Control panel in plug-and-play layout
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, tested, and certified prior to dispatch
-
Backed by Dayim’s 24/7 technical, service, and logistics network
-
Available under short-term, long-term, or project-based rental contracts
Applications
-
Power supply for large construction and infrastructure projects
-
Emergency and backup power for factories and facilities
-
Event, stadium, and temporary installations
-
Remote or off-grid operations requiring high-capacity power
-
Parallel generator systems for scalable power demands
Description
The Atlas Copco QES 400 is a heavy-duty diesel generator designed for robust performance in industrial, rental, and backup power applications. It features a sound-insulated, weather-resistant enclosure and is engineered to deliver reliable prime power under variable load conditions, while offering ease of service and transport.
Key Specifications
-
Prime Power (PRP): 400 kVA (≈ 320 kW)
-
Standby / Emergency Power (ESP): ~ 414 kVA (≈ 331 kW)
-
Voltage / Phase: 400/230 V, 3-phase
-
Rated Frequency: 50 Hz
-
Power Factor: 0.8
-
Rated Current (at PRP): 579 A
-
Engine / Alternator: Diesel, turbocharged, water-cooled (model varies)
-
Fuel Tank Capacity: ~ 850 L (typical for QES canopy units of this class)
-
Fuel Consumption (100 % Load): ~ 76 L/h (approximate estimate)
-
Sound Level (at 7 m): ~ 71 dB(A)
-
Machine Weight (Gross): ~ 5,960 kg
-
Dimensions (L × W × H): ~ 3,845 mm × 1,450 mm × 1,940 mm
-
Enclosure & Features:
• Sound-attenuated and anti-corrosion steel canopy
• 110 % fluid-containment base frame
• Large access panels for easy maintenance
• Forklift slots and lifting points
• Control panel in plug-and-play layout
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, tested, and certified prior to dispatch
-
Backed by Dayim’s 24/7 technical, service, and logistics network
-
Available under short-term, long-term, or project-based rental contracts
Applications
-
Power supply for large construction and infrastructure projects
-
Emergency and backup power for factories and facilities
-
Event, stadium, and temporary installations
-
Remote or off-grid operations requiring high-capacity power
-
Parallel generator systems for scalable power demands
Description
The Atlas Copco QAS325 is a high-performance diesel generator built for heavy-duty industrial, rental, and construction power applications. It delivers reliable continuous power with strong voltage stability, efficient fuel performance, and a robust, sound-attenuated enclosure designed for easy service access and mobility.
Key Specifications
-
Prime Power (PRP): 325 kVA (260 kW)
-
Standby Power (ESP): 355 kVA (284 kW)
-
Voltage / Phase: 400 V, 3-phase
-
Power Factor: 0.8
-
Engine: Volvo TAD1351GE, 6-cylinder, turbocharged and water-cooled
-
Speed / Frequency: 1,500 rpm / 50 Hz
-
Fuel Tank Capacity: 530 L
-
Fuel Consumption (100 % Load): ~ 67 L/h
-
Machine Weight (Wet): ~ 4,735 kg
-
Dimensions (L × W × H): 4.02 m × 1.39 m × 2.02 m
-
Sound Level (at 7 m): ~ 71 dB(A)
-
Enclosure & Features:
• Sound-attenuated, corrosion-resistant canopy
• Forklift pockets and lifting points
• 110 % fluid containment base
• Modular paralleling capability
• Large service access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before each hire
-
Fully supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure site power
-
Industrial plant and process facility backup
-
Events, staging, and outdoor installations
-
Remote or off-grid operations
-
Parallel generator configurations for scalable loads
Description
The Atlas Copco QAS325 is a high-performance diesel generator built for heavy-duty industrial, rental, and construction power applications. It delivers reliable continuous power with strong voltage stability, efficient fuel performance, and a robust, sound-attenuated enclosure designed for easy service access and mobility.
Key Specifications
-
Prime Power (PRP): 325 kVA (260 kW)
-
Standby Power (ESP): 355 kVA (284 kW)
-
Voltage / Phase: 400 V, 3-phase
-
Power Factor: 0.8
-
Engine: Volvo TAD1351GE, 6-cylinder, turbocharged and water-cooled
-
Speed / Frequency: 1,500 rpm / 50 Hz
-
Fuel Tank Capacity: 530 L
-
Fuel Consumption (100 % Load): ~ 67 L/h
-
Machine Weight (Wet): ~ 4,735 kg
-
Dimensions (L × W × H): 4.02 m × 1.39 m × 2.02 m
-
Sound Level (at 7 m): ~ 71 dB(A)
-
Enclosure & Features:
• Sound-attenuated, corrosion-resistant canopy
• Forklift pockets and lifting points
• 110 % fluid containment base
• Modular paralleling capability
• Large service access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before each hire
-
Fully supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure site power
-
Industrial plant and process facility backup
-
Events, staging, and outdoor installations
-
Remote or off-grid operations
-
Parallel generator configurations for scalable loads
Description
The Atlas Copco QAS360 is a heavy-duty mobile diesel generator engineered for high-demand industrial, construction, and rental applications. Built with rugged components and designed for modular paralleling, it offers reliable power delivery, compact transportability, and service-friendly access.
Key Specifications
-
Prime Power (PRP): 329.3 kVA (263.4 kW) Atlas Copco
-
Standby Power: 380 kVA (≈ 304 kW) Atlas Copco
-
Voltage / Phase: 400 V, 3-phase
-
Engine: Scania DC09 072A, 5 cylinders, water-cooled, electronic governor Atlas Copco
-
Rated Speed / RPM: 1,800 rpm Atlas Copco
-
Fuel Tank Capacity: 650 L (standard variant) Atlas Copco
-
Fuel Autonomy: ~ 9.4 hours at full load Atlas Copco
-
Sound Level @ 7 m: ~ 75 dB(A) Atlas Copco
-
Dimensions (L × W × H): 4.00 m × 1.18 m × 2.13 m Atlas Copco
-
Weight (Dry / Wet): 3,364 kg / 3,997 kg Atlas Copco
-
Alternator Protection / Insulation Class: IP23 / Class H Atlas Copco
-
Enclosure Features:
• Sound-attenuated galvanized steel canopy
• 110 % fluid-containment frame
• Forklift pockets and lifting points
• Service access panels, external drains, fuel filters
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before deployment
-
Supported 24/7 by Dayim’s technical, logistics, and service teams
-
Offered for short-term, long-term, or project-based contracts
Applications
-
Large-scale construction and infrastructure sites
-
Industrial plant backup or prime power
-
Events, concerts, and temporary installations
-
Parallel setups for scalable load support
-
Remote or off-grid installations
Description
The Atlas Copco QAS360 is a heavy-duty mobile diesel generator engineered for high-demand industrial, construction, and rental applications. Built with rugged components and designed for modular paralleling, it offers reliable power delivery, compact transportability, and service-friendly access.
Key Specifications
-
Prime Power (PRP): 329.3 kVA (263.4 kW) Atlas Copco
-
Standby Power: 380 kVA (≈ 304 kW) Atlas Copco
-
Voltage / Phase: 400 V, 3-phase
-
Engine: Scania DC09 072A, 5 cylinders, water-cooled, electronic governor Atlas Copco
-
Rated Speed / RPM: 1,800 rpm Atlas Copco
-
Fuel Tank Capacity: 650 L (standard variant) Atlas Copco
-
Fuel Autonomy: ~ 9.4 hours at full load Atlas Copco
-
Sound Level @ 7 m: ~ 75 dB(A) Atlas Copco
-
Dimensions (L × W × H): 4.00 m × 1.18 m × 2.13 m Atlas Copco
-
Weight (Dry / Wet): 3,364 kg / 3,997 kg Atlas Copco
-
Alternator Protection / Insulation Class: IP23 / Class H Atlas Copco
-
Enclosure Features:
• Sound-attenuated galvanized steel canopy
• 110 % fluid-containment frame
• Forklift pockets and lifting points
• Service access panels, external drains, fuel filters
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before deployment
-
Supported 24/7 by Dayim’s technical, logistics, and service teams
-
Offered for short-term, long-term, or project-based contracts
Applications
-
Large-scale construction and infrastructure sites
-
Industrial plant backup or prime power
-
Events, concerts, and temporary installations
-
Parallel setups for scalable load support
-
Remote or off-grid installations
Description
The JCB G275QS is a heavy-duty diesel generator designed for commercial, industrial, and rental deployments. Equipped with robust components and modern control systems, it balances power, durability, and user-friendliness. It’s built to deliver dependable standby or prime power in demanding environments.
Key Specifications
-
Prime Power (PRP): 250 kVA / 200 kW
-
Standby Power (ESP): 275 kVA / 220 kW
-
Voltage / Phase: 400/415 V, 3-phase
-
Engine: Cummins QSL9-G5
-
Alternator: Mecc Alte ECO38-1L/4A
-
Fuel Tank Capacity: 470 L (bunded steel tank)
-
Sound Level: 68.5 dB(A) at 7 m
-
Dimensions (L × W × H): 3,900 × 1,400 × 2,290 mm
-
Weight: ~ 4,350 kg
-
Control Panel: DSE 4520 digital controller
-
Design Features:
• Soundproof weatherproof canopy
• Fork pockets & central lifting point
• 3-way fuel valve & battery isolator
• Earth leakage protection & adjustable MCCB
• Heavy-duty air filtration, coolant & oil monitoring
• Easy service access via large doors
Availability & Readiness
-
Units ready for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance framework
-
Inspected, tested, and certified before deployment
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Backup power for industrial facilities and plants
-
Temporary or primary power in infrastructure and construction
-
Large events, stadiums, concert venues
-
Remote and off-grid installations
-
Parallel generator installations for high-load redundancy
Description
The JCB G275QS is a heavy-duty diesel generator designed for commercial, industrial, and rental deployments. Equipped with robust components and modern control systems, it balances power, durability, and user-friendliness. It’s built to deliver dependable standby or prime power in demanding environments.
Key Specifications
-
Prime Power (PRP): 250 kVA / 200 kW
-
Standby Power (ESP): 275 kVA / 220 kW
-
Voltage / Phase: 400/415 V, 3-phase
-
Engine: Cummins QSL9-G5
-
Alternator: Mecc Alte ECO38-1L/4A
-
Fuel Tank Capacity: 470 L (bunded steel tank)
-
Sound Level: 68.5 dB(A) at 7 m
-
Dimensions (L × W × H): 3,900 × 1,400 × 2,290 mm
-
Weight: ~ 4,350 kg
-
Control Panel: DSE 4520 digital controller
-
Design Features:
• Soundproof weatherproof canopy
• Fork pockets & central lifting point
• 3-way fuel valve & battery isolator
• Earth leakage protection & adjustable MCCB
• Heavy-duty air filtration, coolant & oil monitoring
• Easy service access via large doors
Availability & Readiness
-
Units ready for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance framework
-
Inspected, tested, and certified before deployment
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Backup power for industrial facilities and plants
-
Temporary or primary power in infrastructure and construction
-
Large events, stadiums, concert venues
-
Remote and off-grid installations
-
Parallel generator installations for high-load redundancy
