Product Details
Description

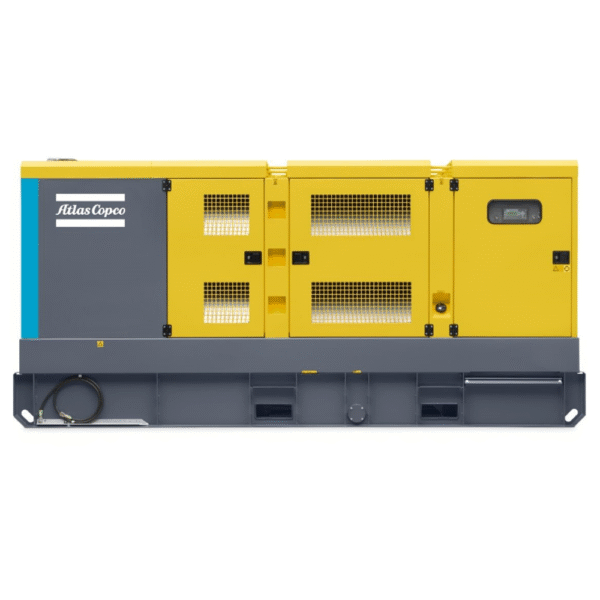

The Atlas Copco QAS360 is a heavy-duty mobile diesel generator engineered for high-demand industrial, construction, and rental applications. Built with rugged components and designed for modular paralleling, it offers reliable power delivery, compact transportability, and service-friendly access.
Key Specifications
-
Prime Power (PRP): 329.3 kVA (263.4 kW) Atlas Copco
-
Standby Power: 380 kVA (≈ 304 kW) Atlas Copco
-
Voltage / Phase: 400 V, 3-phase
-
Engine: Scania DC09 072A, 5 cylinders, water-cooled, electronic governor Atlas Copco
-
Rated Speed / RPM: 1,800 rpm Atlas Copco
-
Fuel Tank Capacity: 650 L (standard variant) Atlas Copco
-
Fuel Autonomy: ~ 9.4 hours at full load Atlas Copco
-
Sound Level @ 7 m: ~ 75 dB(A) Atlas Copco
-
Dimensions (L × W × H): 4.00 m × 1.18 m × 2.13 m Atlas Copco
-
Weight (Dry / Wet): 3,364 kg / 3,997 kg Atlas Copco
-
Alternator Protection / Insulation Class: IP23 / Class H Atlas Copco
-
Enclosure Features:
• Sound-attenuated galvanized steel canopy
• 110 % fluid-containment frame
• Forklift pockets and lifting points
• Service access panels, external drains, fuel filters
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before deployment
-
Supported 24/7 by Dayim’s technical, logistics, and service teams
-
Offered for short-term, long-term, or project-based contracts
Applications
-
Large-scale construction and infrastructure sites
-
Industrial plant backup or prime power
-
Events, concerts, and temporary installations
-
Parallel setups for scalable load support
-
Remote or off-grid installations
Description
The JCB G115QS is a heavy-duty diesel generator designed for high-demand industrial and rental applications. Equipped with a JCB Dieselmax engine, sound-attenuated canopy, and modern control systems, it provides reliable, continuous power with strong performance and durability under variable load conditions.
Key Specifications
-
Prime Power: 105.0 kVA (84.0 kW)
-
Standby Power: 115.5 kVA (92.4 kW)
-
Voltage / Phase: 400/230 V, 3 Phase, 50 Hz
-
Engine: JCB Dieselmax 444 G-TCA-100, 4-cylinder
-
Alternator: Mecc Alte ECP34-2S/4
-
Rated Speed: 1,500 rpm
-
Fuel Tank Capacity: 270 L
-
Weight (Canopy): 1,830 kg
-
Dimensions (L × W × H): 2,850 mm × 1,140 mm × 1,830 mm
-
Control Panel: Deep Sea 4520 / 4520 MKII
-
Fuel Consumption (100% Load): ~ 27 L/h
-
Sound Level: ~ 68 dB(A) @ 7 m
-
Other Features:
• Sound-proofed, weather-resistant steel canopy
• Fork pockets and central lifting point
• Bunded base for fluid containment
• Lockable maintenance access panels
• Low noise performance designs
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each generator undergoes full functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction site power supply
-
Backup / standby power for industrial & commercial facilities
-
Events, concerts, and outdoor installations
-
Remote site power demands
-
Parallel generator setups for scalable capacity
Description
The JCB G115QS is a heavy-duty diesel generator designed for high-demand industrial and rental applications. Equipped with a JCB Dieselmax engine, sound-attenuated canopy, and modern control systems, it provides reliable, continuous power with strong performance and durability under variable load conditions.
Key Specifications
-
Prime Power: 105.0 kVA (84.0 kW)
-
Standby Power: 115.5 kVA (92.4 kW)
-
Voltage / Phase: 400/230 V, 3 Phase, 50 Hz
-
Engine: JCB Dieselmax 444 G-TCA-100, 4-cylinder
-
Alternator: Mecc Alte ECP34-2S/4
-
Rated Speed: 1,500 rpm
-
Fuel Tank Capacity: 270 L
-
Weight (Canopy): 1,830 kg
-
Dimensions (L × W × H): 2,850 mm × 1,140 mm × 1,830 mm
-
Control Panel: Deep Sea 4520 / 4520 MKII
-
Fuel Consumption (100% Load): ~ 27 L/h
-
Sound Level: ~ 68 dB(A) @ 7 m
-
Other Features:
• Sound-proofed, weather-resistant steel canopy
• Fork pockets and central lifting point
• Bunded base for fluid containment
• Lockable maintenance access panels
• Low noise performance designs
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all safety and operational standards
-
Each generator undergoes full functionality checks before hire
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction site power supply
-
Backup / standby power for industrial & commercial facilities
-
Events, concerts, and outdoor installations
-
Remote site power demands
-
Parallel generator setups for scalable capacity
Description
The Atlas Copco QAS-30PD is a robust diesel generator built for rental, site power, and backup applications. With its durable enclosure, efficient engine, and flexible output capabilities, it is suitable for construction, events, facilities, and remote installations where reliable prime power is required.
Key Specifications
-
Prime Power (PRP): 30 kVA (24 kW)
-
Rated Voltage / Phase: 400 V, 3-phase (with line-to-line & line-to-neutral configurations)
-
Engine: Perkins 1103A-33G2 (diesel)
-
Machine Weight: ~ 1,460 kg
-
Cooling: Water-cooled system
-
Fuel System: Includes fuel filter, water separator
-
Enclosure: Sound-insulated canopy with side access doors
-
Frame / Base: Integrated forklift slots and lifting provisions
Availability & Readiness
-
Available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventative maintenance program
-
Inspected, tested, and certified prior to every hire
-
Controlled systems (engine, control panel, alternator) verified operational
-
Supported by Dayim’s 24/7 service, logistics & technical teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Construction site power supply
-
Backup or emergency power use
-
Events, lighting, and staging power
-
Remote site installations and off-grid operations
-
Support for tools, pumps, HVAC, and instrumentation
Description
The Atlas Copco QAS-30PD is a robust diesel generator built for rental, site power, and backup applications. With its durable enclosure, efficient engine, and flexible output capabilities, it is suitable for construction, events, facilities, and remote installations where reliable prime power is required.
Key Specifications
-
Prime Power (PRP): 30 kVA (24 kW)
-
Rated Voltage / Phase: 400 V, 3-phase (with line-to-line & line-to-neutral configurations)
-
Engine: Perkins 1103A-33G2 (diesel)
-
Machine Weight: ~ 1,460 kg
-
Cooling: Water-cooled system
-
Fuel System: Includes fuel filter, water separator
-
Enclosure: Sound-insulated canopy with side access doors
-
Frame / Base: Integrated forklift slots and lifting provisions
Availability & Readiness
-
Available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventative maintenance program
-
Inspected, tested, and certified prior to every hire
-
Controlled systems (engine, control panel, alternator) verified operational
-
Supported by Dayim’s 24/7 service, logistics & technical teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Construction site power supply
-
Backup or emergency power use
-
Events, lighting, and staging power
-
Remote site installations and off-grid operations
-
Support for tools, pumps, HVAC, and instrumentation
Description
The Atlas Copco QAS170 is a high-capacity mobile generator built for demanding rental, construction, and industrial projects. It offers robust performance, modular paralleling capability, efficient fuel management, and simplified serviceability — making it a reliable power solution for critical or continuous-duty applications.
Key Specifications
-
Prime Power (PRP): 170 kVA (136 kW)
-
Standby Power (ESP): 204 kVA (163 kW)
-
Voltage / Phase: 400 V, 3-phase (multi-voltage options available)
-
Power Factor: 0.8
-
Rated Speed: 1,500 rpm
-
Engine: Perkins 1106A-70TAG3 (turbocharged, aftercooled)
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption @ 100 % PRP Load: 38.7 L/h
-
Fuel Autonomy: ~ 9.3 hours (with standard tank)
-
Weight (Dry / Wet): 2,110 kg / 2,410 kg
-
Dimensions (L × W × H): 3.378 m × 1.180 m × 1.662 m
-
Operation Features:
• Single-step G2 load acceptance 70 %
• Paralleling capability via Power Management System
• 110 % fluid-containment base
• Large service access panels, forklift pockets, lifting points
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, tested, and certified before every dispatch
-
Comprehensive checks on engine, alternator, and controls
-
Supported by Dayim’s 24/7 technical, logistics, and field service teams
-
Offered under short-term, long-term, or project-based rental agreements
Applications
-
Construction and infrastructure site power
-
Industrial and process plant backup supply
-
Large event and staging systems
-
Remote or off-grid installations
-
Parallel power configurations for scalable loads
Description
The Atlas Copco QAS170 is a high-capacity mobile generator built for demanding rental, construction, and industrial projects. It offers robust performance, modular paralleling capability, efficient fuel management, and simplified serviceability — making it a reliable power solution for critical or continuous-duty applications.
Key Specifications
-
Prime Power (PRP): 170 kVA (136 kW)
-
Standby Power (ESP): 204 kVA (163 kW)
-
Voltage / Phase: 400 V, 3-phase (multi-voltage options available)
-
Power Factor: 0.8
-
Rated Speed: 1,500 rpm
-
Engine: Perkins 1106A-70TAG3 (turbocharged, aftercooled)
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption @ 100 % PRP Load: 38.7 L/h
-
Fuel Autonomy: ~ 9.3 hours (with standard tank)
-
Weight (Dry / Wet): 2,110 kg / 2,410 kg
-
Dimensions (L × W × H): 3.378 m × 1.180 m × 1.662 m
-
Operation Features:
• Single-step G2 load acceptance 70 %
• Paralleling capability via Power Management System
• 110 % fluid-containment base
• Large service access panels, forklift pockets, lifting points
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, tested, and certified before every dispatch
-
Comprehensive checks on engine, alternator, and controls
-
Supported by Dayim’s 24/7 technical, logistics, and field service teams
-
Offered under short-term, long-term, or project-based rental agreements
Applications
-
Construction and infrastructure site power
-
Industrial and process plant backup supply
-
Large event and staging systems
-
Remote or off-grid installations
-
Parallel power configurations for scalable loads
Description
The Atlas Copco QAS210 is a high-performance diesel generator built for demanding applications and heavy-duty endurance. Engineered for rental fleets and industrial sites, it offers modular paralleling, robust build quality, and advanced fuel management to ensure consistent, reliable power in challenging environments.
Key Specifications
-
Prime Power (PRP): 210 kVA (168 kW)
-
Standby Power (ESP): ~ 230 kVA
-
Rated Voltage / Phase: Multi-voltage, 3-phase (e.g. 400 V and other selectable options)
-
Rated Speed: 1,800 rpm
-
Power Factor: 0.8 lagging
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption @ 100 % Load: ~ 45.7 L/h
-
Fuel Autonomy: ~ 7.8 hours (with standard tank)
-
Machine Weight (Net): ~ 2,210 kg
-
Machine Weight (Wet): ~ 2,510 kg
-
Dimensions (L × W × H): 3.38 m × 1.18 m × 1.66 m
-
Single-Step Load Acceptance (G2, ISO 8528): 70 %
-
Sound Level: ~ 75.7 dB(A) at 7 m
-
Overload Capability: 110 % rated load for limited periods
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with operational & safety standards
-
Fully tested and verified before each hire
-
Supported by Dayim’s 24/7 logistics, service, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Site power for large construction, infrastructure, and industrial projects
-
Emergency or backup power for facilities and critical systems
-
Events, concerts, and temporary installation power
-
Remote or off-grid power needs
-
Parallel operation for scalable power configurations
Description
The Atlas Copco QAS210 is a high-performance diesel generator built for demanding applications and heavy-duty endurance. Engineered for rental fleets and industrial sites, it offers modular paralleling, robust build quality, and advanced fuel management to ensure consistent, reliable power in challenging environments.
Key Specifications
-
Prime Power (PRP): 210 kVA (168 kW)
-
Standby Power (ESP): ~ 230 kVA
-
Rated Voltage / Phase: Multi-voltage, 3-phase (e.g. 400 V and other selectable options)
-
Rated Speed: 1,800 rpm
-
Power Factor: 0.8 lagging
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption @ 100 % Load: ~ 45.7 L/h
-
Fuel Autonomy: ~ 7.8 hours (with standard tank)
-
Machine Weight (Net): ~ 2,210 kg
-
Machine Weight (Wet): ~ 2,510 kg
-
Dimensions (L × W × H): 3.38 m × 1.18 m × 1.66 m
-
Single-Step Load Acceptance (G2, ISO 8528): 70 %
-
Sound Level: ~ 75.7 dB(A) at 7 m
-
Overload Capability: 110 % rated load for limited periods
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with operational & safety standards
-
Fully tested and verified before each hire
-
Supported by Dayim’s 24/7 logistics, service, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Site power for large construction, infrastructure, and industrial projects
-
Emergency or backup power for facilities and critical systems
-
Events, concerts, and temporary installation power
-
Remote or off-grid power needs
-
Parallel operation for scalable power configurations
Description
The GMH-370V is a diesel generator engineered for high-demand rental and industrial applications. It offers strong power output, reliable control systems, and protection features, making it ideal for job sites, backup power, or event power deployments.
Key Specifications
-
Prime Power (PRP): 370 kVA
-
Standby / Emergency Power (ESP): ~ 407 kVA
-
Voltage / Phase: Multi-voltage, 3-phase (V variant)
-
Power Factor: 0.8
-
Fuel Tank Capacity: [spec to confirm]
-
Fuel Consumption (100 % Load): [spec to confirm]
-
Engine: Diesel, turbocharged (model to confirm)
-
Rated Speed / Frequency: 1,500 rpm / 50 Hz (or 1,800 rpm / 60 Hz variant)
-
Sound Level: [spec to confirm]
-
Machine Weight (Dry / Wet): [spec to confirm]
-
Dimensions (L × W × H): [spec to confirm]
-
Enclosure & Features:
• Sound-attenuated steel canopy
• Lockable access panels
• Forklift pockets & lifting points
• Bunded base for fluid containment
• Control panel with protections and monitoring
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and tested before each dispatch
-
Supported 24/7 by Dayim’s service, logistics, and technical teams
-
Available under short-term, long-term, and project-based rental contracts
Applications
-
Construction, infrastructure, and site power supply
-
Backup and standby power for industrial and commercial facilities
-
Events, staging, and large-scale temporary installations
-
Remote or off-grid power applications
-
Parallel generator systems for scalable capacity
Description
The GMH-370V is a diesel generator engineered for high-demand rental and industrial applications. It offers strong power output, reliable control systems, and protection features, making it ideal for job sites, backup power, or event power deployments.
Key Specifications
-
Prime Power (PRP): 370 kVA
-
Standby / Emergency Power (ESP): ~ 407 kVA
-
Voltage / Phase: Multi-voltage, 3-phase (V variant)
-
Power Factor: 0.8
-
Fuel Tank Capacity: [spec to confirm]
-
Fuel Consumption (100 % Load): [spec to confirm]
-
Engine: Diesel, turbocharged (model to confirm)
-
Rated Speed / Frequency: 1,500 rpm / 50 Hz (or 1,800 rpm / 60 Hz variant)
-
Sound Level: [spec to confirm]
-
Machine Weight (Dry / Wet): [spec to confirm]
-
Dimensions (L × W × H): [spec to confirm]
-
Enclosure & Features:
• Sound-attenuated steel canopy
• Lockable access panels
• Forklift pockets & lifting points
• Bunded base for fluid containment
• Control panel with protections and monitoring
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and tested before each dispatch
-
Supported 24/7 by Dayim’s service, logistics, and technical teams
-
Available under short-term, long-term, and project-based rental contracts
Applications
-
Construction, infrastructure, and site power supply
-
Backup and standby power for industrial and commercial facilities
-
Events, staging, and large-scale temporary installations
-
Remote or off-grid power applications
-
Parallel generator systems for scalable capacity
Description
The Atlas Copco QAS250 is a mobile, sound-attenuated diesel generator engineered for high reliability and flexibility. Ideal for construction sites, events, and industrial backup applications, it combines rugged performance, multi-voltage output, and efficient operation.
Key Specifications
-
Prime Power (PRP): 200 kW / 250 kVA
-
Standby Power (ESP): 220 kW / 275 kVA
-
Voltage / Phase: Multi-voltage, 3-phase (400 V, 480 V switchable)
-
Power Factor: 0.8 lag
-
Engine: John Deere 6068HFG06, turbocharged & intercooled
-
Rated Speed: 1,800 rpm
-
Fuel Tank Capacity: 1,457 L
-
Fuel Consumption (100 % Load): ~ 53.9 L/h
-
Single Step Load Acceptance: 300 %
-
Sound Level @ 7 m (75 % Load): ~ 73 dB(A)
-
Alternator: Leroy Somer LSA 46.2, AREP excitation, Class H insulation
-
Dimensions / Weight (Wet):
• Skid mount: approx. 4.02 m × 1.39 m × 2.02 m
• Weight: ~ 3,997 kg -
Enclosure & Features:
• Sound-attenuated, corrosion-resistant canopy
• 110 % fluid containment base
• Forklift pockets and lifting points
• Single-side service access
• Multi-voltage selector switch
Availability & Readiness
-
Units ready for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before deployment
-
Fully supported by 24/7 service, logistics, and technical backup
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Site power for infrastructure and construction works
-
Industrial and plant backup supply
-
Backup power for critical facilities
-
Event, staging, and concert power systems
-
Remote or off-grid installations
-
Parallel generator setups for scalable demand
Description
The Atlas Copco QAS250 is a mobile, sound-attenuated diesel generator engineered for high reliability and flexibility. Ideal for construction sites, events, and industrial backup applications, it combines rugged performance, multi-voltage output, and efficient operation.
Key Specifications
-
Prime Power (PRP): 200 kW / 250 kVA
-
Standby Power (ESP): 220 kW / 275 kVA
-
Voltage / Phase: Multi-voltage, 3-phase (400 V, 480 V switchable)
-
Power Factor: 0.8 lag
-
Engine: John Deere 6068HFG06, turbocharged & intercooled
-
Rated Speed: 1,800 rpm
-
Fuel Tank Capacity: 1,457 L
-
Fuel Consumption (100 % Load): ~ 53.9 L/h
-
Single Step Load Acceptance: 300 %
-
Sound Level @ 7 m (75 % Load): ~ 73 dB(A)
-
Alternator: Leroy Somer LSA 46.2, AREP excitation, Class H insulation
-
Dimensions / Weight (Wet):
• Skid mount: approx. 4.02 m × 1.39 m × 2.02 m
• Weight: ~ 3,997 kg -
Enclosure & Features:
• Sound-attenuated, corrosion-resistant canopy
• 110 % fluid containment base
• Forklift pockets and lifting points
• Single-side service access
• Multi-voltage selector switch
Availability & Readiness
-
Units ready for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before deployment
-
Fully supported by 24/7 service, logistics, and technical backup
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Site power for infrastructure and construction works
-
Industrial and plant backup supply
-
Backup power for critical facilities
-
Event, staging, and concert power systems
-
Remote or off-grid installations
-
Parallel generator setups for scalable demand
