Product Details
Description

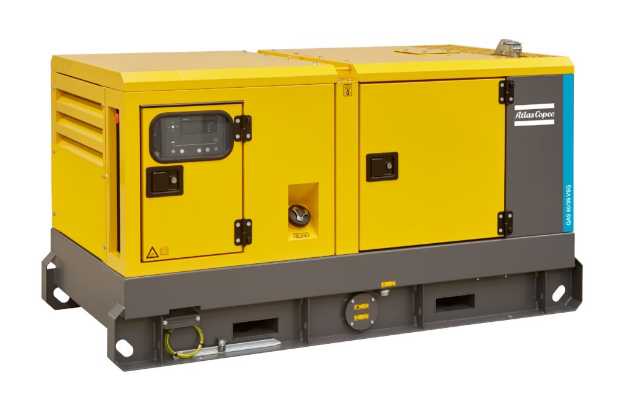

The Atlas Copco QAS35 is a versatile diesel generator built for rental, industrial, and event power applications. With variable speed control (in VSG variants), efficient fuel use, and a rugged enclosure, it’s ideal for jobsites requiring reliable, flexible power under variable load conditions.
Key Specifications
-
Prime Power (PRP): 35 kVA
-
Standby / Overload Power: ~ ? (depends on variant)
-
Variable Speed Range (VSG model): 800 to 2,550 rpm
-
Fuel Efficiency: Up to ~ 40 % fuel saving under light load
-
Enclosure / Frame: Sound-attenuated, corrosion-resistant canopy; 110% fluid containment
-
Service Interval: 500 hours
-
Mobility Features: Fork pockets, lifting points, skid mount
-
Dimensions & Weight: (typical compact 35 kVA unit)
• Length: ~ 2.2 m
• Width: ~ 1.0 m
• Height: ~ 1.3 m
• Weight: ~ 1,200 – 1,500 kg
Availability & Readiness
-
Units available for immediate rental throughout Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, certified, and tested before each hire
-
Supported by Dayim’s 24/7 technical, logistics, and field service teams
-
Available under short-term, long-term, and project-based rental agreements
Applications
-
Construction sites and infrastructure projects
-
Backup and emergency power for facilities
-
Temporary and event power (lighting, sound, booths)
-
Off-grid and remote installations
-
Power for tools, pumps, HVAC, and instrumentation
Description
The Atlas Copco QAS170 is a high-capacity mobile generator built for demanding rental, construction, and industrial projects. It offers robust performance, modular paralleling capability, efficient fuel management, and simplified serviceability — making it a reliable power solution for critical or continuous-duty applications.
Key Specifications
-
Prime Power (PRP): 170 kVA (136 kW)
-
Standby Power (ESP): 204 kVA (163 kW)
-
Voltage / Phase: 400 V, 3-phase (multi-voltage options available)
-
Power Factor: 0.8
-
Rated Speed: 1,500 rpm
-
Engine: Perkins 1106A-70TAG3 (turbocharged, aftercooled)
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption @ 100 % PRP Load: 38.7 L/h
-
Fuel Autonomy: ~ 9.3 hours (with standard tank)
-
Weight (Dry / Wet): 2,110 kg / 2,410 kg
-
Dimensions (L × W × H): 3.378 m × 1.180 m × 1.662 m
-
Operation Features:
• Single-step G2 load acceptance 70 %
• Paralleling capability via Power Management System
• 110 % fluid-containment base
• Large service access panels, forklift pockets, lifting points
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, tested, and certified before every dispatch
-
Comprehensive checks on engine, alternator, and controls
-
Supported by Dayim’s 24/7 technical, logistics, and field service teams
-
Offered under short-term, long-term, or project-based rental agreements
Applications
-
Construction and infrastructure site power
-
Industrial and process plant backup supply
-
Large event and staging systems
-
Remote or off-grid installations
-
Parallel power configurations for scalable loads
Description
The Atlas Copco QAS170 is a high-capacity mobile generator built for demanding rental, construction, and industrial projects. It offers robust performance, modular paralleling capability, efficient fuel management, and simplified serviceability — making it a reliable power solution for critical or continuous-duty applications.
Key Specifications
-
Prime Power (PRP): 170 kVA (136 kW)
-
Standby Power (ESP): 204 kVA (163 kW)
-
Voltage / Phase: 400 V, 3-phase (multi-voltage options available)
-
Power Factor: 0.8
-
Rated Speed: 1,500 rpm
-
Engine: Perkins 1106A-70TAG3 (turbocharged, aftercooled)
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption @ 100 % PRP Load: 38.7 L/h
-
Fuel Autonomy: ~ 9.3 hours (with standard tank)
-
Weight (Dry / Wet): 2,110 kg / 2,410 kg
-
Dimensions (L × W × H): 3.378 m × 1.180 m × 1.662 m
-
Operation Features:
• Single-step G2 load acceptance 70 %
• Paralleling capability via Power Management System
• 110 % fluid-containment base
• Large service access panels, forklift pockets, lifting points
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, tested, and certified before every dispatch
-
Comprehensive checks on engine, alternator, and controls
-
Supported by Dayim’s 24/7 technical, logistics, and field service teams
-
Offered under short-term, long-term, or project-based rental agreements
Applications
-
Construction and infrastructure site power
-
Industrial and process plant backup supply
-
Large event and staging systems
-
Remote or off-grid installations
-
Parallel power configurations for scalable loads
Description
The Atlas Copco QAS550 is a high-capacity mobile generator engineered for heavy-duty applications. Designed for rental, industrial, and large-scale power demands, it features a robust, sound-attenuated enclosure, modular paralleling capabilities, and a compact footprint optimized for transport and serviceability.
Key Specifications
-
Prime Power (PRP): 550 kVA (440 kW)
-
Standby Power (ESP): ~ 645 kVA (516 kW)
-
Voltage / Phase: Multi-voltage, 3-phase (e.g. 400 V / 480 V options)
-
Power Factor: 0.8
-
Fuel Tank Capacity: 820 L
-
Footprint / Compact Design: Part of Atlas Copco’s reduced footprint QAS range
-
Enclosure / Features:
• Sound-attenuated steel canopy
• Integrated lifting and transport points
• 110 % fluid containment frame
• Full side-access for maintenance
Availability & Readiness
-
Units available immediately for rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to dispatch
-
Backed by Dayim’s 24/7 logistics, servicing, and technical support
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Large construction and infrastructure power supply
-
Industrial process and facility backup systems
-
Stadiums, concerts, and large event power demand
-
Remote, off-grid, or utility installations requiring high-capacity power
-
Parallel generator configurations for scalable load distribution
Description
The Atlas Copco QAS550 is a high-capacity mobile generator engineered for heavy-duty applications. Designed for rental, industrial, and large-scale power demands, it features a robust, sound-attenuated enclosure, modular paralleling capabilities, and a compact footprint optimized for transport and serviceability.
Key Specifications
-
Prime Power (PRP): 550 kVA (440 kW)
-
Standby Power (ESP): ~ 645 kVA (516 kW)
-
Voltage / Phase: Multi-voltage, 3-phase (e.g. 400 V / 480 V options)
-
Power Factor: 0.8
-
Fuel Tank Capacity: 820 L
-
Footprint / Compact Design: Part of Atlas Copco’s reduced footprint QAS range
-
Enclosure / Features:
• Sound-attenuated steel canopy
• Integrated lifting and transport points
• 110 % fluid containment frame
• Full side-access for maintenance
Availability & Readiness
-
Units available immediately for rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to dispatch
-
Backed by Dayim’s 24/7 logistics, servicing, and technical support
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Large construction and infrastructure power supply
-
Industrial process and facility backup systems
-
Stadiums, concerts, and large event power demand
-
Remote, off-grid, or utility installations requiring high-capacity power
-
Parallel generator configurations for scalable load distribution
Description
The Atlas Copco QES 250 is a robust diesel-powered generator engineered for high-demand rental, industrial, and construction installations. Built with a rugged, sound-attenuated canopy, it is designed for durability, ease of service, and reliable power performance under continuous operation.
Key Specifications
-
Prime Power (PRP): 250 kVA (200 kW)
-
Standby Power (ESP): ~ 272 kVA (218 kW)
-
Voltage / Phase: 400/230 V, 3-phase
-
Frequency: 50 Hz
-
Rated Current (PRP): 360 A (3-phase)
-
Fuel Tank Capacity: 405 L
-
Fuel Consumption (100 % Load): ~ 52 L/h
-
Sound Pressure Level @ 7 m: ~ 70 dB(A)
-
Machine Weight (wet): ~ 3,207 kg
-
Dimensions (L × W × H): 3.675 m × 1.470 m × 2.065 m
-
Engine: Diesel, turbocharged (Cummins / equivalent)
-
Alternator: Mecc Alte / Atlas Copco spec
-
Control / Protection: Qc1112 controller standard, with AMF upgrade option
-
Enclosure & Features:
• Sound-attenuated, corrosion-resistant steel canopy
• 110 % fluid containment base
• Forklift slots and lifting points
• Full-size access panels for maintenance
• Optical / plug-and-play cable routing
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance schedule
-
Inspected, tested, and certified before dispatch
-
Supported by 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Large construction and infrastructure site power supply
-
Backup or primary power for industrial plants
-
Events, concerts, and large-scale installations
-
Remote, off-grid, or temporary power installations
-
Parallel generator deployment for scalable load capacity
Description
The Atlas Copco QES 250 is a robust diesel-powered generator engineered for high-demand rental, industrial, and construction installations. Built with a rugged, sound-attenuated canopy, it is designed for durability, ease of service, and reliable power performance under continuous operation.
Key Specifications
-
Prime Power (PRP): 250 kVA (200 kW)
-
Standby Power (ESP): ~ 272 kVA (218 kW)
-
Voltage / Phase: 400/230 V, 3-phase
-
Frequency: 50 Hz
-
Rated Current (PRP): 360 A (3-phase)
-
Fuel Tank Capacity: 405 L
-
Fuel Consumption (100 % Load): ~ 52 L/h
-
Sound Pressure Level @ 7 m: ~ 70 dB(A)
-
Machine Weight (wet): ~ 3,207 kg
-
Dimensions (L × W × H): 3.675 m × 1.470 m × 2.065 m
-
Engine: Diesel, turbocharged (Cummins / equivalent)
-
Alternator: Mecc Alte / Atlas Copco spec
-
Control / Protection: Qc1112 controller standard, with AMF upgrade option
-
Enclosure & Features:
• Sound-attenuated, corrosion-resistant steel canopy
• 110 % fluid containment base
• Forklift slots and lifting points
• Full-size access panels for maintenance
• Optical / plug-and-play cable routing
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance schedule
-
Inspected, tested, and certified before dispatch
-
Supported by 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Large construction and infrastructure site power supply
-
Backup or primary power for industrial plants
-
Events, concerts, and large-scale installations
-
Remote, off-grid, or temporary power installations
-
Parallel generator deployment for scalable load capacity
Description
The Atlas Copco QES 400 is a heavy-duty diesel generator designed for robust performance in industrial, rental, and backup power applications. It features a sound-insulated, weather-resistant enclosure and is engineered to deliver reliable prime power under variable load conditions, while offering ease of service and transport.
Key Specifications
-
Prime Power (PRP): 400 kVA (≈ 320 kW)
-
Standby / Emergency Power (ESP): ~ 414 kVA (≈ 331 kW)
-
Voltage / Phase: 400/230 V, 3-phase
-
Rated Frequency: 50 Hz
-
Power Factor: 0.8
-
Rated Current (at PRP): 579 A
-
Engine / Alternator: Diesel, turbocharged, water-cooled (model varies)
-
Fuel Tank Capacity: ~ 850 L (typical for QES canopy units of this class)
-
Fuel Consumption (100 % Load): ~ 76 L/h (approximate estimate)
-
Sound Level (at 7 m): ~ 71 dB(A)
-
Machine Weight (Gross): ~ 5,960 kg
-
Dimensions (L × W × H): ~ 3,845 mm × 1,450 mm × 1,940 mm
-
Enclosure & Features:
• Sound-attenuated and anti-corrosion steel canopy
• 110 % fluid-containment base frame
• Large access panels for easy maintenance
• Forklift slots and lifting points
• Control panel in plug-and-play layout
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, tested, and certified prior to dispatch
-
Backed by Dayim’s 24/7 technical, service, and logistics network
-
Available under short-term, long-term, or project-based rental contracts
Applications
-
Power supply for large construction and infrastructure projects
-
Emergency and backup power for factories and facilities
-
Event, stadium, and temporary installations
-
Remote or off-grid operations requiring high-capacity power
-
Parallel generator systems for scalable power demands
Description
The Atlas Copco QES 400 is a heavy-duty diesel generator designed for robust performance in industrial, rental, and backup power applications. It features a sound-insulated, weather-resistant enclosure and is engineered to deliver reliable prime power under variable load conditions, while offering ease of service and transport.
Key Specifications
-
Prime Power (PRP): 400 kVA (≈ 320 kW)
-
Standby / Emergency Power (ESP): ~ 414 kVA (≈ 331 kW)
-
Voltage / Phase: 400/230 V, 3-phase
-
Rated Frequency: 50 Hz
-
Power Factor: 0.8
-
Rated Current (at PRP): 579 A
-
Engine / Alternator: Diesel, turbocharged, water-cooled (model varies)
-
Fuel Tank Capacity: ~ 850 L (typical for QES canopy units of this class)
-
Fuel Consumption (100 % Load): ~ 76 L/h (approximate estimate)
-
Sound Level (at 7 m): ~ 71 dB(A)
-
Machine Weight (Gross): ~ 5,960 kg
-
Dimensions (L × W × H): ~ 3,845 mm × 1,450 mm × 1,940 mm
-
Enclosure & Features:
• Sound-attenuated and anti-corrosion steel canopy
• 110 % fluid-containment base frame
• Large access panels for easy maintenance
• Forklift slots and lifting points
• Control panel in plug-and-play layout
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, tested, and certified prior to dispatch
-
Backed by Dayim’s 24/7 technical, service, and logistics network
-
Available under short-term, long-term, or project-based rental contracts
Applications
-
Power supply for large construction and infrastructure projects
-
Emergency and backup power for factories and facilities
-
Event, stadium, and temporary installations
-
Remote or off-grid operations requiring high-capacity power
-
Parallel generator systems for scalable power demands
Description
The Atlas Copco QAS325 is a high-performance diesel generator built for heavy-duty industrial, rental, and construction power applications. It delivers reliable continuous power with strong voltage stability, efficient fuel performance, and a robust, sound-attenuated enclosure designed for easy service access and mobility.
Key Specifications
-
Prime Power (PRP): 325 kVA (260 kW)
-
Standby Power (ESP): 355 kVA (284 kW)
-
Voltage / Phase: 400 V, 3-phase
-
Power Factor: 0.8
-
Engine: Volvo TAD1351GE, 6-cylinder, turbocharged and water-cooled
-
Speed / Frequency: 1,500 rpm / 50 Hz
-
Fuel Tank Capacity: 530 L
-
Fuel Consumption (100 % Load): ~ 67 L/h
-
Machine Weight (Wet): ~ 4,735 kg
-
Dimensions (L × W × H): 4.02 m × 1.39 m × 2.02 m
-
Sound Level (at 7 m): ~ 71 dB(A)
-
Enclosure & Features:
• Sound-attenuated, corrosion-resistant canopy
• Forklift pockets and lifting points
• 110 % fluid containment base
• Modular paralleling capability
• Large service access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before each hire
-
Fully supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure site power
-
Industrial plant and process facility backup
-
Events, staging, and outdoor installations
-
Remote or off-grid operations
-
Parallel generator configurations for scalable loads
Description
The Atlas Copco QAS325 is a high-performance diesel generator built for heavy-duty industrial, rental, and construction power applications. It delivers reliable continuous power with strong voltage stability, efficient fuel performance, and a robust, sound-attenuated enclosure designed for easy service access and mobility.
Key Specifications
-
Prime Power (PRP): 325 kVA (260 kW)
-
Standby Power (ESP): 355 kVA (284 kW)
-
Voltage / Phase: 400 V, 3-phase
-
Power Factor: 0.8
-
Engine: Volvo TAD1351GE, 6-cylinder, turbocharged and water-cooled
-
Speed / Frequency: 1,500 rpm / 50 Hz
-
Fuel Tank Capacity: 530 L
-
Fuel Consumption (100 % Load): ~ 67 L/h
-
Machine Weight (Wet): ~ 4,735 kg
-
Dimensions (L × W × H): 4.02 m × 1.39 m × 2.02 m
-
Sound Level (at 7 m): ~ 71 dB(A)
-
Enclosure & Features:
• Sound-attenuated, corrosion-resistant canopy
• Forklift pockets and lifting points
• 110 % fluid containment base
• Modular paralleling capability
• Large service access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before each hire
-
Fully supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure site power
-
Industrial plant and process facility backup
-
Events, staging, and outdoor installations
-
Remote or off-grid operations
-
Parallel generator configurations for scalable loads
Description
The Atlas Copco QAS360 is a heavy-duty mobile diesel generator engineered for high-demand industrial, construction, and rental applications. Built with rugged components and designed for modular paralleling, it offers reliable power delivery, compact transportability, and service-friendly access.
Key Specifications
-
Prime Power (PRP): 329.3 kVA (263.4 kW) Atlas Copco
-
Standby Power: 380 kVA (≈ 304 kW) Atlas Copco
-
Voltage / Phase: 400 V, 3-phase
-
Engine: Scania DC09 072A, 5 cylinders, water-cooled, electronic governor Atlas Copco
-
Rated Speed / RPM: 1,800 rpm Atlas Copco
-
Fuel Tank Capacity: 650 L (standard variant) Atlas Copco
-
Fuel Autonomy: ~ 9.4 hours at full load Atlas Copco
-
Sound Level @ 7 m: ~ 75 dB(A) Atlas Copco
-
Dimensions (L × W × H): 4.00 m × 1.18 m × 2.13 m Atlas Copco
-
Weight (Dry / Wet): 3,364 kg / 3,997 kg Atlas Copco
-
Alternator Protection / Insulation Class: IP23 / Class H Atlas Copco
-
Enclosure Features:
• Sound-attenuated galvanized steel canopy
• 110 % fluid-containment frame
• Forklift pockets and lifting points
• Service access panels, external drains, fuel filters
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before deployment
-
Supported 24/7 by Dayim’s technical, logistics, and service teams
-
Offered for short-term, long-term, or project-based contracts
Applications
-
Large-scale construction and infrastructure sites
-
Industrial plant backup or prime power
-
Events, concerts, and temporary installations
-
Parallel setups for scalable load support
-
Remote or off-grid installations
Description
The Atlas Copco QAS360 is a heavy-duty mobile diesel generator engineered for high-demand industrial, construction, and rental applications. Built with rugged components and designed for modular paralleling, it offers reliable power delivery, compact transportability, and service-friendly access.
Key Specifications
-
Prime Power (PRP): 329.3 kVA (263.4 kW) Atlas Copco
-
Standby Power: 380 kVA (≈ 304 kW) Atlas Copco
-
Voltage / Phase: 400 V, 3-phase
-
Engine: Scania DC09 072A, 5 cylinders, water-cooled, electronic governor Atlas Copco
-
Rated Speed / RPM: 1,800 rpm Atlas Copco
-
Fuel Tank Capacity: 650 L (standard variant) Atlas Copco
-
Fuel Autonomy: ~ 9.4 hours at full load Atlas Copco
-
Sound Level @ 7 m: ~ 75 dB(A) Atlas Copco
-
Dimensions (L × W × H): 4.00 m × 1.18 m × 2.13 m Atlas Copco
-
Weight (Dry / Wet): 3,364 kg / 3,997 kg Atlas Copco
-
Alternator Protection / Insulation Class: IP23 / Class H Atlas Copco
-
Enclosure Features:
• Sound-attenuated galvanized steel canopy
• 110 % fluid-containment frame
• Forklift pockets and lifting points
• Service access panels, external drains, fuel filters
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before deployment
-
Supported 24/7 by Dayim’s technical, logistics, and service teams
-
Offered for short-term, long-term, or project-based contracts
Applications
-
Large-scale construction and infrastructure sites
-
Industrial plant backup or prime power
-
Events, concerts, and temporary installations
-
Parallel setups for scalable load support
-
Remote or off-grid installations
