Product Details
Description

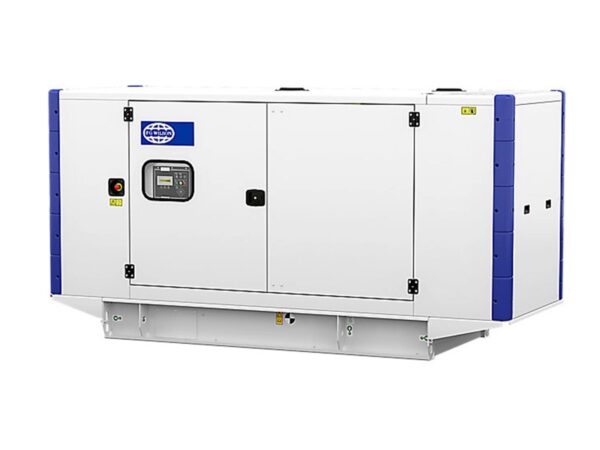

The FG Wilson P18-6 is a compact but capable diesel generator suited for construction, rental, backup power, and remote site operations. Its design emphasizes reliability, flexibility in output ratings, ease of service access, and compliance with emissions regulations — making it a solid choice for a broad range of power supply applications.
Key Specifications
-
Prime Power: 16.5 kVA (13.2 kW)
-
Standby Power: 18 kVA (14.4 kW)
-
Alternate Ratings (60 Hz): 20 kVA prime / 22 kVA standby
-
Voltage Range: 220–415 V (3-phase)
-
Engine: Perkins 404D-22G1, 4-cylinder diesel
-
Fuel Tank (Open Set): 55 L
-
Fuel Consumption @ 100% Prime Load: ~ 4.4 L/h
-
Machine Weight (Dry, open set): ~ 416 kg
-
Enclosure / Optional Canopy Configurations: Available, altering dimensions and weight
-
Stowed Dimensions (Open Set): ~ 1.50 m × 0.62 m × 1.11 m
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance protocols
-
Inspected, tested, and certified before each hire
-
Supported by Dayim’s 24/7 technical and logistics network
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Construction site power supply
-
Backup or auxiliary power for facilities
-
Temporary power for events, lighting, and tools
-
Remote and off-grid operations
-
Industrial and infrastructure support tasks
Description
The Atlas Copco QAS150 is a powerful, mobile diesel generator engineered for demanding rental, industrial, and infrastructure power applications. It features a sound-attenuated canopy, multi-voltage capability, and a built-in control system for reliable operation across a wide range of sites.
Key Specifications
-
Prime Power: 150 kVA / 120 kW
-
Standby Power: 165 kVA / 132 kW
-
Voltage / Phase: Multi-voltage, 3-phase (e.g. 400 V, 480 V, 240 V options)
-
Power Factor: 0.8
-
Engine: John Deere 6068HFG05, 6-cylinder, turbocharged with intercooler
-
Rated Speed: 1,800 rpm
-
Fuel Tank Capacity: 829 L
-
Fuel Consumption (Approx @ 100 % Load): 31.0 L/h
-
Sound Level @ 7 m (75 % Load): 68 dB(A)
-
Machine Weight (Wet / Ready to Operate): 3,395 kg
-
Enclosure & Mobility Features:
• Sound-attenuated, corrosion-resistant steel canopy
• 110 % fluid-containment base
• Fork pockets and lifting points
• Trailer- or skid-mounted options
• Single-side service access -
Control System: Qc1002 digital controller
-
Alternator: Leroy Somer LSA 44.3 (4-pole, 12-wire)
-
Overload Capability: 300 % rated motor-starting capacity
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all operational and safety standards
-
Each unit undergoes functionality checks prior to dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service network
-
Offered for short-term, long-term, and project-based contracts
Applications
-
Construction site power supply
-
Standby and backup power for facilities
-
Event staging, lighting, and audio power
-
Remote sites, off-grid installations
-
Industrial, mining, and infrastructure projects
-
Parallel operation setups for scalable power
Description
The Atlas Copco QAS150 is a powerful, mobile diesel generator engineered for demanding rental, industrial, and infrastructure power applications. It features a sound-attenuated canopy, multi-voltage capability, and a built-in control system for reliable operation across a wide range of sites.
Key Specifications
-
Prime Power: 150 kVA / 120 kW
-
Standby Power: 165 kVA / 132 kW
-
Voltage / Phase: Multi-voltage, 3-phase (e.g. 400 V, 480 V, 240 V options)
-
Power Factor: 0.8
-
Engine: John Deere 6068HFG05, 6-cylinder, turbocharged with intercooler
-
Rated Speed: 1,800 rpm
-
Fuel Tank Capacity: 829 L
-
Fuel Consumption (Approx @ 100 % Load): 31.0 L/h
-
Sound Level @ 7 m (75 % Load): 68 dB(A)
-
Machine Weight (Wet / Ready to Operate): 3,395 kg
-
Enclosure & Mobility Features:
• Sound-attenuated, corrosion-resistant steel canopy
• 110 % fluid-containment base
• Fork pockets and lifting points
• Trailer- or skid-mounted options
• Single-side service access -
Control System: Qc1002 digital controller
-
Alternator: Leroy Somer LSA 44.3 (4-pole, 12-wire)
-
Overload Capability: 300 % rated motor-starting capacity
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Fully serviced and maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with all operational and safety standards
-
Each unit undergoes functionality checks prior to dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service network
-
Offered for short-term, long-term, and project-based contracts
Applications
-
Construction site power supply
-
Standby and backup power for facilities
-
Event staging, lighting, and audio power
-
Remote sites, off-grid installations
-
Industrial, mining, and infrastructure projects
-
Parallel operation setups for scalable power
Description
The Atlas Copco QAS170 is a high-capacity mobile generator built for demanding rental, construction, and industrial projects. It offers robust performance, modular paralleling capability, efficient fuel management, and simplified serviceability — making it a reliable power solution for critical or continuous-duty applications.
Key Specifications
-
Prime Power (PRP): 170 kVA (136 kW)
-
Standby Power (ESP): 204 kVA (163 kW)
-
Voltage / Phase: 400 V, 3-phase (multi-voltage options available)
-
Power Factor: 0.8
-
Rated Speed: 1,500 rpm
-
Engine: Perkins 1106A-70TAG3 (turbocharged, aftercooled)
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption @ 100 % PRP Load: 38.7 L/h
-
Fuel Autonomy: ~ 9.3 hours (with standard tank)
-
Weight (Dry / Wet): 2,110 kg / 2,410 kg
-
Dimensions (L × W × H): 3.378 m × 1.180 m × 1.662 m
-
Operation Features:
• Single-step G2 load acceptance 70 %
• Paralleling capability via Power Management System
• 110 % fluid-containment base
• Large service access panels, forklift pockets, lifting points
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, tested, and certified before every dispatch
-
Comprehensive checks on engine, alternator, and controls
-
Supported by Dayim’s 24/7 technical, logistics, and field service teams
-
Offered under short-term, long-term, or project-based rental agreements
Applications
-
Construction and infrastructure site power
-
Industrial and process plant backup supply
-
Large event and staging systems
-
Remote or off-grid installations
-
Parallel power configurations for scalable loads
Description
The Atlas Copco QAS170 is a high-capacity mobile generator built for demanding rental, construction, and industrial projects. It offers robust performance, modular paralleling capability, efficient fuel management, and simplified serviceability — making it a reliable power solution for critical or continuous-duty applications.
Key Specifications
-
Prime Power (PRP): 170 kVA (136 kW)
-
Standby Power (ESP): 204 kVA (163 kW)
-
Voltage / Phase: 400 V, 3-phase (multi-voltage options available)
-
Power Factor: 0.8
-
Rated Speed: 1,500 rpm
-
Engine: Perkins 1106A-70TAG3 (turbocharged, aftercooled)
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption @ 100 % PRP Load: 38.7 L/h
-
Fuel Autonomy: ~ 9.3 hours (with standard tank)
-
Weight (Dry / Wet): 2,110 kg / 2,410 kg
-
Dimensions (L × W × H): 3.378 m × 1.180 m × 1.662 m
-
Operation Features:
• Single-step G2 load acceptance 70 %
• Paralleling capability via Power Management System
• 110 % fluid-containment base
• Large service access panels, forklift pockets, lifting points
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, tested, and certified before every dispatch
-
Comprehensive checks on engine, alternator, and controls
-
Supported by Dayim’s 24/7 technical, logistics, and field service teams
-
Offered under short-term, long-term, or project-based rental agreements
Applications
-
Construction and infrastructure site power
-
Industrial and process plant backup supply
-
Large event and staging systems
-
Remote or off-grid installations
-
Parallel power configurations for scalable loads
Description
The Atlas Copco QAS180 is a heavy-duty diesel generator built for demanding industrial, rental, and standby power applications. With its rugged construction and robust performance, it reliably delivers stable output under harsh conditions and heavy loads.
Key Specifications
-
Prime Power: 150 kVA
-
Rated Voltage: 380 V (nominal)
-
Machine Weight (Dry): 2,700 kg
-
Cooling Type: Water-cooled
-
Engine: Komatsu SA6D108 (approx. 136 kW)
-
Dimensions & Transport: Skid-mount configuration
-
Additional Features: Designed for long service intervals, durable enclosure, heavy frame for transport
Availability & Readiness
-
Units ready for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, tested, and certified before dispatch
-
Backed by Dayim’s 24/7 technical, logistics, and service support
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure power supply
-
Industrial plant and facility backup power
-
Event staging, temporary power installations
-
Remote or off-grid sites requiring high-capacity power
-
Parallel installations for scalable power demands
Description
The Atlas Copco QAS180 is a heavy-duty diesel generator built for demanding industrial, rental, and standby power applications. With its rugged construction and robust performance, it reliably delivers stable output under harsh conditions and heavy loads.
Key Specifications
-
Prime Power: 150 kVA
-
Rated Voltage: 380 V (nominal)
-
Machine Weight (Dry): 2,700 kg
-
Cooling Type: Water-cooled
-
Engine: Komatsu SA6D108 (approx. 136 kW)
-
Dimensions & Transport: Skid-mount configuration
-
Additional Features: Designed for long service intervals, durable enclosure, heavy frame for transport
Availability & Readiness
-
Units ready for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regime
-
Inspected, tested, and certified before dispatch
-
Backed by Dayim’s 24/7 technical, logistics, and service support
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure power supply
-
Industrial plant and facility backup power
-
Event staging, temporary power installations
-
Remote or off-grid sites requiring high-capacity power
-
Parallel installations for scalable power demands
Description
The Atlas Copco QAS210 is a high-performance diesel generator built for demanding applications and heavy-duty endurance. Engineered for rental fleets and industrial sites, it offers modular paralleling, robust build quality, and advanced fuel management to ensure consistent, reliable power in challenging environments.
Key Specifications
-
Prime Power (PRP): 210 kVA (168 kW)
-
Standby Power (ESP): ~ 230 kVA
-
Rated Voltage / Phase: Multi-voltage, 3-phase (e.g. 400 V and other selectable options)
-
Rated Speed: 1,800 rpm
-
Power Factor: 0.8 lagging
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption @ 100 % Load: ~ 45.7 L/h
-
Fuel Autonomy: ~ 7.8 hours (with standard tank)
-
Machine Weight (Net): ~ 2,210 kg
-
Machine Weight (Wet): ~ 2,510 kg
-
Dimensions (L × W × H): 3.38 m × 1.18 m × 1.66 m
-
Single-Step Load Acceptance (G2, ISO 8528): 70 %
-
Sound Level: ~ 75.7 dB(A) at 7 m
-
Overload Capability: 110 % rated load for limited periods
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with operational & safety standards
-
Fully tested and verified before each hire
-
Supported by Dayim’s 24/7 logistics, service, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Site power for large construction, infrastructure, and industrial projects
-
Emergency or backup power for facilities and critical systems
-
Events, concerts, and temporary installation power
-
Remote or off-grid power needs
-
Parallel operation for scalable power configurations
Description
The Atlas Copco QAS210 is a high-performance diesel generator built for demanding applications and heavy-duty endurance. Engineered for rental fleets and industrial sites, it offers modular paralleling, robust build quality, and advanced fuel management to ensure consistent, reliable power in challenging environments.
Key Specifications
-
Prime Power (PRP): 210 kVA (168 kW)
-
Standby Power (ESP): ~ 230 kVA
-
Rated Voltage / Phase: Multi-voltage, 3-phase (e.g. 400 V and other selectable options)
-
Rated Speed: 1,800 rpm
-
Power Factor: 0.8 lagging
-
Fuel Tank Capacity: 360 L
-
Fuel Consumption @ 100 % Load: ~ 45.7 L/h
-
Fuel Autonomy: ~ 7.8 hours (with standard tank)
-
Machine Weight (Net): ~ 2,210 kg
-
Machine Weight (Wet): ~ 2,510 kg
-
Dimensions (L × W × H): 3.38 m × 1.18 m × 1.66 m
-
Single-Step Load Acceptance (G2, ISO 8528): 70 %
-
Sound Level: ~ 75.7 dB(A) at 7 m
-
Overload Capability: 110 % rated load for limited periods
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, certified, and compliant with operational & safety standards
-
Fully tested and verified before each hire
-
Supported by Dayim’s 24/7 logistics, service, and technical teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Site power for large construction, infrastructure, and industrial projects
-
Emergency or backup power for facilities and critical systems
-
Events, concerts, and temporary installation power
-
Remote or off-grid power needs
-
Parallel operation for scalable power configurations
Description
The Atlas Copco QAS200 is a powerful and reliable diesel generator designed for continuous performance in rental, industrial, and infrastructure applications. With its multi-voltage flexibility, rugged canopy, and advanced fuel management system, it ensures consistent, safe, and efficient power delivery even in the most demanding environments.
Key Specifications
-
Prime Power (PRP): 200 kVA (160 kW)
-
Standby Power (ESP): 220 kVA (176 kW)
-
Voltage / Phase Options: Multi-voltage, 3-phase (400 V, 480 V, 240 V, 208 V selectable)
-
Power Factor: 0.8
-
Engine: John Deere 6068HFG05, turbocharged and aftercooled
-
Speed / Frequency: 1,800 rpm / 60 Hz (50 Hz variant available)
-
Fuel Tank Capacity: 1,268 L
-
Fuel Consumption (100 % Load): ~ 41 L/h
-
Sound Level (75 % Load, 7 m): ~ 70 dB(A)
-
Alternator: Leroy Somer LSA 44.3 VL 13, 4-pole, 12-wire
-
Cooling: Water-cooled system
-
Dimensions (L × W × H): ~ 3.38 m × 1.18 m × 1.66 m
-
Machine Weight (Wet): ~ 3,120 kg
-
Enclosure & Features:
• Sound-attenuated, corrosion-resistant steel canopy
• 110 % fluid-containment base
• Forklift pockets and lifting points
• Easy single-side service access
• Optional trailer mount and parallel connection capability
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to dispatch
-
Fully supported by Dayim’s 24/7 logistics, service, and technical teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Construction and infrastructure site power
-
Industrial and plant backup supply
-
Events, stadiums, and outdoor installations
-
Remote or off-grid power generation
-
Parallel power configurations for scalable demand
Description
The Atlas Copco QAS200 is a powerful and reliable diesel generator designed for continuous performance in rental, industrial, and infrastructure applications. With its multi-voltage flexibility, rugged canopy, and advanced fuel management system, it ensures consistent, safe, and efficient power delivery even in the most demanding environments.
Key Specifications
-
Prime Power (PRP): 200 kVA (160 kW)
-
Standby Power (ESP): 220 kVA (176 kW)
-
Voltage / Phase Options: Multi-voltage, 3-phase (400 V, 480 V, 240 V, 208 V selectable)
-
Power Factor: 0.8
-
Engine: John Deere 6068HFG05, turbocharged and aftercooled
-
Speed / Frequency: 1,800 rpm / 60 Hz (50 Hz variant available)
-
Fuel Tank Capacity: 1,268 L
-
Fuel Consumption (100 % Load): ~ 41 L/h
-
Sound Level (75 % Load, 7 m): ~ 70 dB(A)
-
Alternator: Leroy Somer LSA 44.3 VL 13, 4-pole, 12-wire
-
Cooling: Water-cooled system
-
Dimensions (L × W × H): ~ 3.38 m × 1.18 m × 1.66 m
-
Machine Weight (Wet): ~ 3,120 kg
-
Enclosure & Features:
• Sound-attenuated, corrosion-resistant steel canopy
• 110 % fluid-containment base
• Forklift pockets and lifting points
• Easy single-side service access
• Optional trailer mount and parallel connection capability
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to dispatch
-
Fully supported by Dayim’s 24/7 logistics, service, and technical teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Construction and infrastructure site power
-
Industrial and plant backup supply
-
Events, stadiums, and outdoor installations
-
Remote or off-grid power generation
-
Parallel power configurations for scalable demand
Description
The Atlas Copco QAS360 is a heavy-duty mobile diesel generator engineered for high-demand industrial, construction, and rental applications. Built with rugged components and designed for modular paralleling, it offers reliable power delivery, compact transportability, and service-friendly access.
Key Specifications
-
Prime Power (PRP): 329.3 kVA (263.4 kW) Atlas Copco
-
Standby Power: 380 kVA (≈ 304 kW) Atlas Copco
-
Voltage / Phase: 400 V, 3-phase
-
Engine: Scania DC09 072A, 5 cylinders, water-cooled, electronic governor Atlas Copco
-
Rated Speed / RPM: 1,800 rpm Atlas Copco
-
Fuel Tank Capacity: 650 L (standard variant) Atlas Copco
-
Fuel Autonomy: ~ 9.4 hours at full load Atlas Copco
-
Sound Level @ 7 m: ~ 75 dB(A) Atlas Copco
-
Dimensions (L × W × H): 4.00 m × 1.18 m × 2.13 m Atlas Copco
-
Weight (Dry / Wet): 3,364 kg / 3,997 kg Atlas Copco
-
Alternator Protection / Insulation Class: IP23 / Class H Atlas Copco
-
Enclosure Features:
• Sound-attenuated galvanized steel canopy
• 110 % fluid-containment frame
• Forklift pockets and lifting points
• Service access panels, external drains, fuel filters
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before deployment
-
Supported 24/7 by Dayim’s technical, logistics, and service teams
-
Offered for short-term, long-term, or project-based contracts
Applications
-
Large-scale construction and infrastructure sites
-
Industrial plant backup or prime power
-
Events, concerts, and temporary installations
-
Parallel setups for scalable load support
-
Remote or off-grid installations
Description
The Atlas Copco QAS360 is a heavy-duty mobile diesel generator engineered for high-demand industrial, construction, and rental applications. Built with rugged components and designed for modular paralleling, it offers reliable power delivery, compact transportability, and service-friendly access.
Key Specifications
-
Prime Power (PRP): 329.3 kVA (263.4 kW) Atlas Copco
-
Standby Power: 380 kVA (≈ 304 kW) Atlas Copco
-
Voltage / Phase: 400 V, 3-phase
-
Engine: Scania DC09 072A, 5 cylinders, water-cooled, electronic governor Atlas Copco
-
Rated Speed / RPM: 1,800 rpm Atlas Copco
-
Fuel Tank Capacity: 650 L (standard variant) Atlas Copco
-
Fuel Autonomy: ~ 9.4 hours at full load Atlas Copco
-
Sound Level @ 7 m: ~ 75 dB(A) Atlas Copco
-
Dimensions (L × W × H): 4.00 m × 1.18 m × 2.13 m Atlas Copco
-
Weight (Dry / Wet): 3,364 kg / 3,997 kg Atlas Copco
-
Alternator Protection / Insulation Class: IP23 / Class H Atlas Copco
-
Enclosure Features:
• Sound-attenuated galvanized steel canopy
• 110 % fluid-containment frame
• Forklift pockets and lifting points
• Service access panels, external drains, fuel filters
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before deployment
-
Supported 24/7 by Dayim’s technical, logistics, and service teams
-
Offered for short-term, long-term, or project-based contracts
Applications
-
Large-scale construction and infrastructure sites
-
Industrial plant backup or prime power
-
Events, concerts, and temporary installations
-
Parallel setups for scalable load support
-
Remote or off-grid installations
