Product Details
Description

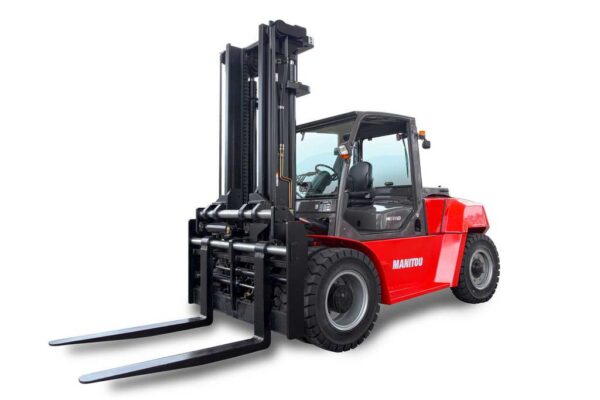

The Manitou MI-X 100 D is a heavy-duty diesel forklift designed for high-capacity material handling in demanding industrial, warehouse, and logistical settings. Engineered for strength and stability, it offers smooth performance, excellent ergonomics, and a durable construction that ensures long service life.
Key Specifications
-
Rated Capacity: 10,000 kg (≈ 22,000 lb)
-
Load Center: 600 mm
-
Engine: Cummins QSB4.5, 4-cylinder diesel
-
Engine Power: 82 kW (≈ 112 hp)
-
Travel Speed (Loaded / Unloaded): 26 / 31 km/h
-
Lifting Speed (Loaded / Unloaded): 0.32 / 0.35 m/s
-
Lowering Speed (Loaded / Unloaded): 0.45 / 0.36 m/s
-
Maximum Gradeability: 44 % (loaded)
-
Operating Weight (Unladen): 13,590 kg
-
Overall Width: 2,160 mm
-
Height of Overhead Guard: 2,580 mm
-
Turning Radius (Outside): 3,940 mm
-
Wheelbase: 2,800 mm
-
Mast Tilt (Forward / Backward): 6° / 12°
-
Ground Clearance Below Mast: 190 mm
-
Hydraulic System:
• Pressure: 195 bar
• Flow for attachments: 180 L/min
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance regimen
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered under short-term, long-term, and project-based rental contracts
Applications
-
Heavy-duty warehouse and yard operations
-
Port and container terminal handling
-
Steel, timber, and structural material logistics
-
Infrastructure and industrial site operations
-
High-volume load stacking and transport
Description
The Manitou MRT 2550 is a high-capacity rotating telehandler that combines the functionality of a telehandler, crane, and work platform in one machine. With four-section boom and full 360° turret rotation, it delivers exceptional versatility for lifting, placing, and access tasks across construction, industrial, and infrastructure sites.
Key Specifications
-
Max Lifting Capacity: 4,999 kg
-
Max Working Height: 24.70 m
-
Max Horizontal Reach: 21.40 m
-
Engine: Mercedes OM 934 E4-5, 156 hp (115 kW)
-
Transmission: Hydrostatic drive + 2-speed gearbox
-
Fuel Tank Capacity: 305 L
-
Hydraulic Oil Tank Capacity: 225 L
-
Weight (Unladen): ~ 18,900 kg
-
Dimensions (Stowed):
• Length (to fork): 7.84 m
• Overall length (forks): 9.03 m
• Width (wheels): 2.49 m
• Transport height: 3.05 m -
Ground Clearance (Center): 0.35 m
-
Wheelbase: 3.05 m
-
Turning Radius (Outside Tires): 5.23 m
-
Max Travel Speed: 40 km/h
-
Drawbar Pull: 8,700 daN
-
Tires: 445/65 R22.5 pneumatic
-
Stabilizers: Telescopic duplex
-
Other Features:
• 3-in-1 capability: telehandler, crane, work platform
• E-RECO attachment recognition system
• Frame leveling (± 8°)
• Multiple steering modes (2WD, 4WD, crab)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered on short-term, long-term, and project-based rental contracts
Applications
-
Material handling on construction and infrastructure sites
-
Crane work and elevation tasks in constrained zones
-
Work platform tasks (maintenance, repair, installation)
-
Remote or mixed terrain operations
-
Logistics and heavy lifting in industrial yards
Description
The Manitou MRT 2550 is a high-capacity rotating telehandler that combines the functionality of a telehandler, crane, and work platform in one machine. With four-section boom and full 360° turret rotation, it delivers exceptional versatility for lifting, placing, and access tasks across construction, industrial, and infrastructure sites.
Key Specifications
-
Max Lifting Capacity: 4,999 kg
-
Max Working Height: 24.70 m
-
Max Horizontal Reach: 21.40 m
-
Engine: Mercedes OM 934 E4-5, 156 hp (115 kW)
-
Transmission: Hydrostatic drive + 2-speed gearbox
-
Fuel Tank Capacity: 305 L
-
Hydraulic Oil Tank Capacity: 225 L
-
Weight (Unladen): ~ 18,900 kg
-
Dimensions (Stowed):
• Length (to fork): 7.84 m
• Overall length (forks): 9.03 m
• Width (wheels): 2.49 m
• Transport height: 3.05 m -
Ground Clearance (Center): 0.35 m
-
Wheelbase: 3.05 m
-
Turning Radius (Outside Tires): 5.23 m
-
Max Travel Speed: 40 km/h
-
Drawbar Pull: 8,700 daN
-
Tires: 445/65 R22.5 pneumatic
-
Stabilizers: Telescopic duplex
-
Other Features:
• 3-in-1 capability: telehandler, crane, work platform
• E-RECO attachment recognition system
• Frame leveling (± 8°)
• Multiple steering modes (2WD, 4WD, crab)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 service, logistics, and technical teams
-
Offered on short-term, long-term, and project-based rental contracts
Applications
-
Material handling on construction and infrastructure sites
-
Crane work and elevation tasks in constrained zones
-
Work platform tasks (maintenance, repair, installation)
-
Remote or mixed terrain operations
-
Logistics and heavy lifting in industrial yards
Description
The Manitou MXT 1740 is a powerful and reliable telehandler designed to handle heavy lifting and material placement on demanding job sites. With a high reach, excellent stability, and robust lifting capacity, it provides the versatility needed for construction, infrastructure, and industrial applications.
Key Specifications
-
Maximum Lifting Height: 17.40 m (≈ 57 ft)
-
Maximum Outreach: 13.48 m (≈ 44 ft 3 in)
-
Rated Capacity: 4,000 kg (≈ 8,818 lbs)
-
Capacity at Full Height: ≈ 2,500 kg
-
Engine Power: 70 kW / 92 hp
-
Unladen Weight: 11,275 kg (≈ 24,855 lbs)
-
Transport Dimensions:
• Length: 6.20 m
• Width: 2.38 m
• Height: 2.59 m -
Travel Speed: 28 km/h
-
Hydraulic Flow: ≈ 96 L/min
-
Steering Modes: 2-wheel, 4-wheel, and crab steering
-
Transmission: Hydrostatic with 2 forward / 2 reverse speeds
-
Outriggers: Manual vertical stabilizers
-
Tires: Standard construction profile with optional foam-filled versions
-
Frame Leveling: ± 10°
-
Turning Radius: 3.7 m (inside tires)
-
Other Features:
• Telescopic boom with quick-attach tool system
• ROPS / FOPS-certified cab with enhanced visibility
• Load moment indicator and safety cut-outs
• Heavy-duty axles for rough-terrain performance
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to deployment
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Heavy construction and infrastructure projects
-
Industrial material handling and loading
-
Equipment placement on elevated platforms or roofs
-
Warehousing and logistics operations
-
Utility and maintenance tasks in challenging terrain
Description
The Manitou MXT 1740 is a powerful and reliable telehandler designed to handle heavy lifting and material placement on demanding job sites. With a high reach, excellent stability, and robust lifting capacity, it provides the versatility needed for construction, infrastructure, and industrial applications.
Key Specifications
-
Maximum Lifting Height: 17.40 m (≈ 57 ft)
-
Maximum Outreach: 13.48 m (≈ 44 ft 3 in)
-
Rated Capacity: 4,000 kg (≈ 8,818 lbs)
-
Capacity at Full Height: ≈ 2,500 kg
-
Engine Power: 70 kW / 92 hp
-
Unladen Weight: 11,275 kg (≈ 24,855 lbs)
-
Transport Dimensions:
• Length: 6.20 m
• Width: 2.38 m
• Height: 2.59 m -
Travel Speed: 28 km/h
-
Hydraulic Flow: ≈ 96 L/min
-
Steering Modes: 2-wheel, 4-wheel, and crab steering
-
Transmission: Hydrostatic with 2 forward / 2 reverse speeds
-
Outriggers: Manual vertical stabilizers
-
Tires: Standard construction profile with optional foam-filled versions
-
Frame Leveling: ± 10°
-
Turning Radius: 3.7 m (inside tires)
-
Other Features:
• Telescopic boom with quick-attach tool system
• ROPS / FOPS-certified cab with enhanced visibility
• Load moment indicator and safety cut-outs
• Heavy-duty axles for rough-terrain performance
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified prior to deployment
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Heavy construction and infrastructure projects
-
Industrial material handling and loading
-
Equipment placement on elevated platforms or roofs
-
Warehousing and logistics operations
-
Utility and maintenance tasks in challenging terrain
Description
The D1OS-5 is a heavy-duty, 4-wheel diesel forklift designed for high-capacity load handling in rigorous industrial and warehouse settings. It’s built with durability, stability, and operator comfort in mind—ideal for lifting, stacking, and movement of heavy loads with reliability and performance.
Key Specifications
-
Rated Capacity: 11,000 kg (11 ton)
-
Load Center: 600 mm
-
Mast Lift Height: 4.30 m (approx.)
-
Engine Type: Diesel (high-torque)
-
Travel Speed (with / without load): ~ 29 km/h
-
Lift Speed (loaded / unloaded): ~ 0.375 m/s / ~ 0.430 m/s
-
Turning Radius: ~ 4.04 m
-
Overall Width: ~ 2,350 mm
-
Length to Fork Face: ~ 4,340 mm
-
Height to Top of Overhead Guard: ~ 2,765 mm
-
Weight (Operating): Approx. 18,900 kg
-
Gradeability: ~ 28 % (loaded)
-
Tires / Drive: Pneumatic / 4×2 configuration
-
Additional Features:
• Oil-cooled disc brakes
• Auto-shift transmission (3-speed)
• Pilot-actuated hydraulic controls
• Solid frame with reinforced mast
• Spacious operator forklift cab
Availability & Readiness
-
Units immediately available for rental across Saudi Arabia and GCC
-
Maintained under Dayim’s preventive maintenance regimen
-
Inspected, tested, and certified prior to dispatch
-
Fully supported by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rentals
Applications
-
Heavy-lift operations in factories, warehouses, and ports
-
Loading/unloading of containers, cargo, and bulk material
-
High-volume stacking and storage systems
-
Steel, timber, and heavy equipment handling
-
Industrial logistics across yards, sheds, and production zones
Description
The D1OS-5 is a heavy-duty, 4-wheel diesel forklift designed for high-capacity load handling in rigorous industrial and warehouse settings. It’s built with durability, stability, and operator comfort in mind—ideal for lifting, stacking, and movement of heavy loads with reliability and performance.
Key Specifications
-
Rated Capacity: 11,000 kg (11 ton)
-
Load Center: 600 mm
-
Mast Lift Height: 4.30 m (approx.)
-
Engine Type: Diesel (high-torque)
-
Travel Speed (with / without load): ~ 29 km/h
-
Lift Speed (loaded / unloaded): ~ 0.375 m/s / ~ 0.430 m/s
-
Turning Radius: ~ 4.04 m
-
Overall Width: ~ 2,350 mm
-
Length to Fork Face: ~ 4,340 mm
-
Height to Top of Overhead Guard: ~ 2,765 mm
-
Weight (Operating): Approx. 18,900 kg
-
Gradeability: ~ 28 % (loaded)
-
Tires / Drive: Pneumatic / 4×2 configuration
-
Additional Features:
• Oil-cooled disc brakes
• Auto-shift transmission (3-speed)
• Pilot-actuated hydraulic controls
• Solid frame with reinforced mast
• Spacious operator forklift cab
Availability & Readiness
-
Units immediately available for rental across Saudi Arabia and GCC
-
Maintained under Dayim’s preventive maintenance regimen
-
Inspected, tested, and certified prior to dispatch
-
Fully supported by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rentals
Applications
-
Heavy-lift operations in factories, warehouses, and ports
-
Loading/unloading of containers, cargo, and bulk material
-
High-volume stacking and storage systems
-
Steel, timber, and heavy equipment handling
-
Industrial logistics across yards, sheds, and production zones
Description
The Doosan D50C-5 is a powerful and durable diesel forklift built for heavy-duty industrial applications. Known for its reliability, stability, and operator comfort, it delivers excellent performance for material handling, loading, and logistics operations even in harsh environments.
Key Specifications
-
Rated Capacity: 5,000 kg (≈ 11,000 lb)
-
Load Center: 600 mm
-
Engine: Doosan DB-58, 91 hp (68 kW) diesel
-
Transmission: Fully automatic powershift
-
Travel Speed: 25 km/h (≈ 16 mph)
-
Lift Speed (Loaded / Unloaded): 0.45 m/s / 0.50 m/s
-
Gradeability (Loaded): 28 %
-
Mast Lift Height: 4.3 m (standard two-stage configuration)
-
Turning Radius: 2.92 m
-
Overall Length (to fork face): 3.23 m
-
Overall Width: 1.45 m
-
Overhead Guard Height: 2.24 m
-
Weight (Unladen): ~ 8,100 kg
-
Tires: Pneumatic (front drive / rear steer)
-
Brake System: Oil-cooled disc brakes
-
Hydraulic System Flow: 90 L/min
-
Features:
• Heavy-duty counterbalance chassis
• Reliable, low-emission diesel engine
• Reinforced mast for maximum visibility and strength
• Ergonomic operator cabin with suspension seat
• Easy maintenance access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Heavy material handling in warehouses and factories
-
Ports, terminals, and logistics operations
-
Construction and industrial supply yards
-
Steel, timber, and heavy manufacturing industries
-
Equipment and bulk material loading/unloading
Description
The Doosan D50C-5 is a powerful and durable diesel forklift built for heavy-duty industrial applications. Known for its reliability, stability, and operator comfort, it delivers excellent performance for material handling, loading, and logistics operations even in harsh environments.
Key Specifications
-
Rated Capacity: 5,000 kg (≈ 11,000 lb)
-
Load Center: 600 mm
-
Engine: Doosan DB-58, 91 hp (68 kW) diesel
-
Transmission: Fully automatic powershift
-
Travel Speed: 25 km/h (≈ 16 mph)
-
Lift Speed (Loaded / Unloaded): 0.45 m/s / 0.50 m/s
-
Gradeability (Loaded): 28 %
-
Mast Lift Height: 4.3 m (standard two-stage configuration)
-
Turning Radius: 2.92 m
-
Overall Length (to fork face): 3.23 m
-
Overall Width: 1.45 m
-
Overhead Guard Height: 2.24 m
-
Weight (Unladen): ~ 8,100 kg
-
Tires: Pneumatic (front drive / rear steer)
-
Brake System: Oil-cooled disc brakes
-
Hydraulic System Flow: 90 L/min
-
Features:
• Heavy-duty counterbalance chassis
• Reliable, low-emission diesel engine
• Reinforced mast for maximum visibility and strength
• Ergonomic operator cabin with suspension seat
• Easy maintenance access panels
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Heavy material handling in warehouses and factories
-
Ports, terminals, and logistics operations
-
Construction and industrial supply yards
-
Steel, timber, and heavy manufacturing industries
-
Equipment and bulk material loading/unloading
Description
The Combilift C5000 XL is a versatile, multi-directional forklift that combines counterbalance, side-loader, and narrow aisle capabilities in a single machine. With a wide cab for operator comfort and flexible handling modes, it is ideal for handling long, bulky loads in tight aisles, warehouses, and industrial settings.
Key Specifications
-
Rated Capacity: 5,000 kg at 600 mm load center
-
Unladen Weight: ~ 6,800 kg
-
Engine Types Available: Diesel (Kubota V2403T), LPG
-
Standard Lift Height: 4,040 mm
-
Maximum Lift Height (mast raised): 5,005 mm
-
Closed Mast Height: 2,990 mm
-
Overall Length: 2,500 mm
-
Overall Width: 2,235 mm
-
Height Over Cab / Overhead Guard: 2,590 mm
-
Mast Travel (stroke): 1,340 mm
-
Ground Clearance (under mast): 280 mm
-
Ground Clearance at Wheelbase Center: 270 mm
-
Wheelbase: 2,070 mm
-
Front Track Width: 1,995 mm
-
Load Center Distance: 600 mm
-
Approach / Departure Angles: 45° / 45°
-
Ramp / Grade Angle Capability: 29°
-
Forward Tilt / Backward Tilt: 3° / 5°
-
Turning Radius (min. outside): 2,490 mm
-
Platform / Deck Height: 680 mm
-
Platform Length: 1,200 mm
-
Top Speed: 15 km/h
-
Gradeability: 15 %
Availability & Readiness
-
Units are ready to hire across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Handling long or heavy loads in narrow aisles
-
Steel, timber, pipe, and structural material movement
-
Warehouses where multi-directional access is needed
-
Industrial production flow lines
-
Loading/unloading in confined or constrained spaces
-
Mixed cargo operations requiring flexible orientation
Description
The Combilift C5000 XL is a versatile, multi-directional forklift that combines counterbalance, side-loader, and narrow aisle capabilities in a single machine. With a wide cab for operator comfort and flexible handling modes, it is ideal for handling long, bulky loads in tight aisles, warehouses, and industrial settings.
Key Specifications
-
Rated Capacity: 5,000 kg at 600 mm load center
-
Unladen Weight: ~ 6,800 kg
-
Engine Types Available: Diesel (Kubota V2403T), LPG
-
Standard Lift Height: 4,040 mm
-
Maximum Lift Height (mast raised): 5,005 mm
-
Closed Mast Height: 2,990 mm
-
Overall Length: 2,500 mm
-
Overall Width: 2,235 mm
-
Height Over Cab / Overhead Guard: 2,590 mm
-
Mast Travel (stroke): 1,340 mm
-
Ground Clearance (under mast): 280 mm
-
Ground Clearance at Wheelbase Center: 270 mm
-
Wheelbase: 2,070 mm
-
Front Track Width: 1,995 mm
-
Load Center Distance: 600 mm
-
Approach / Departure Angles: 45° / 45°
-
Ramp / Grade Angle Capability: 29°
-
Forward Tilt / Backward Tilt: 3° / 5°
-
Turning Radius (min. outside): 2,490 mm
-
Platform / Deck Height: 680 mm
-
Platform Length: 1,200 mm
-
Top Speed: 15 km/h
-
Gradeability: 15 %
Availability & Readiness
-
Units are ready to hire across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rental contracts
Applications
-
Handling long or heavy loads in narrow aisles
-
Steel, timber, pipe, and structural material movement
-
Warehouses where multi-directional access is needed
-
Industrial production flow lines
-
Loading/unloading in confined or constrained spaces
-
Mixed cargo operations requiring flexible orientation
Description
The Doosan D70S-5 is a robust pneumatic-tire diesel forklift built for high-capacity industrial and warehouse operations. Designed to handle heavy loads with stability, power, and operator comfort, it is ideal for demanding material handling tasks in yards, ports, and manufacturing facilities.
Key Specifications
-
Rated Capacity: 7,000 kg
-
Load Center: 600 mm
-
Engine: DB58S Diesel
-
Rated Power: 100 hp (≈ 75 kW)
-
Lifting Speed (Loaded / Unloaded): ~ 0.42 / 0.45 m/s
-
Lowering Speed (Loaded / Unloaded): ~ 0.46 / 0.49 m/s
-
Travel Speed (Empty / Loaded): ~ 26.5 / 14 km/h
-
Max Gradeability: ~ 30 %
-
Turning Radius: ~ 3.38 m
-
Width: ~ 2,108 mm
-
Height (Overall Mast Lowered): ~ 2,500 mm
-
Operating Weight: ~ 9,800 kg
-
Tires: Pneumatic
-
Transmission Type: Multistage, automatic
-
Mast Type: Standard 3-stage mast (lifting height up to ~ 5 m)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Available for short-term, long-term, or project-based rental contracts
Applications
-
Heavy-duty warehouse and yard operations
-
Port and terminal cargo handling
-
Steel, timber, and structural material handling
-
Manufacturing, fabrication, and logistics centers
-
Loading/unloading of large containers and equipment
Description
The Doosan D70S-5 is a robust pneumatic-tire diesel forklift built for high-capacity industrial and warehouse operations. Designed to handle heavy loads with stability, power, and operator comfort, it is ideal for demanding material handling tasks in yards, ports, and manufacturing facilities.
Key Specifications
-
Rated Capacity: 7,000 kg
-
Load Center: 600 mm
-
Engine: DB58S Diesel
-
Rated Power: 100 hp (≈ 75 kW)
-
Lifting Speed (Loaded / Unloaded): ~ 0.42 / 0.45 m/s
-
Lowering Speed (Loaded / Unloaded): ~ 0.46 / 0.49 m/s
-
Travel Speed (Empty / Loaded): ~ 26.5 / 14 km/h
-
Max Gradeability: ~ 30 %
-
Turning Radius: ~ 3.38 m
-
Width: ~ 2,108 mm
-
Height (Overall Mast Lowered): ~ 2,500 mm
-
Operating Weight: ~ 9,800 kg
-
Tires: Pneumatic
-
Transmission Type: Multistage, automatic
-
Mast Type: Standard 3-stage mast (lifting height up to ~ 5 m)
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported by Dayim’s 24/7 technical, service, and logistics teams
-
Available for short-term, long-term, or project-based rental contracts
Applications
-
Heavy-duty warehouse and yard operations
-
Port and terminal cargo handling
-
Steel, timber, and structural material handling
-
Manufacturing, fabrication, and logistics centers
-
Loading/unloading of large containers and equipment
