Product Details
Description

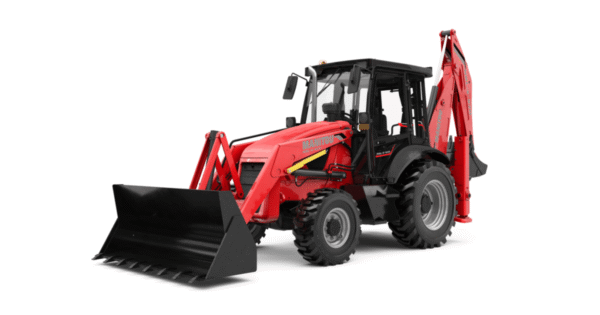

The Manitou MBL-X 920 is a robust, diesel-powered 4WD backhoe loader designed for intensive construction and excavation tasks. Engineered for high uptime, with a reinforced structure and optional features like air conditioning and multi-purpose buckets, it delivers strong performance, durability, and versatility across site operations.
Key Specifications
-
Engine Power: 68.5 kW (≈ 92 hp) @ 2,200 rpm
-
Engine Model: Perkins 1104C-44T, turbocharged, water-cooled
-
Operating Weight (Unladen): 7,620 kg
-
Overall Length: 7,330 mm
-
Overall Width: 2,330 mm
-
Overall Height: 3,790 mm
-
Ground Clearance: 280 mm
-
Wheelbase (2WD / 4WD): 2,185 / 2,130 mm
-
Steering / Turning Radius: Over tyres, braked 3,850 mm / unbraked 4,200 mm
-
Transmission: Carraro, 4 forward / 4 reverse gears
-
Drive Speeds: 5.40 / 8.60 km/h (1st / 2nd); 19.9 / 40.0 km/h (3rd / 4th)
-
Hydraulic Flow: 142 L/min / Relief Pressure 225 bar
-
Tank Capacities:
• Fuel: 145 L
• Hydraulic oil: 90 L
• Cooling liquid: 16 L
• Engine oil: 9.1 L
• Transmission oil: 17.5 L
• Rear axle oil: 17.5 L -
Loader:
• Bucket capacity: ~ 1.0 m³
• Backhoe bucket capacity: ~ 0.24 m³ -
Backhoe Performance:
• Max Dig Depth: 4,741 mm
• Max Reach at Ground Level: 5,730 mm
• Max Loading Height: 3,871 mm
• Dipper (arm) breakout: 4,336 kgf
• Bucket breakout: 5,810 kgf
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified prior to dispatch
-
Supported 24/7 by Dayim’s technical, logistics, and service teams
-
Available for short-term, long-term, and project-based rental contracts
Applications
-
Earthworks, trenching, and excavation
-
Material loading and site preparation
-
Road, pipeline, and infrastructure works
-
Utility installation and backfilling
-
Construction and building foundation works
Description
The Case 570T is a versatile, heavy-duty backhoe loader designed for reliable performance across construction, infrastructure, and utility projects. Built with a robust S-shaped boom, powerful hydraulic system, and efficient FPT engine, it delivers superior digging, lifting, and loading capabilities while maintaining operator comfort and fuel efficiency.
Key Specifications
-
Engine: FPT Industrial S8000, 4-cylinder turbocharged diesel
-
Gross Power: 86 hp (64 kW) @ 2,200 rpm
-
Max Torque: 402 Nm @ 1,300 rpm
-
Transmission: 4-speed synchromesh with forward/reverse shuttle
-
Drive Type: 2WD or 4WD options
-
Hydraulic System Flow: 123 L/min @ 2,200 rpm
-
Operating Weight: 8,040 kg (≈ 17,730 lbs)
-
Fuel Tank Capacity: 128 L
-
Hydraulic Oil Capacity: 142 L
-
Travel Speed (4WD): 36 km/h
-
Turning Radius (without brake): 8.1 m
-
Front Loader:
• Max Dump Height: 2.74 m (9 ft)
• Max Lifting Capacity: 3,420 kg
• Breakout Force: 6,323 kgf
• Bucket Width: 2.35 m
• Bucket Capacity: 1.0 m³ -
Backhoe:
• Max Dig Depth: 4.40 m (14 ft 5 in)
• Max Reach (Ground Level): 5.85 m (19 ft 2 in)
• Max Dump Height: 3.45 m (11 ft 4 in)
• Bucket Rotation: 204°
• Bucket Capacity: 0.2 m³ – 0.3 m³ -
Brakes: Oil-immersed multidisc
-
Tires: Front 11L-16 PR / Rear 16.9 × 28 PR
-
Cab: ROPS/FOPS compliant operator cabin with adjustable suspension seat
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified prior to deployment
-
Supported by Dayim’s 24/7 logistics, technical, and service teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure site operations
-
Utility trenching and excavation
-
Roadworks, grading, and backfilling
-
Pipe laying, loading, and material handling
-
Landscaping and site preparation
-
Industrial and maintenance yard operations
Description
The Case 570T is a versatile, heavy-duty backhoe loader designed for reliable performance across construction, infrastructure, and utility projects. Built with a robust S-shaped boom, powerful hydraulic system, and efficient FPT engine, it delivers superior digging, lifting, and loading capabilities while maintaining operator comfort and fuel efficiency.
Key Specifications
-
Engine: FPT Industrial S8000, 4-cylinder turbocharged diesel
-
Gross Power: 86 hp (64 kW) @ 2,200 rpm
-
Max Torque: 402 Nm @ 1,300 rpm
-
Transmission: 4-speed synchromesh with forward/reverse shuttle
-
Drive Type: 2WD or 4WD options
-
Hydraulic System Flow: 123 L/min @ 2,200 rpm
-
Operating Weight: 8,040 kg (≈ 17,730 lbs)
-
Fuel Tank Capacity: 128 L
-
Hydraulic Oil Capacity: 142 L
-
Travel Speed (4WD): 36 km/h
-
Turning Radius (without brake): 8.1 m
-
Front Loader:
• Max Dump Height: 2.74 m (9 ft)
• Max Lifting Capacity: 3,420 kg
• Breakout Force: 6,323 kgf
• Bucket Width: 2.35 m
• Bucket Capacity: 1.0 m³ -
Backhoe:
• Max Dig Depth: 4.40 m (14 ft 5 in)
• Max Reach (Ground Level): 5.85 m (19 ft 2 in)
• Max Dump Height: 3.45 m (11 ft 4 in)
• Bucket Rotation: 204°
• Bucket Capacity: 0.2 m³ – 0.3 m³ -
Brakes: Oil-immersed multidisc
-
Tires: Front 11L-16 PR / Rear 16.9 × 28 PR
-
Cab: ROPS/FOPS compliant operator cabin with adjustable suspension seat
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Fully inspected, tested, and certified prior to deployment
-
Supported by Dayim’s 24/7 logistics, technical, and service teams
-
Offered for short-term, long-term, and project-based rental contracts
Applications
-
Construction and infrastructure site operations
-
Utility trenching and excavation
-
Roadworks, grading, and backfilling
-
Pipe laying, loading, and material handling
-
Landscaping and site preparation
-
Industrial and maintenance yard operations
Description
The JCB 3CX-4WD is a rugged, 4-wheel drive backhoe loader designed for heavy-duty construction and utility applications. Equipped with solid hydraulics, strong breakout forces, and excellent mobility across challenging terrain, it offers balanced performance for digging, loading, and site work in demanding environments.
Key Specifications (approximate / typical)
-
Engine Power: ~ 92 hp
-
Operating Weight: ~ 7,000 kg
-
Loader Bucket Capacity: ~ 1.0 m³
-
Loader Lift Capacity (Full Height): ~ 3,000 kg
-
Loader Breakout Force: ~ 14,000 lbf
-
Backhoe Dig Depth: ~ 4.4 m
-
Backhoe Reach (Ground Level): ~ 5.8 m
-
Backhoe Bucket Rotation: ~ 204°
-
Maximum Reach (Over Front): ~ 3.4 m
-
Tires / Drive: 4WD with differential / planetary reduction
-
Transmission: 4 forward / 4 reverse synchronized shuttle
-
Hydraulic System: Open center with dual gear pumps
-
Fuel Tank Capacity: ~ 160 L
-
Cab / Operator Station: ROPS / FOPS protective cab
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before each dispatch
-
Fully supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered on short-term, long-term, and project-based rental contracts
Applications
-
Site earthworks, excavating, and trenching
-
Material handling, loading, and backfilling
-
Road, utility, and infrastructure construction
-
Site preparation and cleanup
-
General-purpose construction and maintenance
Description
The JCB 3CX-4WD is a rugged, 4-wheel drive backhoe loader designed for heavy-duty construction and utility applications. Equipped with solid hydraulics, strong breakout forces, and excellent mobility across challenging terrain, it offers balanced performance for digging, loading, and site work in demanding environments.
Key Specifications (approximate / typical)
-
Engine Power: ~ 92 hp
-
Operating Weight: ~ 7,000 kg
-
Loader Bucket Capacity: ~ 1.0 m³
-
Loader Lift Capacity (Full Height): ~ 3,000 kg
-
Loader Breakout Force: ~ 14,000 lbf
-
Backhoe Dig Depth: ~ 4.4 m
-
Backhoe Reach (Ground Level): ~ 5.8 m
-
Backhoe Bucket Rotation: ~ 204°
-
Maximum Reach (Over Front): ~ 3.4 m
-
Tires / Drive: 4WD with differential / planetary reduction
-
Transmission: 4 forward / 4 reverse synchronized shuttle
-
Hydraulic System: Open center with dual gear pumps
-
Fuel Tank Capacity: ~ 160 L
-
Cab / Operator Station: ROPS / FOPS protective cab
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before each dispatch
-
Fully supported by Dayim’s 24/7 technical, logistics, and service teams
-
Offered on short-term, long-term, and project-based rental contracts
Applications
-
Site earthworks, excavating, and trenching
-
Material handling, loading, and backfilling
-
Road, utility, and infrastructure construction
-
Site preparation and cleanup
-
General-purpose construction and maintenance
Description
The Manitou 1340R is a compact skid steer loader engineered for high maneuverability and strong performance in tight job sites. With robust breakout forces, compact dimensions, and efficient hydraulic systems, it’s ideal for construction, agriculture, landscaping, and utility works where space is limited.
Key Specifications
-
Rated Operating Capacity: 612 kg
-
Unladen Weight: 2,200 kg
-
Tipping / Breakout Capacity: 1,224 kg
-
Engine Power: 36 kW (49 hp)
-
Engine Model: Yanmar 4TNV88
-
Travel Speed (unladen): 10.7 km/h
-
Wheelbase: 923 mm
-
Overall Length (with bucket): 2,952 mm
-
Overall Width: 1,346 mm
-
Overall Height (ROPS): 1,826 mm
-
Dump Reach (full height): 528 mm
-
Dump Height: 2,197 mm
-
Ground Clearance: 211 mm
-
Hydraulic System:
• Standard auxiliary pressure: 190 bar
• Option for high flow: 63.4 L/min -
Fuel Tank Capacity: 47 L
-
Hydraulic Tank Capacity: 30.3 L
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported 24/7 by Dayim’s service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based contracts
Applications
-
Earthmoving, loading, and material handling
-
Landscaping, site preparation, and grading
-
Utility and infrastructure works in confined areas
-
Demolition, debris clearing, and site cleanup
-
Agriculture and farm operations
-
Roadside and maintenance tasks
Description
The Manitou 1340R is a compact skid steer loader engineered for high maneuverability and strong performance in tight job sites. With robust breakout forces, compact dimensions, and efficient hydraulic systems, it’s ideal for construction, agriculture, landscaping, and utility works where space is limited.
Key Specifications
-
Rated Operating Capacity: 612 kg
-
Unladen Weight: 2,200 kg
-
Tipping / Breakout Capacity: 1,224 kg
-
Engine Power: 36 kW (49 hp)
-
Engine Model: Yanmar 4TNV88
-
Travel Speed (unladen): 10.7 km/h
-
Wheelbase: 923 mm
-
Overall Length (with bucket): 2,952 mm
-
Overall Width: 1,346 mm
-
Overall Height (ROPS): 1,826 mm
-
Dump Reach (full height): 528 mm
-
Dump Height: 2,197 mm
-
Ground Clearance: 211 mm
-
Hydraulic System:
• Standard auxiliary pressure: 190 bar
• Option for high flow: 63.4 L/min -
Fuel Tank Capacity: 47 L
-
Hydraulic Tank Capacity: 30.3 L
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported 24/7 by Dayim’s service, logistics, and technical teams
-
Offered for short-term, long-term, and project-based contracts
Applications
-
Earthmoving, loading, and material handling
-
Landscaping, site preparation, and grading
-
Utility and infrastructure works in confined areas
-
Demolition, debris clearing, and site cleanup
-
Agriculture and farm operations
-
Roadside and maintenance tasks
