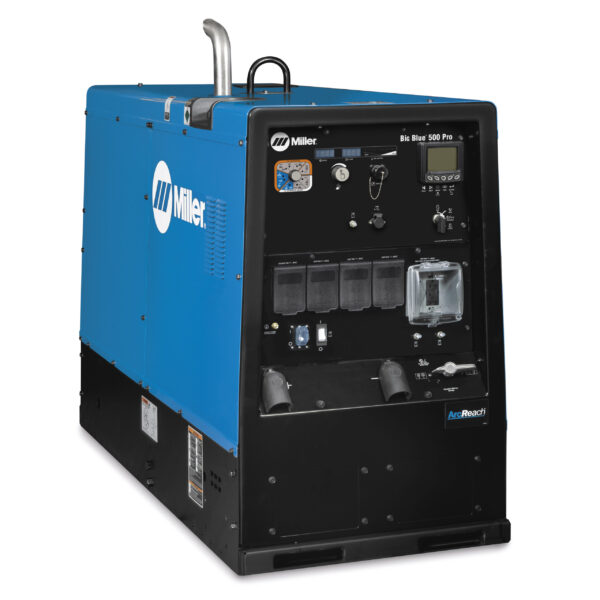

500AMP BigBlue Engine-Driven Welder
Technical Details:
Welder ARC/500 AMP/Diesel Driven
Stick Welding
5500 Peak (Watt)
500 Amps
Product Details
Description
The Big Blue 500 is a rugged, industrial diesel-powered welder and auxiliary power generator designed for field fabrication, MRO, and harsh environments. It combines high welding capacity with generator output, robust construction, and efficient controls—ideal for mobile sites and heavy-duty repair tasks.
Key Specifications
-
Welding Output Range: 55 A to 500 A (DC Stick / DC TIG)
-
Generator Output (Auxiliary):
• Peak: ~ 5,500 W
• Continuous: ~ 4,000 W -
Open-Circuit Voltage (OCV): ~ 95 V
-
Engine Options: Kubota V2403 or Deutz variants
-
Fuel Tank Capacity: ~ 95 L
-
Sound Levels (at 7 m):
• Idle: ~ 65–66 dB(A)
• Weld mode: ~ 74 dB(A) -
Net (Dry) Weight: ~ 780–820 kg
-
Dimensions (approx.):
• Height: ~ 1,168 mm
• Width: ~ 724 mm
• Length: ~ 1,765 mm -
Features & Controls:
• Electronic display for fuel, engine hours, temperature, etc.
• Automatic idle mode
• Protective enclosure for durability
• Auxiliary outlets for tools and site power
• Remote sensing switch, overload protection, and diagnostics
Availability & Readiness
-
Units available for immediate hire across Saudi Arabia and the GCC
-
Maintained under Dayim’s preventive maintenance program
-
Inspected, tested, and certified before dispatch
-
Supported 24/7 by Dayim’s technical, service, and logistics teams
-
Offered on short-term, long-term, or project-based rental contracts
Applications
-
Field welding and repair operations
-
Mobile fabrication and structural work
-
Maintenance, repair, and overhaul (MRO) in remote areas
-
Auxiliary site power for lights, tools, and equipment
-
Construction, oil & gas, mining, and pipeline projects
Vantage 500 Portable Welder / Generator
Description
The Vantage 500 is a heavy-duty, engine-driven welding and power generation unit, built to provide strong multi-process welding capabilities along with reliable AC auxiliary power. It’s ideal for construction, repair, field fabrication, and remote worksites where both welding and site power are needed.
Key Specifications
-
Weld Output (Rated): 500 A / 40 V at 100% duty cycle
-
Output Range: 30 – 575 A DC
-
AC Generator Power:
• 3-phase: 20 kW continuous
• 1-phase: 12 kW continuous -
Engine: 4-cylinder diesel (1800 rpm)
-
Fuel Tank: 95 L
-
Run Time:
• ~13 hours at full welding output
• 31–38 hours at idle -
Weight: ~ 695 kg
-
Dimensions (H × W × D): 1,067 × 800 × 1,603 mm
-
Processes Supported: Stick (SMAW), MIG, TIG, Flux-Cored, Arc Gouging
-
Features:
• Stainless steel canopy for durability
• Simple control panel with digital meters
• Jobsite AC power usable simultaneously while welding
• High generator power compared to competitors
• Low-noise design
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under your preventive maintenance program
-
Inspected, tested, and certified before each dispatch
-
Supported 24/7 with technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rentals
Applications
-
Construction and structural welding onsite
-
Pipeline, oil & gas, and refinery maintenance
-
Remote and off-grid welding projects
-
Emergency and repair services
-
Hybrid sites needing weld + general power
-
Heavy fabrication in outdoor or industrial environments
Vantage 500 Portable Welder / Generator
Description
The Vantage 500 is a heavy-duty, engine-driven welding and power generation unit, built to provide strong multi-process welding capabilities along with reliable AC auxiliary power. It’s ideal for construction, repair, field fabrication, and remote worksites where both welding and site power are needed.
Key Specifications
-
Weld Output (Rated): 500 A / 40 V at 100% duty cycle
-
Output Range: 30 – 575 A DC
-
AC Generator Power:
• 3-phase: 20 kW continuous
• 1-phase: 12 kW continuous -
Engine: 4-cylinder diesel (1800 rpm)
-
Fuel Tank: 95 L
-
Run Time:
• ~13 hours at full welding output
• 31–38 hours at idle -
Weight: ~ 695 kg
-
Dimensions (H × W × D): 1,067 × 800 × 1,603 mm
-
Processes Supported: Stick (SMAW), MIG, TIG, Flux-Cored, Arc Gouging
-
Features:
• Stainless steel canopy for durability
• Simple control panel with digital meters
• Jobsite AC power usable simultaneously while welding
• High generator power compared to competitors
• Low-noise design
Availability & Readiness
-
Units available for immediate rental across Saudi Arabia and the GCC
-
Maintained under your preventive maintenance program
-
Inspected, tested, and certified before each dispatch
-
Supported 24/7 with technical, service, and logistics teams
-
Offered for short-term, long-term, or project-based rentals
Applications
-
Construction and structural welding onsite
-
Pipeline, oil & gas, and refinery maintenance
-
Remote and off-grid welding projects
-
Emergency and repair services
-
Hybrid sites needing weld + general power
-
Heavy fabrication in outdoor or industrial environments
